Asus Xonar Essence STX/A Инструкция по эксплуатации онлайн
Содержание

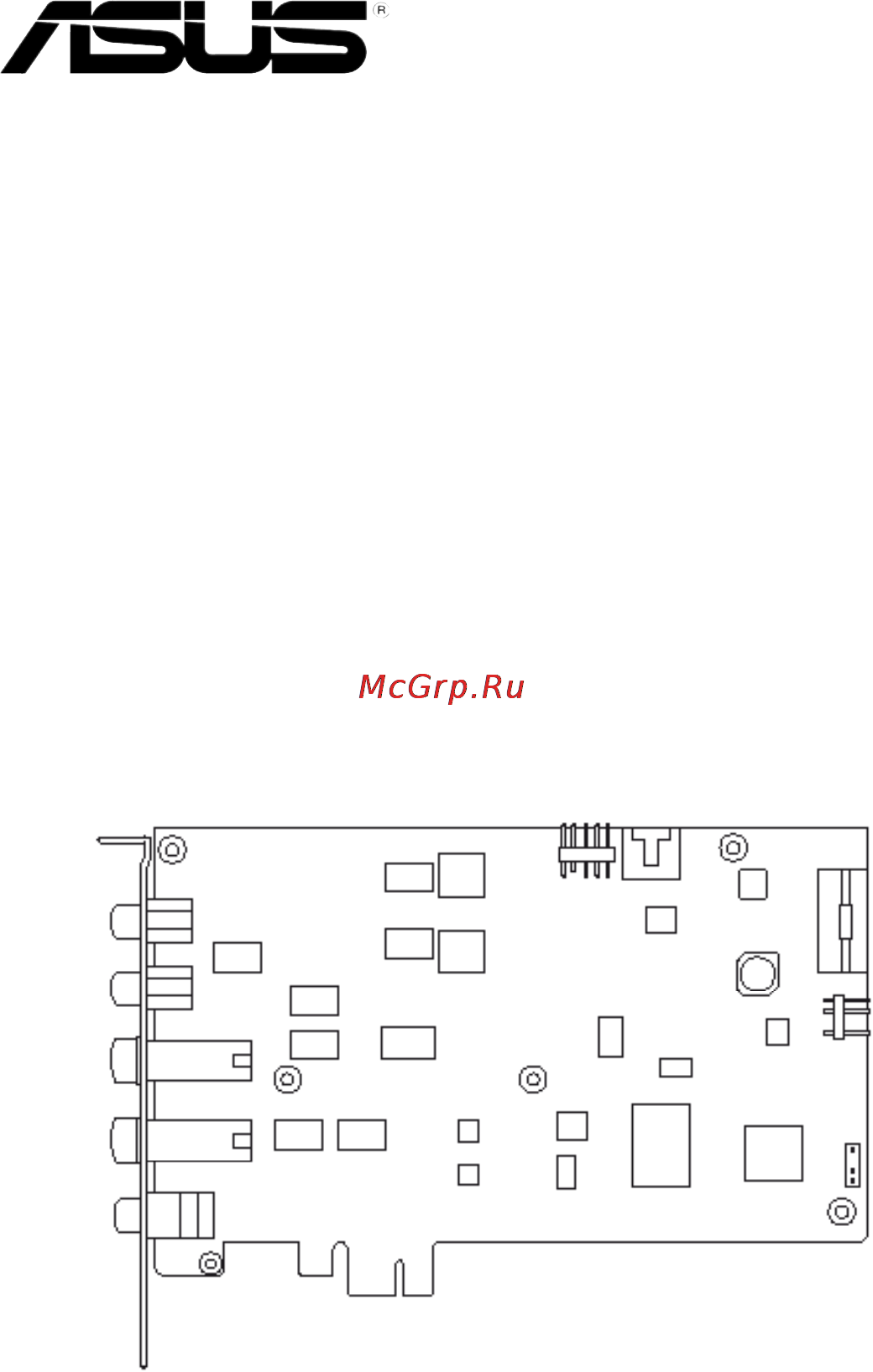

- User manual 1
- Revised edition v2 october 2012 2
- Contents 3
- Australia statement notice 4
- Canadian department of communications statement 4
- Federal communications commission statement 4
- Notices 4
- License 5
- Safety information 5
- Trademarks 5
- Introduction 6
- Package contents 6
- System requirements 6
- Asus xonar essence stx 7
- Continued on the next page 7
- Specifications summary 7
- Asus xonar essence stx 8
- Specifications are subject to change without notice 8
- Asus xonar essence stx 9
- Connect the left audio cable white from your 2 2 channel speakers to this port for multi channel speaker systems connects to the front left in port on the powered speakers 9
- Connect the right audio cable red from your 2 2 channel speakers to this port for multi channel speaker systems connects to the front right in port on the powered speakers 9
- Connect your external pc microphone to this port for voice input built in high quality microphone pre amplifier 9
- Connect your headphones to this port 9
- Note do not connect your speakers to the headphone out port the possible high driving power may cause damage to your speakers 9
- To prevent damage to your headphone before the connection adjust the headphone impedance settings in the xonar essence stx audio center to match your headphone impedance 9
- Xonar essence stx card layout 9
- Installing the hardware 11
- Preparing your computer 11
- Installing the xonar essence stx card 12
- Connect the audio output header from the tv tuner card to the aux in header 13
- Connecting to a tv tuner card 13
- If you have a traditional pci or pci express tv tuner card on your pc you may need to connect it to the xonar essence stx card to send the tuner card s sound to your pc speakers 13
- Of the xonar essence stx card 13
- Secure the pci pci express tv tuner card and screw it into the back panel 13
- Installing software 14
- Installing the card driver 14
- Asus xonar essence stx 15
- Connect your decoder s s pdif in port to the optical adapter with the toslink optical cable 15
- Connecting digital speaker systems home theater 15
- Connecting speakers and peripherals 15
- Plug the optical toslink adapter into the s pdif out combo connector 15
- The xonar essence stx supports dolby digital live technology which transcodes any audio including games and music into industry standard dolby digital surround bit streams this makes playback through your home theater system possible creating an immersive and impressive cinema surround sound experience a single digital cable connection can carry high quality dolby digital audio from any of your pc audio sources to any digital speakers or av receivers with dolby digital 5 decoding capabilities 15
- You can also use a coaxial cable for a s pdif connection just plug the coaxial rca male connector to the s pdif out combo jack and connect the other end into the coaxial s pdif input on your decoder 15
- Connecting stereo headphones 16
- Asus xonar essence stx 17
- Connecting 2 2 channel speakers 17
- Speakers 2 speakers 17
- The left right front out ports have a built in high quality amplifier to drive headphones connect the 2 2 speaker set s 3 mm plug to the bundled rca to 3 mm y cable and then connect the left right ends to the front left right out ports on the xonar essence stx card 17
- Asus xonar essence stx 18
- Connect the headphone s 3 mm plug to the bundled rca to 3 mm y cable and then connect the left right ends to the to front left right out ports on the xonar essence stx card 18
- Connect your external pc microphone to this port by using the bundled 6 mm to 3 mm adapter for voice communication recording or karaoke 18
- Connecting microphone 18
- Connecting line in audio sources 19
- Xonar audio center 20
- Xonar audio center gui 20
- Main setting 22
- Sample rate 22
- The sample rate determines the number of audio samples per second that the digital to analog converters dac and s pdif digital interface will output the xonar essence stx card can support sample rates up to 192khz 44 k 48k 96k 192khz usually audio cds and mp3 files are 44 khz dvd video uses 48khz dvd audio or other hd media may contain 96khz or 192khz high definition audio content please select the corresponding sample rate for your playback sources to get the best audio fidelity even if your setting differs from the audio source s sample rate the xonar essence stx engine will do super high fidelity sample rate conversion with a double floating point filter which can reduce total harmonic distortion thd n by 140db 22
- Analog out mode 23
- Asus xonar essence stx 24
- Click this check box to enable s pdif output 24
- Dolby digital live real time 5 ch encoding 24
- Pcm pulse code modulation which is a typical raw audio data format 24
- Spdif out ddl 24
- This advanced setting will automatically upmix stereo 2ch content to 5 channel surround with dolby pro logic ii when using dolby digital live output 24
- This pull down menu allows you to select one of the following four formats 24
- Xonar essence stx is capable of outputting dolby digital live which is a real time encoder that transcodes any audio including games and music into industry standard dolby digital bit streams on the fly this is ideal for playback through a home theater system creating an impressive cinema surround sound experience it enables a single digital connection to carry high quality dolby digital surround audio from your pc to digital speakers and av receivers 24
- Audio channels for vista only 25
- 7 virtual speaker shifter 26
- Asus xonar essence stx 26
- Click this check box to enable the 7 virtual speaker shifter clicking the text bar will switch the right window to the speaker shifter page for manual adjustments note the setting will remain when a different analog output is selected 26
- Click to increase volume move speakers closer click to decrease volume move speakers further away 26
- Expanding upmixing audio to 7 channel surround sound 26
- Make all speakers except subwoofer rotate clockwise 26
- Make all speakers except subwoofer rotate counter clockwise 26
- Manually drag and rotate all speakers except subwoofer 26
- Reset all speaker shifter settings to the defaults 26
- Shiftable virtual speaker positioning allows you to adjust the best sound field easily without moving physical speakers and wires 26
- The 7 virtual speaker shifter has the following major features 26
- This is the default mode that allows you to manually drag each speaker or the listener with your mouse 26
- Virtualizing 7 surround sound over any set of speakers 26
- You can drag each speaker or listener to a different relative position virtually using only your mouse the xonar essence stx card will process it and virtualize each speaker position in real time the subwoofer has no directional sounds and hence can be moved only closer or further away 26
- Asus xonar essence stx 27
- Click this check box to enable dolby pro logic iix clicking the text bar will switch the right window to the pro logic iix page for manual adjustments 27
- Dolby pro logic iix 27
- Dolby pro logic iix is a 7 surround upmixing technology and is widely used in home theater systems tvs game consoles and car audio systems it can expand stereo audio such as mp3 cd and tv programs into immersive 5 or 7 channel surround 27
- Reset all settings to the defaults 27
- The dimension parameter fades sounds to the front or rear of the listener 27
- This parameter is used to set the spread of the center mainly for the vocal signals of songs and music drag the scroll bar to the left to centralize the vocal signal drag to the right side to widen the vocal sound range 27
- Asus xonar essence stx 28
- Click this check box to enable dolby headphone clicking the text bar will switch the right window to dolby headphone page for manual adjusting note 7 virtual speaker shifter and dolby pro logic iix can be selected only when dolby headphone is enabled 28
- Dh1 reference room small acoustically damped room 28
- Dh2 livelier room more acoustically live than dh1 28
- Dh3 larger room larger room than dh1 more distant and diffused effect 28
- Dolby headphone 28
- Dolby headphone creates a stunning multi channel surround experience over ordinary stereo headphones for playing 3d games watching 5 dvd movies and listening to music dolby headphone produces surround sound cues so realistic that you will believe you are listening over speakers in a well controlled studio dolby headphone can also improve listening comfort and reduce listener fatigue from long listening over headphones 28
- Dolby headphone dh provides three room filters that may be used with any type of audio they differ in the sense of the spatial dimension they impart 28
- Asus xonar essence stx 29
- Click this check box to enable dolby virtual speaker clicking the text bar will switch the right window to a dolby virtual speaker page for manual adjusting 29
- Dolby virtual speaker 29
- Dolby virtual speaker provides two modes of virtualization the first is reference mode which virtualizes the missing speakers as in the following picture 29
- Dolby virtual speaker technology simulates a 5 speaker surround sound listening environment from as few as two speakers dolby virtual speaker also creates a wider two channel environment during playback of stereo cds and mp3 content and when combined with dolby pro logi 29
- Ii processing delivers a virtual 5 channel surround listening experience from any high quality stereo source 29
- Wide mode virtualizes the necessary speakers and enhances the surround experience as in the following picture 29
- Dolby and dts technologies 30
- Mixer volume 30
- Playback volume 30
- The mixer page is designed to control the volume for playback and recording on the xonar essence stx in addition the xonar essence stx also provides a high quality digital monitoring function for hearing the recorded audio from the speakers you can also process the input signals with all playback sound effects such as 30
- Recording monitoring volume 31
- Asus xonar essence stx 33
- Clicking this button will apply the environment effect that you select from the pull down menu on the right side there are another 23 options in this menu 33
- Effects 33
- Environment effects 33
- Environment effects can be used to create realistic listening experiences that mimic different environments there are a total of 27 environment options which can be applied to all 2d sound sources like music 33
- There are three size settings for each environment large medium and small 33
- These four buttons activate bathroom concert hall underwater and music pub environments respectively 33
- 10 band equalizer 34
- Adjust the gain for each band 30 16khz 34
- Asus xonar essence stx 34
- Click this button to delete the parameters from user defined list 34
- Click this button to save the parameters into user defined list 34
- Key in a name for your own user defined equalizer setting 34
- The equalizer can modify the audio output for different frequencies and be used to compensate for deficiencies in your speakers systems there are 12 default patterns and you can also make your own settings 34
- There are 12 available equalizer patterns click one to apply it 34
- You can click this button to apply your own defined parameters saved in the pull down menu 34
- Asus xonar essence stx 35
- Check the box to enable or disable the key shifting feature for music playback from 4 semitones below to 4 semitones above 35
- Checkbox to enable or disable the vocal cancellation function and adjust the voice cancellation level from 0 to 100 100 will eliminate most original vocals default value is 50 35
- Click the switch to turn on or off the functions on this page 35
- Karaoke 35
- Reset all settings to the default 35
- Select the mic echo function and adjust the gain for echo signals 30 16khz 35
- The xonar essence stx provides powerful features for karaoke including key shifting vocal cancellation and microphone echo key shifting can change the pitch of karaoke background music and vocal cancellation can reduce the original vocal in songs and keep the music and symphony for karaoke 35
- Flexbass 36
- Flexbass an advanced bass management and enhancement mechanism allows you to select each satellite speaker s type for optimal sound performance from the speakers small common speaker that cannot produce low frequencies large wide band speakers that can produce low frequencies well it comes with an adjustable crossover frequency for the boundary of the bass signals flexbass will filter out the bass signals from small speaker channels and redirect them all to the subwoofer or large speakers 36
- Asus xonar essence stx 38
- Smart volume normalization 38
- Smart volume normalizationtm svn automatically keeps all music or video tv audio output at a constant level to reduce manual adjustment hassles inherent with sound sources of different loudness it allows you to listen to various content like mp3 tv program dvd video and even games with consistent sound level the following graph shows how different signals 1 2 will become the same level for example 10db below full scale after you turn on svn please note that for lower volume music 2 it will become louder when you turn on svn and for higher volume music 1 it will become quieter 38
- Asus xonar essence stx 39
- Click this button to enable svn this button is outlined blue when active 39
- When svn is enabled smart volume will be lit up at the bottom of the volume meter and the volume meter will show the level 39
- When svn is enabled the master volume knob will be illuminated by a blue light it will be lit red if the volume is muted 39
- Ds3d gx and dsp modes 40
- Asus xonar essence stx 41
- Directsound 3d game extensions mode to support eax and directsound 3d hardware extensions for lots of directx directsound3d games on windows vista 41
- This mode is set for dvd movie playback 41
- This mode is set for games 41
- This mode is set for hi fidelity playback where all effects will be cleared to keep the original digital data and analog output quality as high as possible 41
- This mode is set for music playback 41
- Asus xonar essence stx 42
- Changes your voice pitch to different types for disguising your real voice or just for fun in online chatting 42
- It emulates different background environment effects when you chat online 42
- It produces realistic and dynamic environmental reverberation for your voice in 3d gaming communication 42
- Vocalfx 42
- Vocalfx is an innovative voice processing technology to let your voice get into the realistic game landscape voiceex or to emulate the background scenes in online chat chatex it also allows you to change your voice pitch to disguise who you are magic voice these features dramatically increase the fun for voice communication on pc 42
- You can add voip application into voip application list 42
- You can hear your voice form speakers 42
- Check the check box of chatex and magic voice 44
- You can use chatex and magic voice when you chat online 44
- Your voip application has been added into list 44
- Troubleshooting 45
- Troubleshooting and faqs 45
