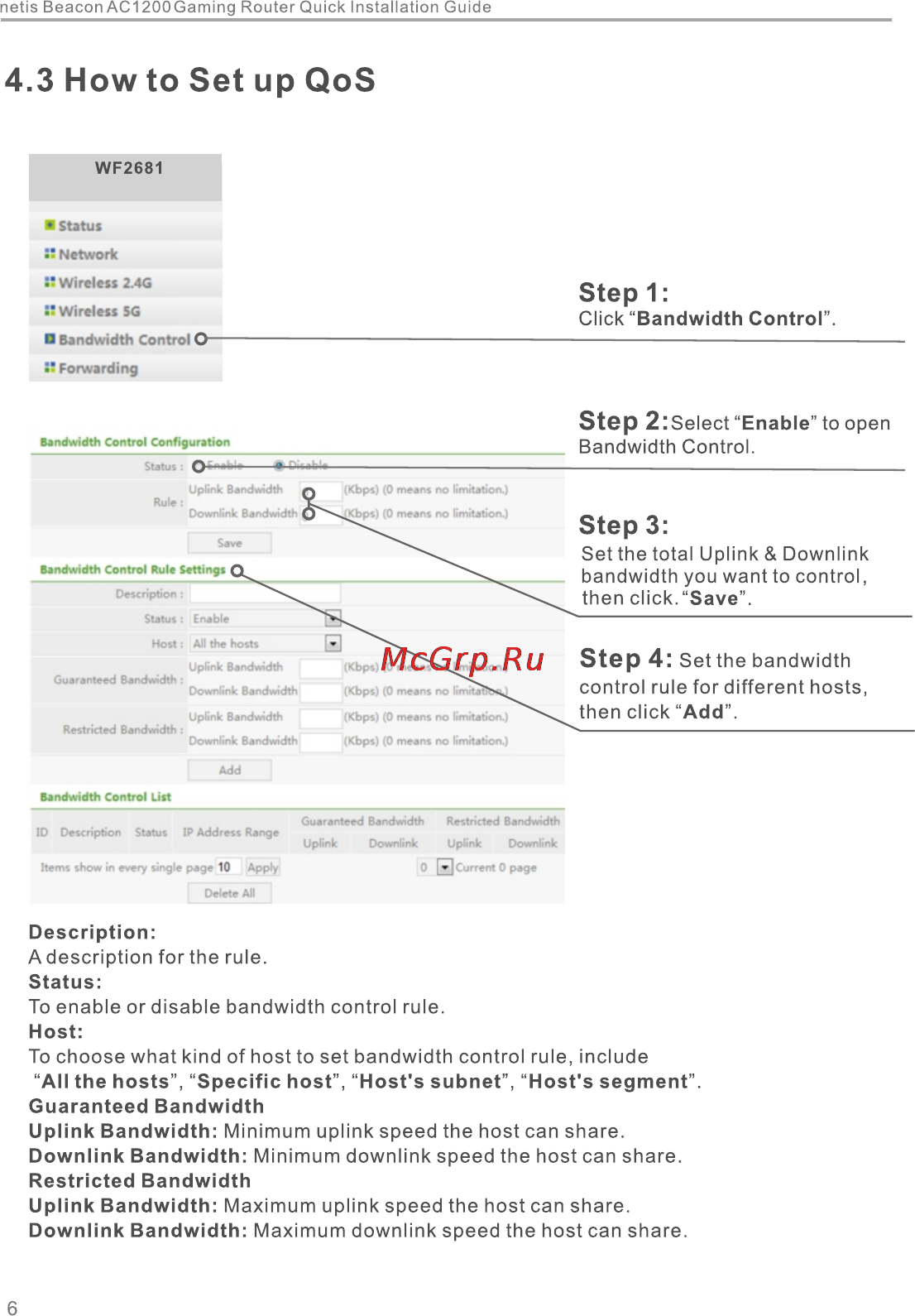

netis Beacon AC1200Gaming RouterQuick Installation Guide 4 3 How to Set up QoS WF2681 Status Network Wireless 2 4G Step 1 Wireless 5G Click Bandwidth Control Bandwidth Control O Forwarding Bandwidth control configuration Bandwidth Status O Step 2 Select Enable to open Control Step 3 Set the total Uplink Downlink bandwidth you want to control then click Save Host All the hosts Uplink Bandwidth Guaranteed Bandwidth Downlink Bandwidth Uplink Bandwidth Restricted Bandwidth Downlink Bandwidth Kbps 0 means sjimitatioo Kbps 0 means no limita Kbps 0 means no limitation Step 4 Set the bandwidth control rule for different hosts then click Add Kbps 0 means no limitation Bandwidth Control List ID Description Status IP Address Range Guaranteed Bandwidth Restricted Bandwidth Uplink Downl 0 V Current 0 page Delete All Description Adescription forthe rule Status To enable or disable bandwidth control rule Host To choose what kind of host to set bandwidth control rule include All the hosts Specific host Host s subnet Host s segment Guaranteed Bandwidth Uplink Bandwidth Minimum uplink speed the host can share Downlink Bandwidth Minimum downlink speed the host can share Restricted Bandwidth Uplink Bandwidth Maximum uplink speed the host can share Downlink Bandwidth Maximum downlink speed the host can share 6
