87045 LIMOGES Cedex

Telephone : (+33) 05 55 06 87 87 - Fax : (+33) 05 55 06 88 88

TABLE OF CONTENTS Page

1. General features .................................... 1

2. Technical features .................................1

3 100 54

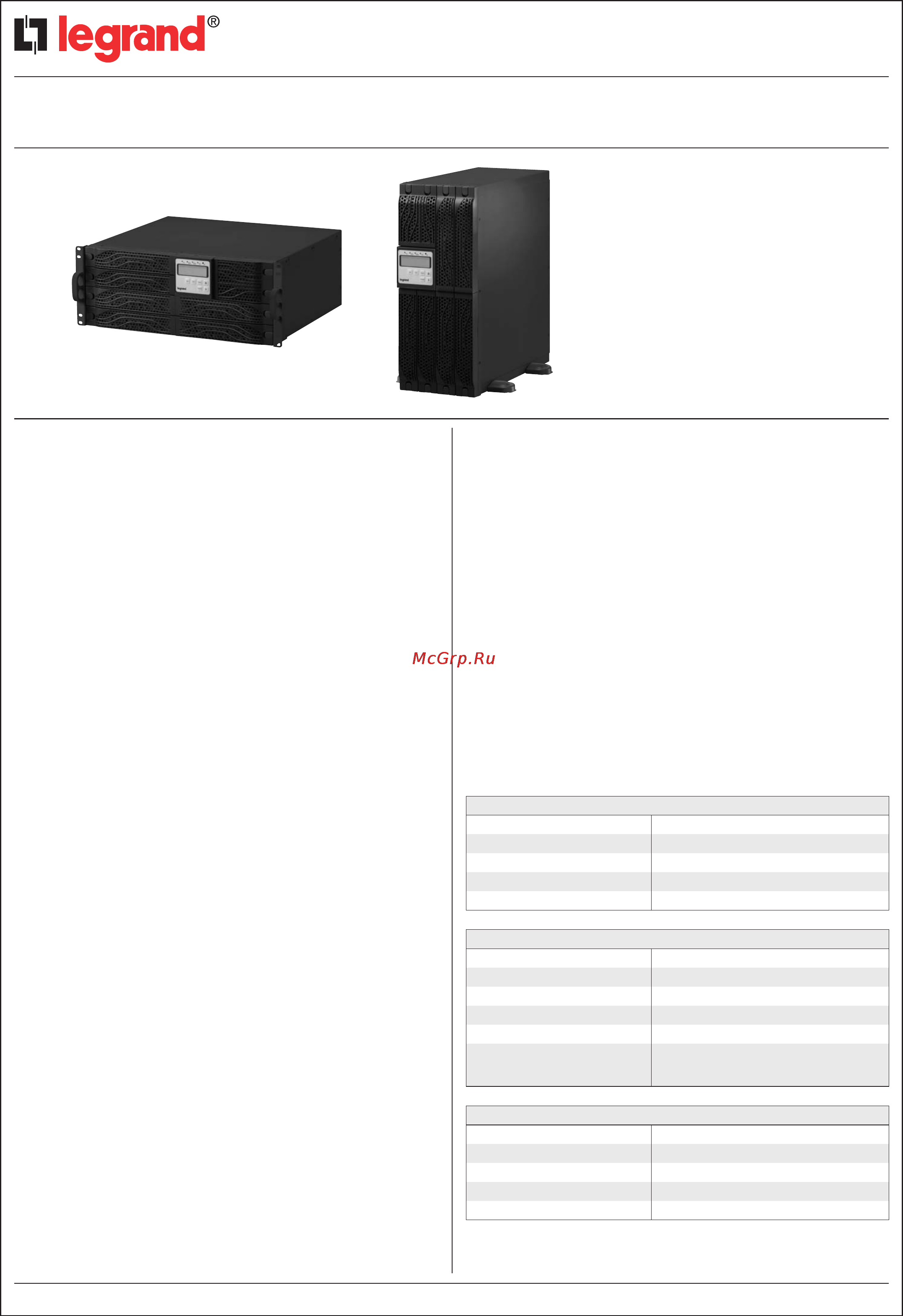

Daker DK 6000

The Legrand UPS model Daker DK 6000 is an uninterruptible

power source with high frequency PWM technology, Double

Conversion OnLine, solid neutral, Rated Power 6,000 VA – 5400 W,

equipped with valve-regulated, hermetically-sealed accumulator

batteries, contained in a specific compartment inside the UPS or

in one or more external cabinets, sized to guarantee a minimum

uptime of 6 minutes at 80% of the load.

The electronics and batteries are contained in just four rack units.

The rectifier of the UPS is comprised of a control and regulating

circuit (PFC), which, in addition to normal rectifier functions also:

• automatically corrects the power factor of the load to restore it to

a value of >0.99 with a load applied at the output at 20% of the

rated load;

• power the inverter without requiring energy from the batteries,

even when there is very low voltage from the mains;

• ensures a total harmonic distorsion of the input current THDIin

< 3% without the addition of filters or supplementary parts.

The bypass circuit is designed and built in compliance with the

following:

− Electromechanical switch

− Command and control logic managed by a microprocessor that:

• automatically transfers the load directly onto the primary mains

line without interrupting the power supply if any conditions of

overload, over temperature, continuous voltage outside of the

tolerances and inverter anomaly arise;

• automatically re-transfers the primary mains line load to an

inverter line, without interrupting the power supply, once

normal conditions of the load have been restored;

• if the primary mains line and the inverter are not synchronised,

the bypass must be disabled.

A diagnostic and shutdown software (UPS Communicator),

if accordingly installed in a PC connected to the UPS, which

allows you to access all of the DHEA's operational data, make

adjustments and settings to the special functions and control

Windows and Linux operating system shutdown.

An optional software (UPS management software) offers hierarchic

multiserver shutdown and remote management of the UPS for any

operating system in a heterogeneous network (Windows, Novell,

Linux and the common Unix).

Daker DK 6000 is managed by a microprocessor and is able

to display, on a control panel and LCD screen, the alarms and

operating modes described below:

1. GENERAL FEATURES

• normal operation

• output frequency that is not synchronised with the input

• battery-powered operation

• operation in bypass mode

• faulty power module

• overloaded

• generic anomaly

• incorrect neutral connection

• back-up time

• end of uptime

The Daker DK 6000 Static Uninterruptible Power Supply bears the

CE marking, pursuant to Directives 73/23, 93/68, 89/336, 92/31,

93/68, and is designed and built in compliance with the following

standards:

• EN 62040-1 “General and safety requirements for UPSs used in

areas that are accessible to the operator”

• EN 62040-2 “Electromagnetic Compatibility requirements (EMC)”

• EN 62040-3 “Performance and test method requirements”.

Technical file: UPS-LGR-0050/GB 01/09/2012Update: 01/09/2012

1/2

2. TECHNICAL FEATURES

General Features

Nominal power (VA)

6000

Active power (W)

5400

Technology On-Line Double Conversion VFI-SS-111

Waveform Sinusoidal

UPS architecture convertible tower and rack 19

Input

Input voltage 230 V

Input frequency 50-60 Hz ±5% Autosensing

Input Voltage Range 160V - 288V on full load

THD Input current

< 3%

Input power factor

> 0.99

Compatibility with Power-Supply Units

Configurable to set up synchronism

between the input and output frequencies, also

for broader frequency ranges, ±14%

Output

Output voltage 230V ± 1%

Output frequency (nominal) 50/60 Hz (can be set from the LCD panel) +/- 0.1%

Crest Factor 1:3

THD Output voltage

< 3%

Output Voltage Tolerance ±1%
