12
2
3.5”
HDD
1
1 2
a
b
b
Screw:M3*5Screw:M3*5
Screw:M3*5
Screw:M3*5
a
Base on your system require, you could choose the proper devices direction.

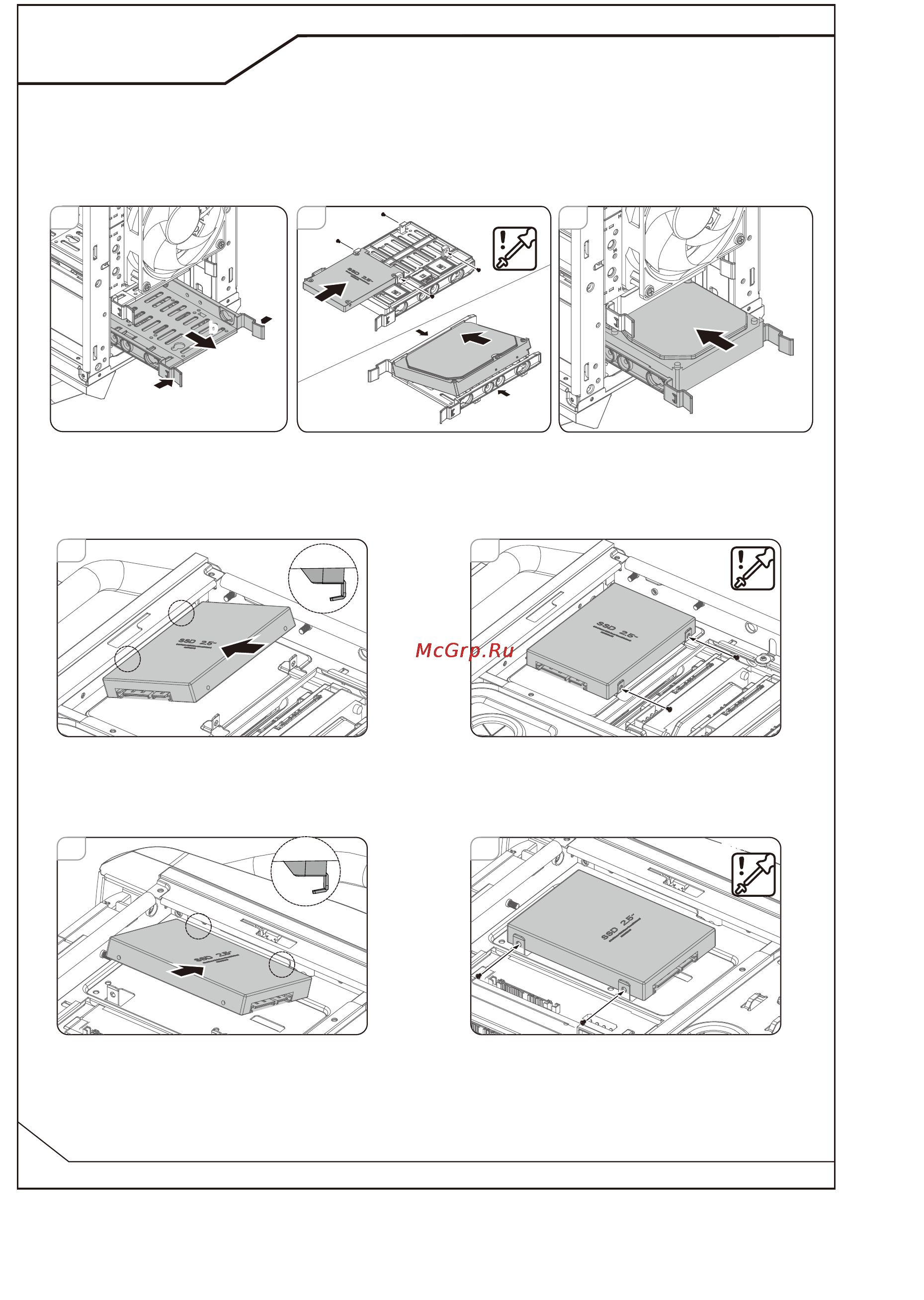

2.7.3 Install 3.5” devices or SSD into the bottom HDD cages
2
2.7.4 Install SSD(s) behind the ODD cage
(A) Install a SSD on top of right side cage
(B) Install a SSD on bottom of right side cage
Hook for SSD
Hook for SSD
bb
3.5”
HDD
a
or
1
bb
3
Screw:M3*5Screw:M3*5
