17

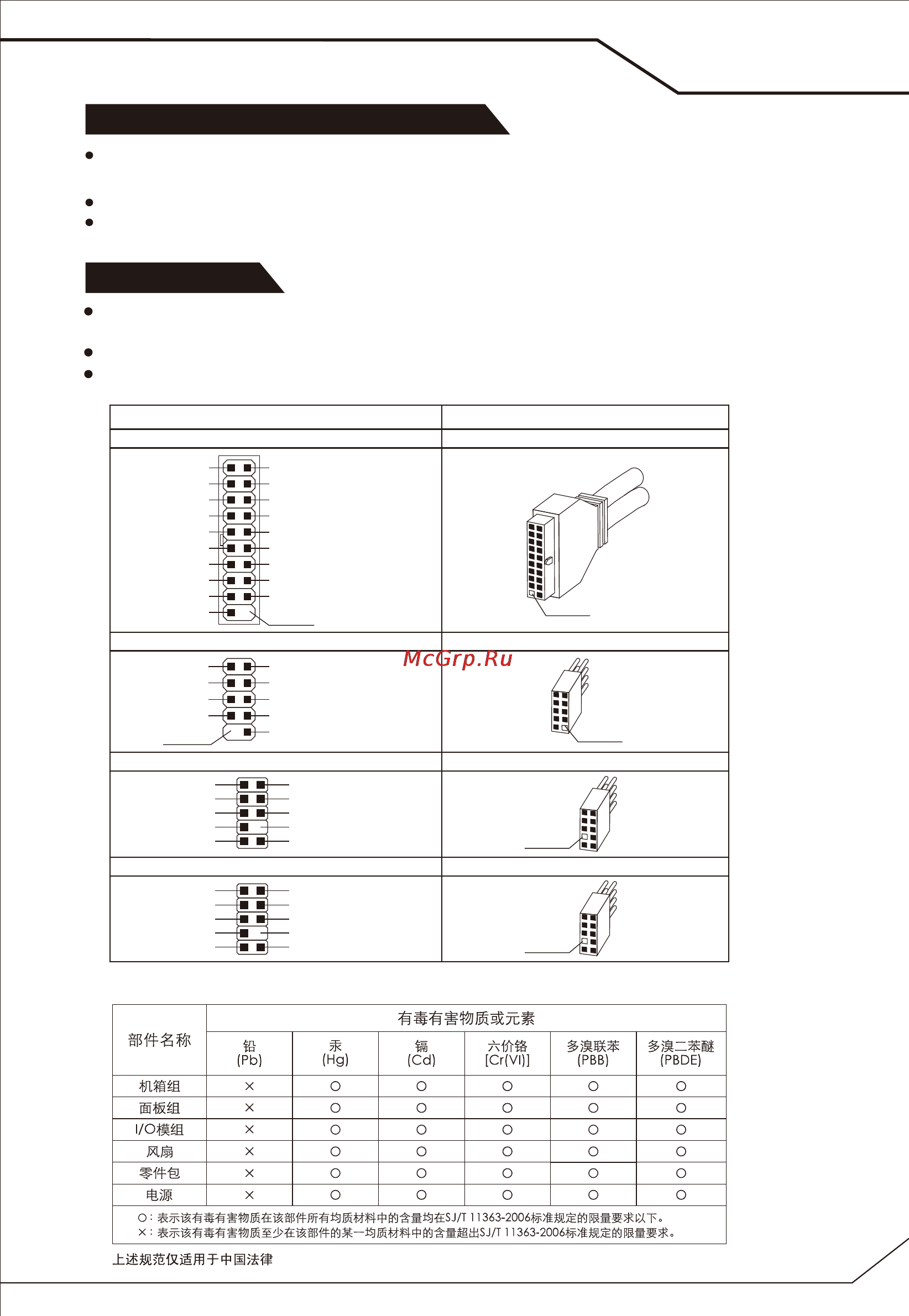

I/O Function panel installation guide
前I/O面板安裝說明
Please refer to the illustration in the section of USB 3.0, USB 2.0 and Audio connector from
the motherboard user manual. Please select the motherboard which uses the same USB 3.0, USB 2.0,
AC’97, HD Audio standard as below; otherwise, it will cause damages to device(s).
The following illustration is a diagram showing the I/O connectors.
On some motherboards, the connectors for USB 3.0, USB 2.0 and Audio are not the same
as the drawing below. Please check with your motherboard manual before installing.
Azalia (Intel High Definition Audio) /
(Intel高音质接口)
HD Connector /
接口
AC'97 AC'97 Connector /
接口
USB 2.0 connector /
接口
USB 2.0 connector /
接口
MIC
MIC~BIAS
FPOUT-R
FPOUT-L
NO DEFINITION
GND
RET-R
NO PIN
NO PIN
RET-L
AUD GND
PRESENCE#
SENSE1_RETURN
NO PIN
SENSE2_RETURN
PORT1L
PORT1R
PORT2R
SENSE_SEND
PORT2L
No Pin
No Pin
No Pin
USB+5V
LP-
LP+
GND
USB+5V
LP-
LP+
GND
NC
No Pin
USB 3.0 connector /
接口
USB 3.0 connector /
接口
IntA_P2_D+
IntA_P2_D-
GND
IntA_P2_SSTX+
IntA_P2_SSTX-
GND
IntA_P2_SSRX+
IntA_P2_SSRX-
Vbus
No Pin
ID
IntA_P1_D+
IntA_P1_D-
GND
IntA_P1_SSTX+
IntA_P1_SSTX-
GND
IntA_P1_SSRX+
IntA_P1_SSRX-
Vbus
Case Connector /
线材
Motherboard /
主机板
No Pin
有害物质禁用表
请参考主机板使用说明的USB 3.0, USB 2.0, 声音插孔章节的图示.另外,请选用以下标准USB 3.0, USB 2.0,
音效连接头,避免损坏本产品.
下图为I/O电缆的连接线图.
一些主机板的USB 3.0, USB 2.0, 音效连接头与下图不符,安装前,请参阅主机板使用说明.
