HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8

hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge

loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged

into an AC outlet. The unit will charge in both the on and off position.

Note: This UPS is designed with a safety feature to keep the system from being turned on

during shipment. The first time you turn the UPS on, you will need to have it connected to AC

power or it will not power up.

2. If you will use the software, connect the USB cable to the USB port on the UPS.

3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered

data storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets.

DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical

device into the battery power supplied outlets. The power demands of these devices will overload

and possibly damage the unit.

4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet

is protected by a fuse or circuit breaker and does not service equipment with large electrical

demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords.

5. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit

will "beep".

6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To

correct this, turn the UPS off and unplug at least one piece of equipment from the battery power

supplied outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the UPS

on.

7. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the

battery will automatically recharge.

8. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

9. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge

the battery every three months to ensure battery life.

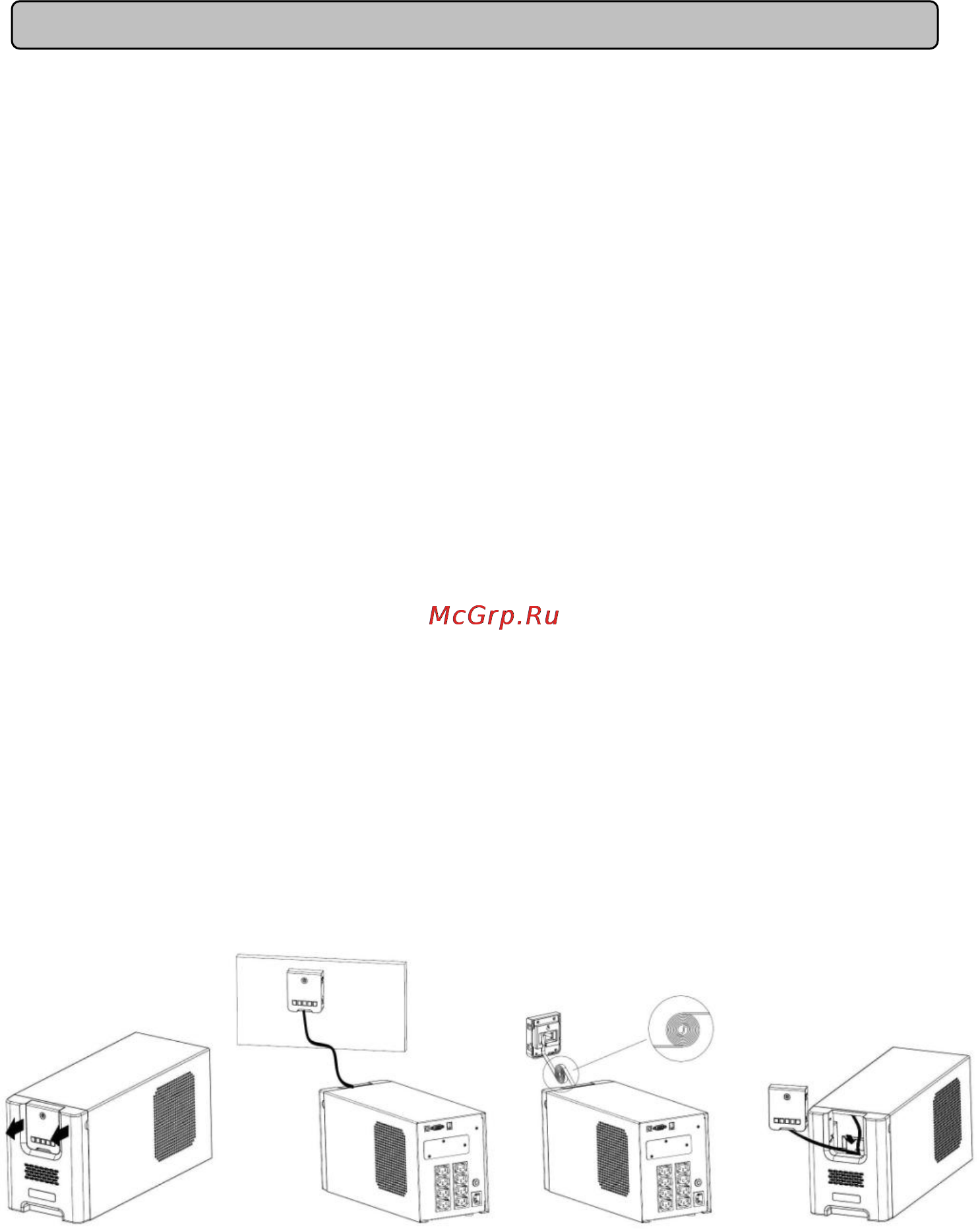

10. The LCD module is wall-mountable for extended distance control. Follow the steps below for

installation procedure.

a. Remove the LCD module from the front panel.

b. Hang the LCD module on the wall.

c. Replacing the LCD on the UPS - To place the LCD back on the UPS, roll up the LCD cable, return

it to the space between the front panel & battery cover, and replace the LCD.
