![Dell inspiron 5748, 5748-8847 Инструкция по эксплуатации онлайн [29/93] 152212](/views2/1166435/page29/bg1d.png)

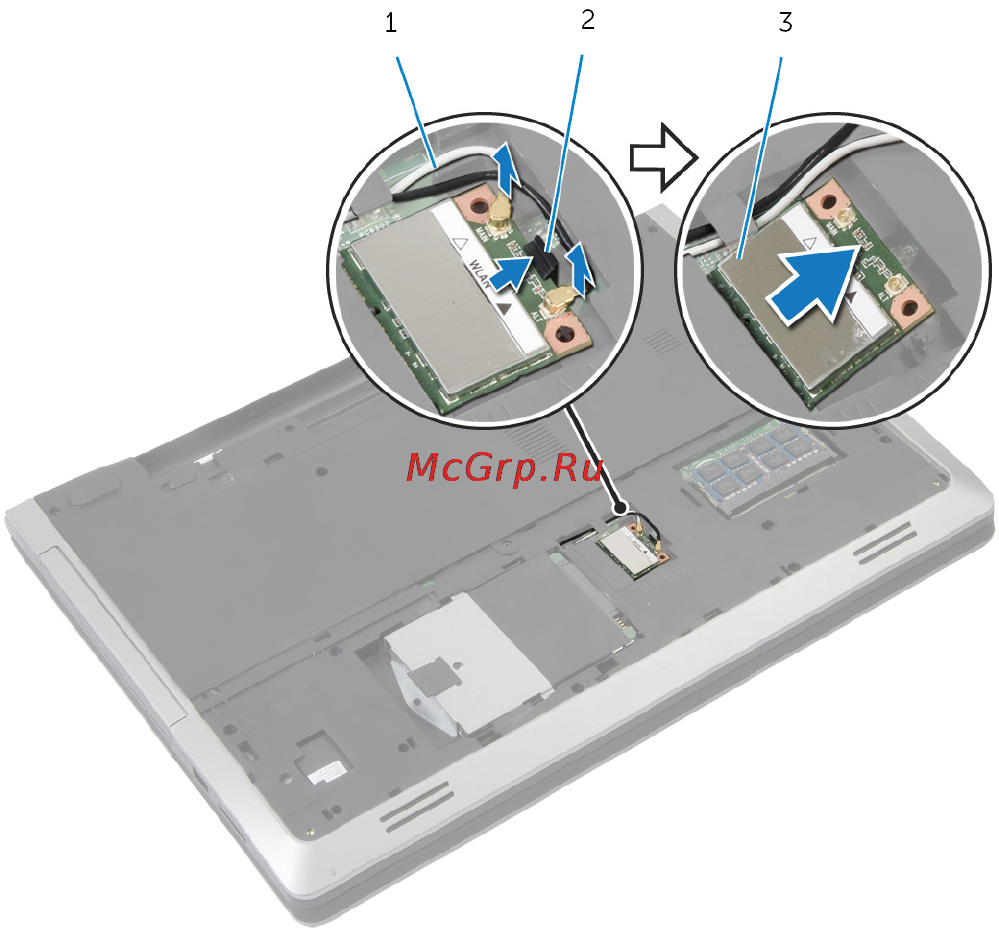

3 Slide the wireless card out of the wireless-card slot.
1 antenna cables (2) 2 securing tab
3 wireless card
29
