![Dell inspiron 5748, 5748-8847 Инструкция по эксплуатации онлайн [33/93] 152212](/views2/1166435/page33/bg21.png)

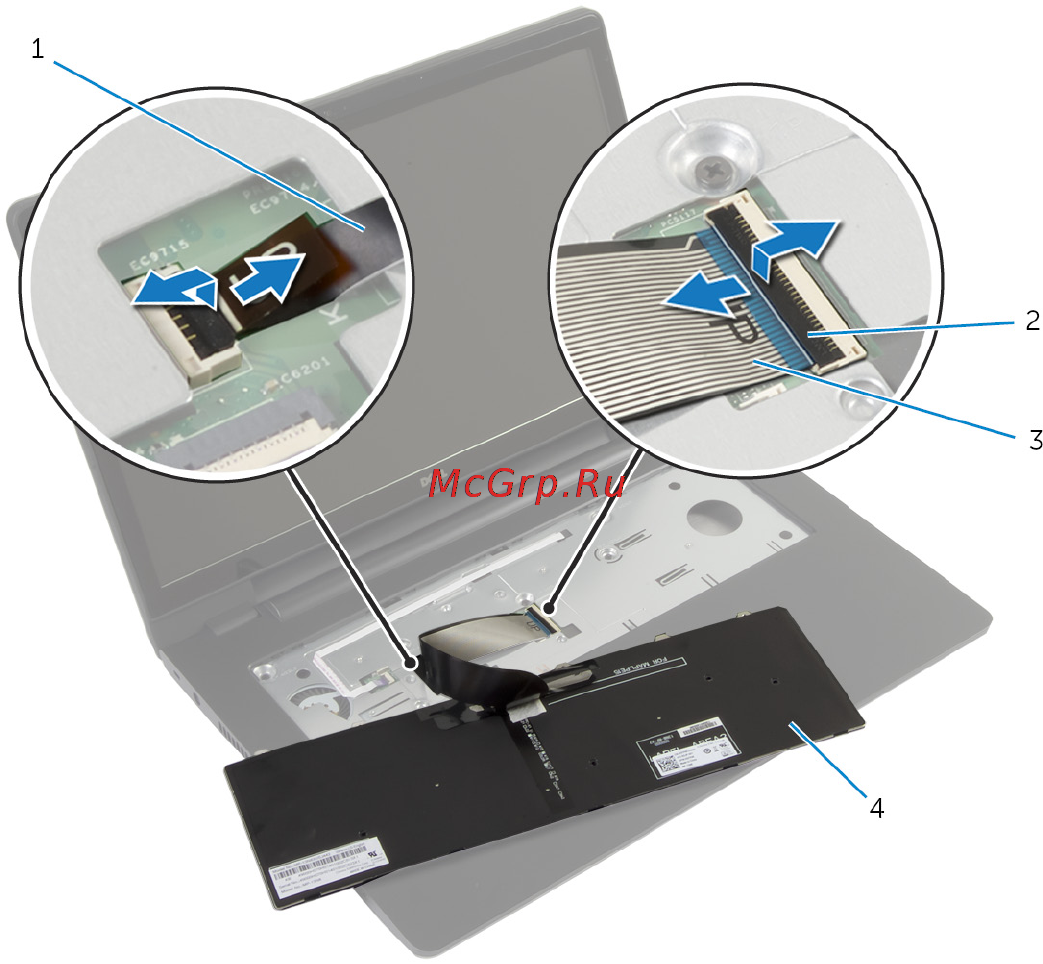

5 Lift the keyboard along with the cables, off the palm-rest assembly.
1 keyboard-backlight cable 2 latches (2)
3 keyboard cable 4 keyboard
33
