Procedure

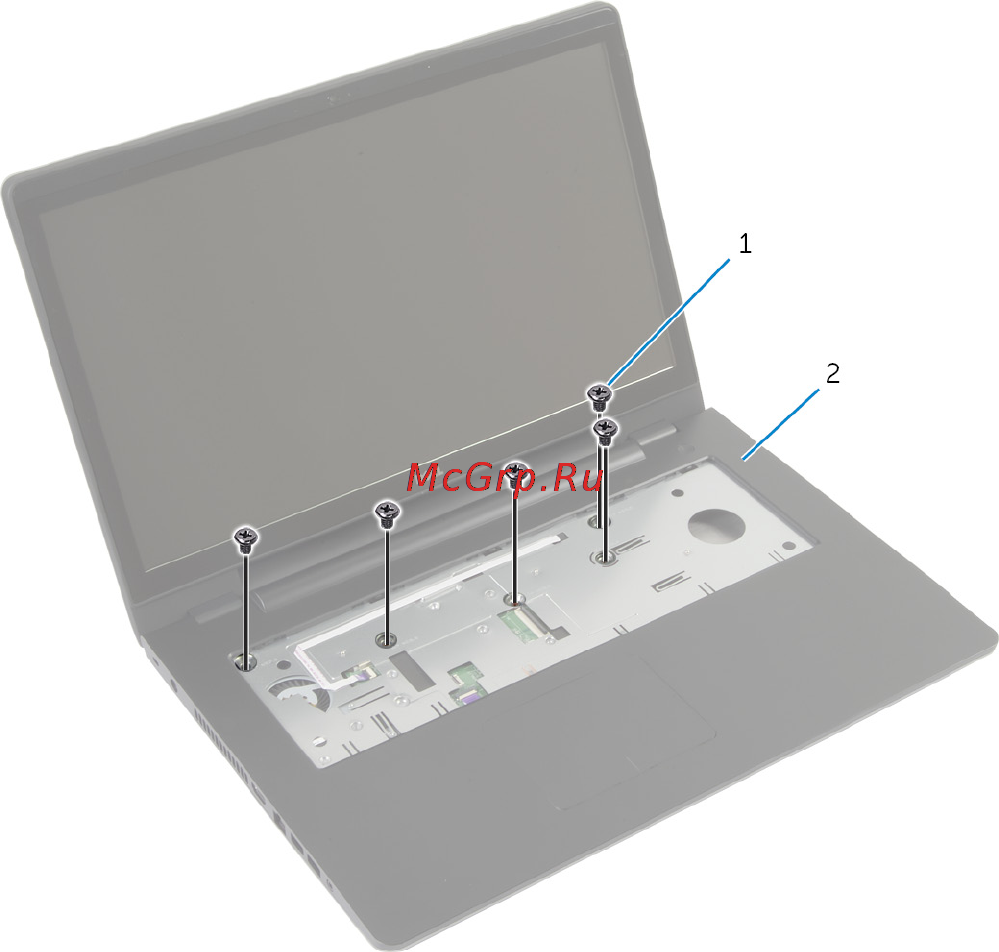

1 Remove the screws that secure the palm rest to the system board.
1 screws (5) 2 palm rest
2 Close the display and turn the computer over.
39
