![Dell inspiron 5748, 5748-8847 Инструкция по эксплуатации онлайн [40/93] 152212](/views2/1166435/page40/bg28.png)

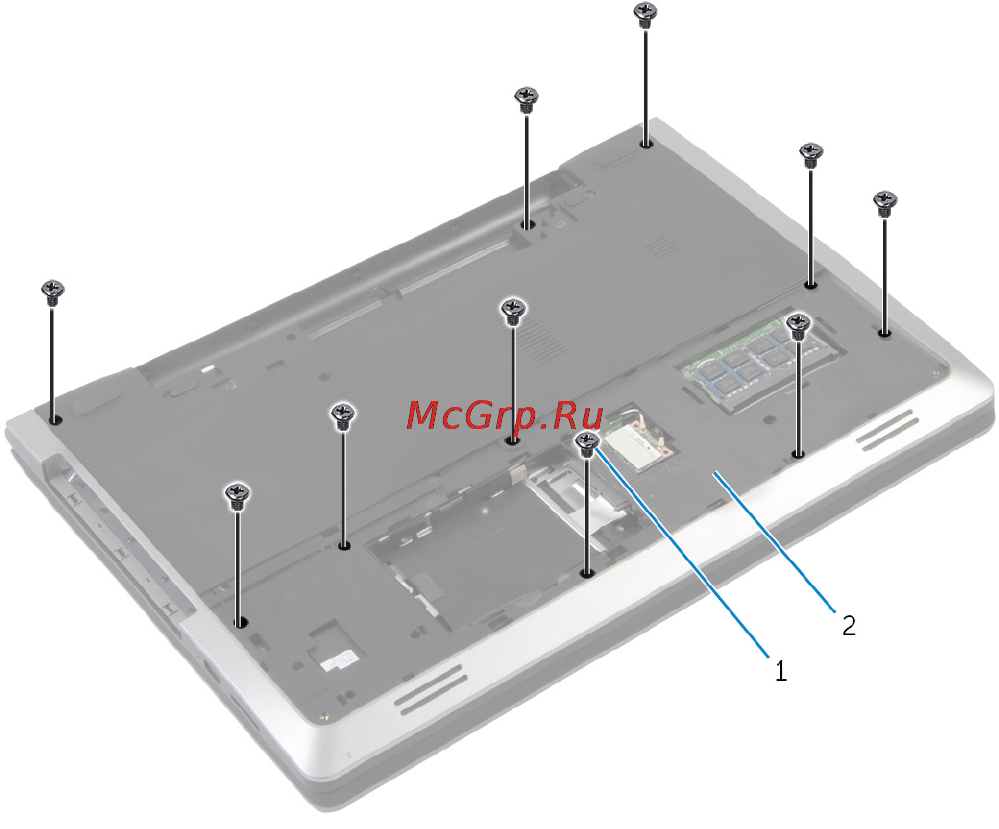

3 Remove the screws that secure the palm rest to the computer base.
1 screws (10) 2 computer base
4 Turn the computer over and open the display as far as possible.
40
