![Dell inspiron 5748, 5748-8847 Инструкция по эксплуатации онлайн [45/93] 152212](/views2/1166435/page45/bg2d.png)

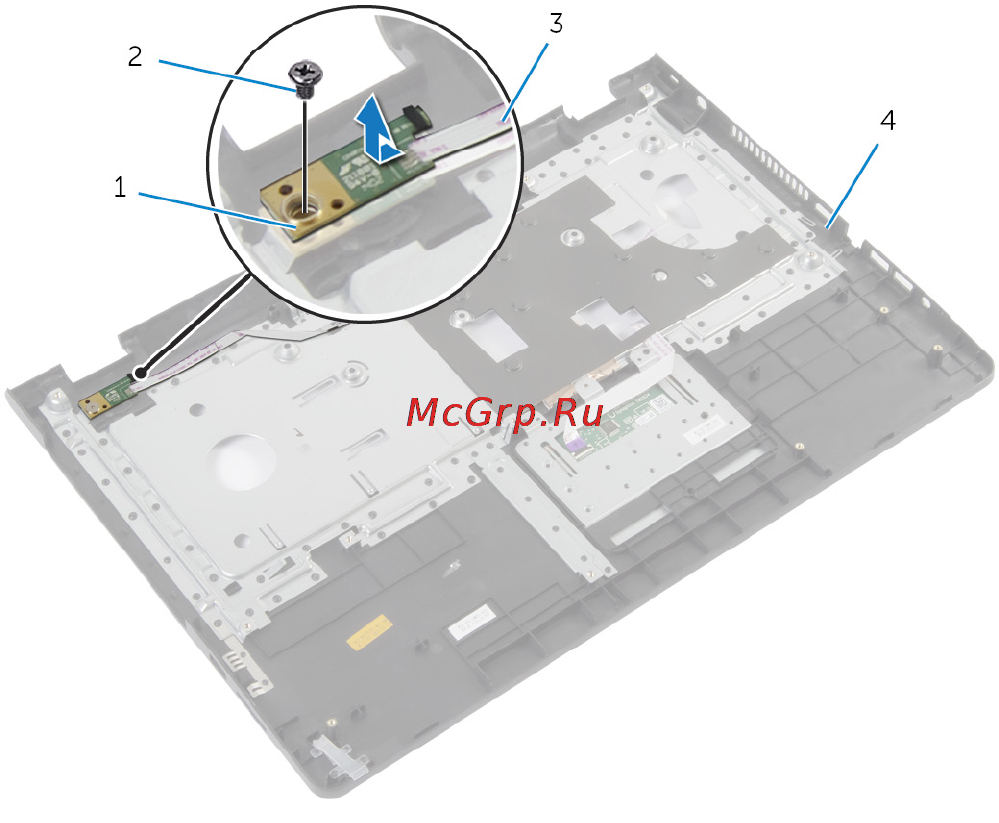

6 Lift the power-button board at an angle and remove it from the palm
rest.
1 power-button board 2 screw
3 power-button board cable 4 palm rest
45
