Dell inspiron 5748, 5748-9165 [15/93] Procedure
![Dell inspiron 5748, 5748-1482 [15/93] Procedure](/views2/1166435/page15/bgf.png)
Procedure

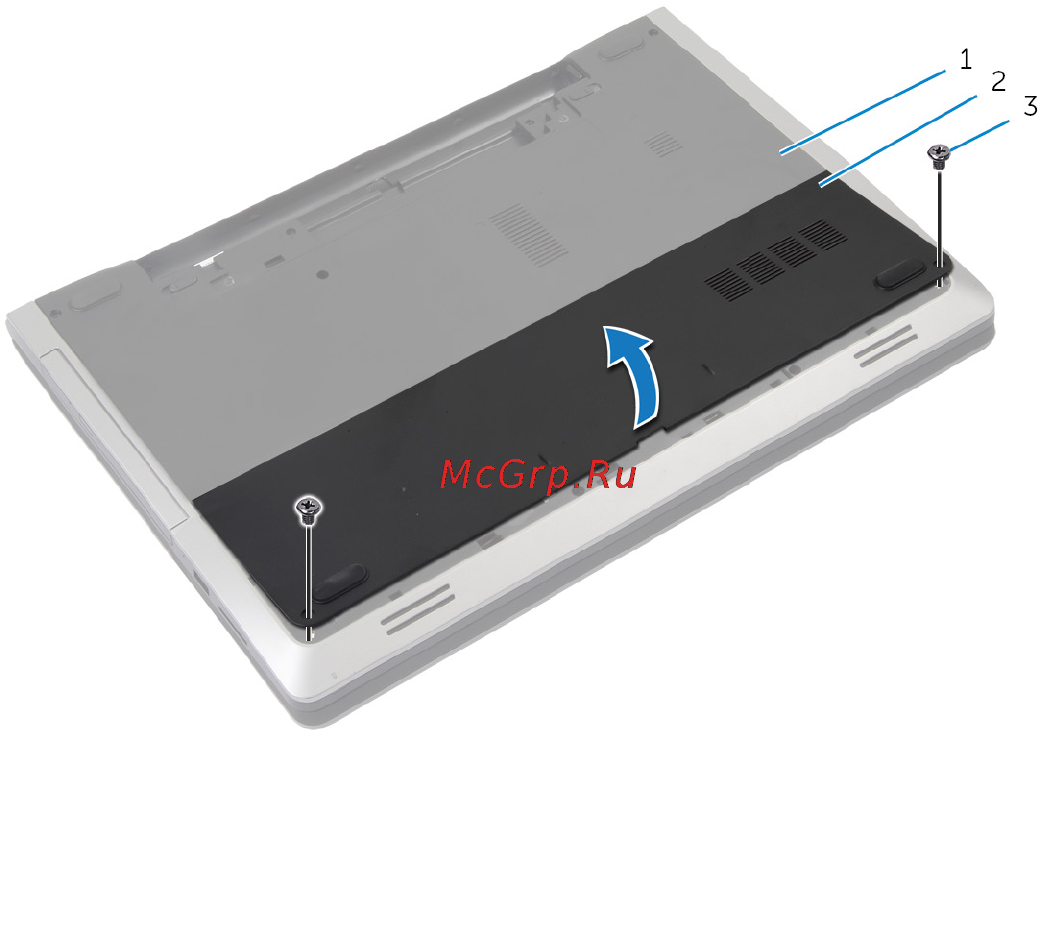

1 Remove the screws that secure the base cover to the computer base.
1 computer base 2 base cover
3 screws (2)
2 Using your fingertips, pry the base cover and lift it off the computer base.
15
