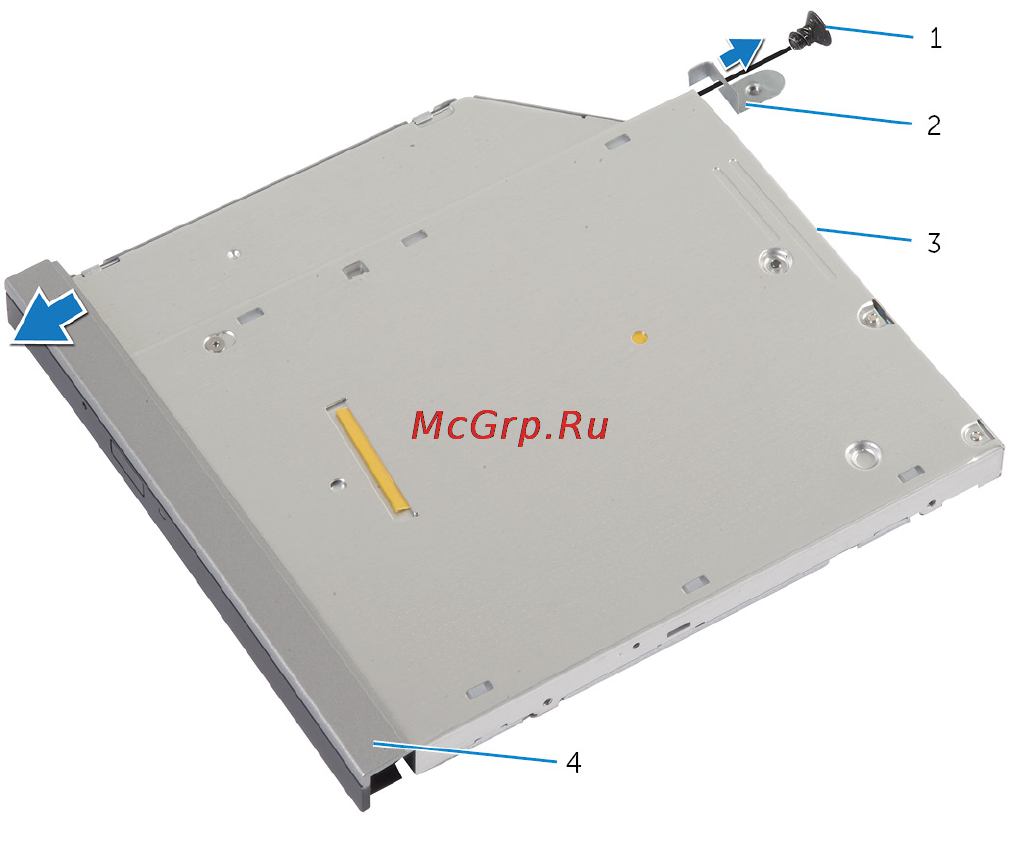

5 Carefully pull the optical-drive bezel and remove it from the optical drive.
1 screw 2 optical-drive bracket
3 optical drive 4 optical-drive bezel
18
