![Dell inspiron 5748, 5748-1482 Инструкция по эксплуатации онлайн [21/93] 152290](/views2/1166435/page21/bg15.png)

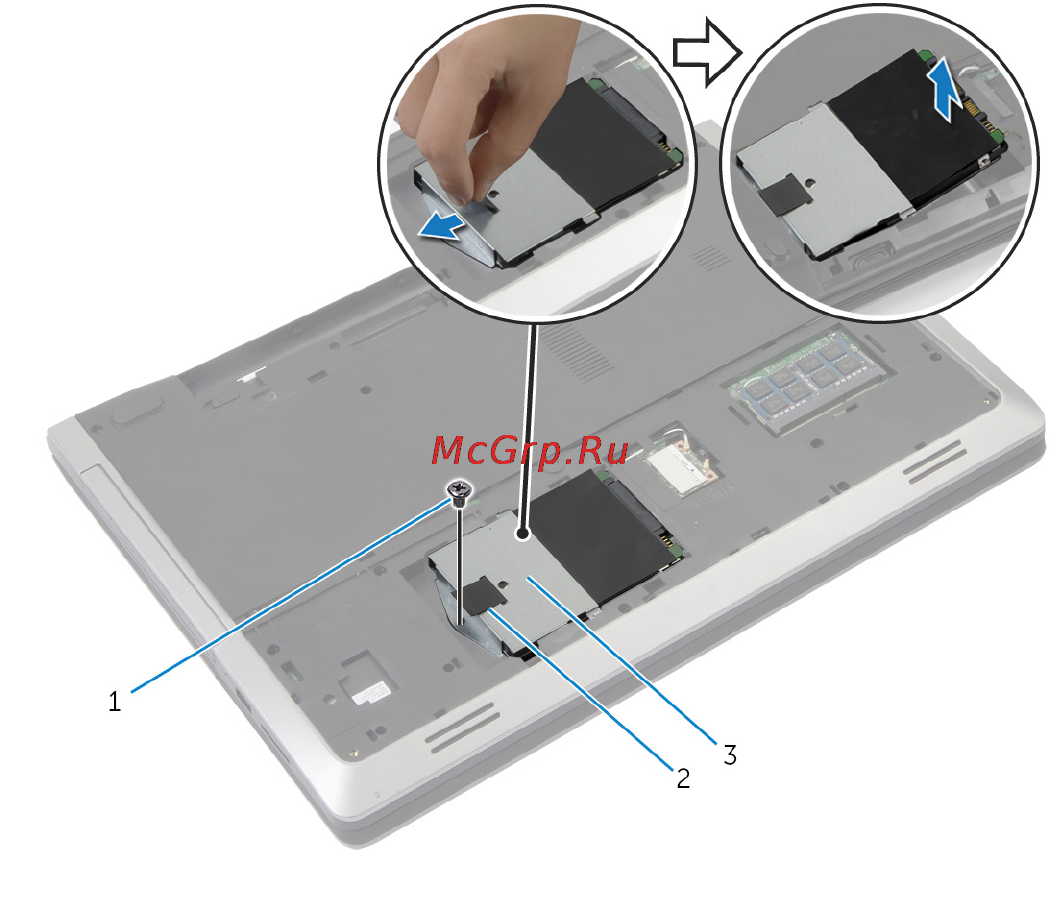

3 Lift the hard-drive assembly off the computer base.
1 screw 2 pull-tab
3 hard-drive assembly
4 Remove the screws that secure the hard-drive bracket to the hard drive.
21
