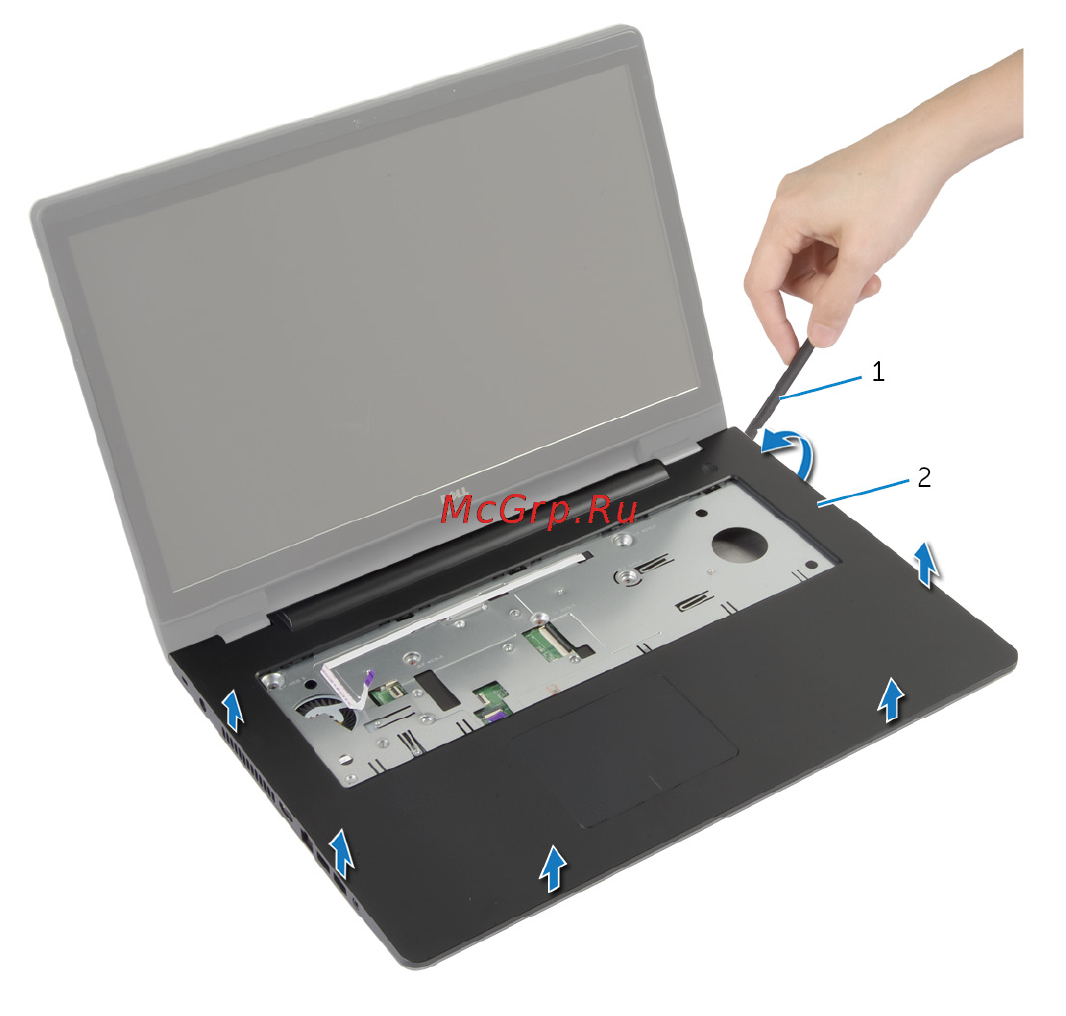

6 Using a plastic scribe, gently lift and release the tabs on the palm rest
from the slots on the computer base.
1 plastic scribe 2 palm rest
7 Lift the palm rest away from the display assembly.
42
