Dell inspiron 5748, 5748-9165 Инструкция по эксплуатации онлайн [63/93] 152291
![Dell inspiron 5748, 5748-8847 Инструкция по эксплуатации онлайн [63/93] 152212](/views2/1166435/page63/bg3f.png)

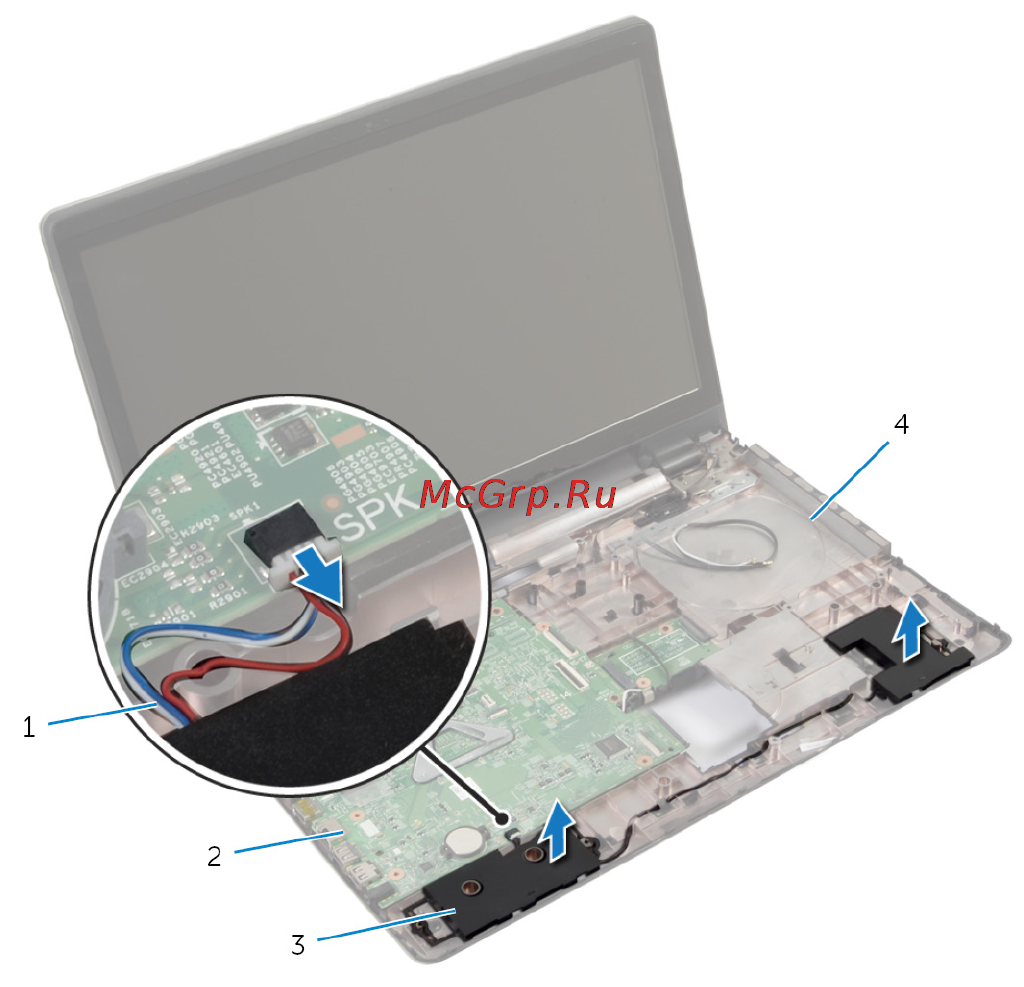

3 Lift the speakers, along with the speaker cable, off the computer base.
1 speaker cable 2 system board
3 speakers (2) 4 computer base
63
