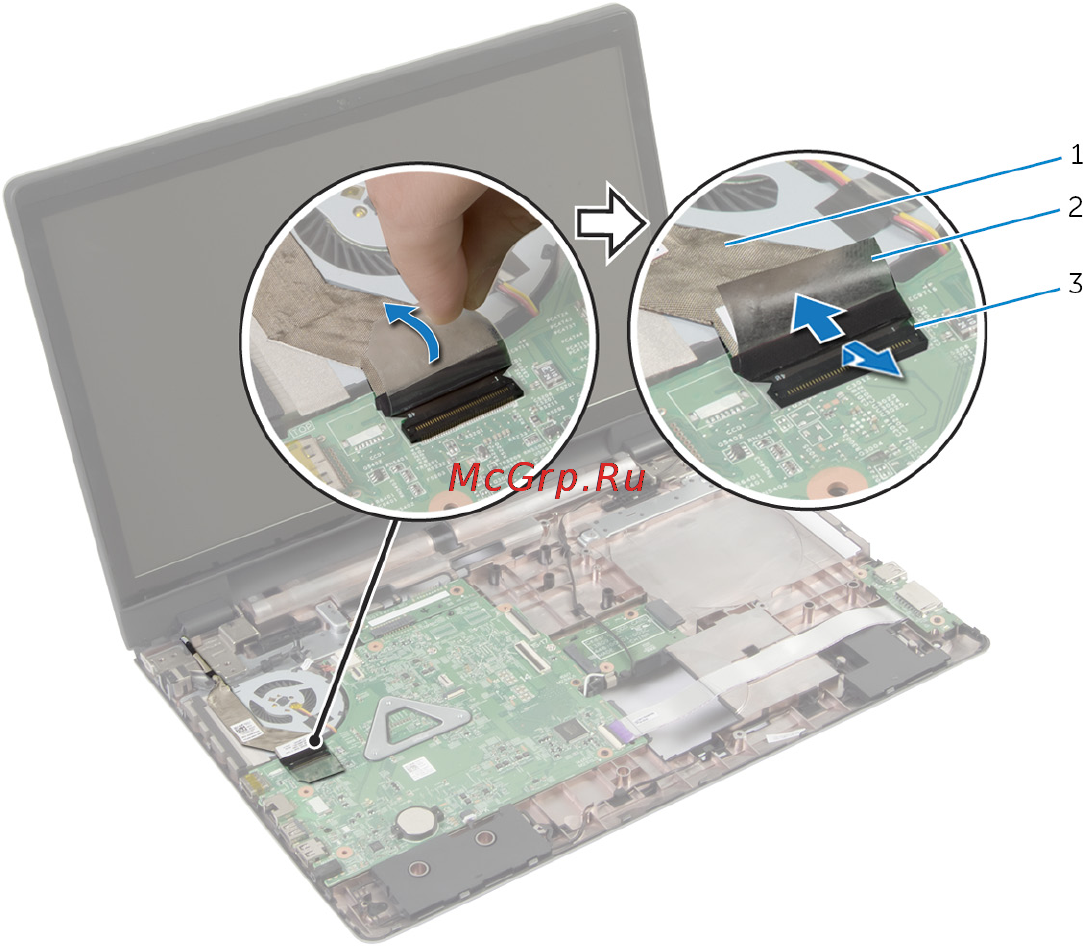

7 Lift the connector latch and disconnect the display cable from the system
board.
1 display cable 2 tape
3 connector latch
8 Peel off the display cable from the fan.
9 Remove the screws that secure the display assembly to the computer
base.
10 Note the antenna cable routing and remove the cable from the routing
guides on the computer base.
74
