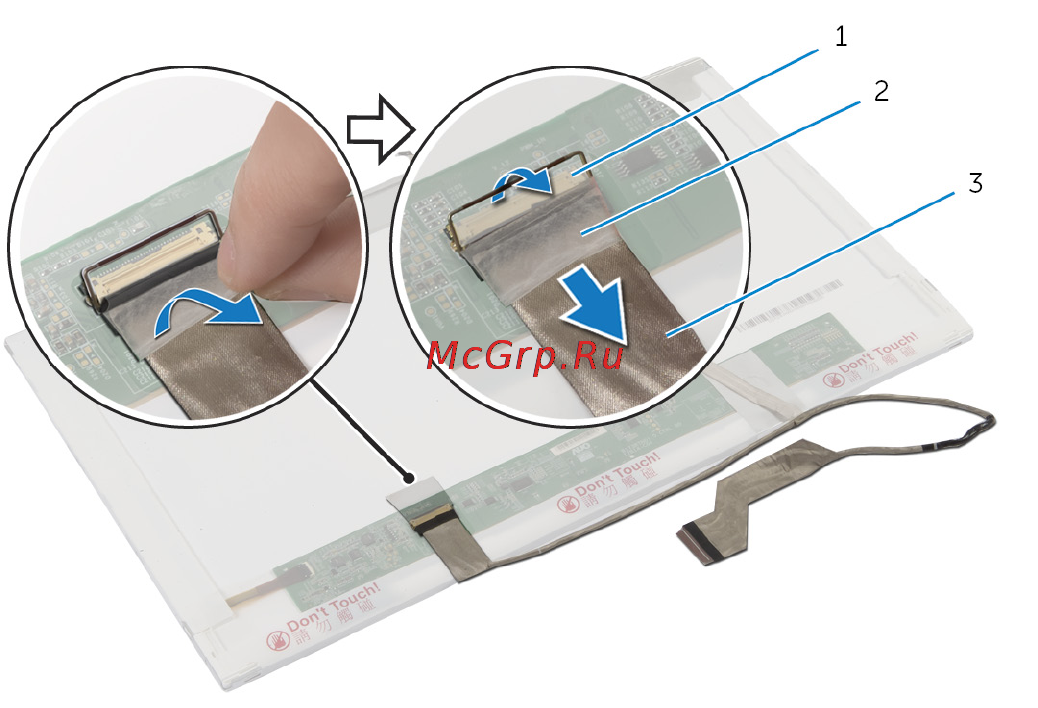

5 Lift the connector latch and disconnect the display cable from the display
panel.
1 connector latch 2 tape
3 display cable
86
