Removing the Primary Hard Drive | 22
3 Disconnect the interposer from the hard drive.
4 Remove the screws that secure the hard-drive bracket to the hard drive.
5 Lift the hard-drive bracket off the hard drive.

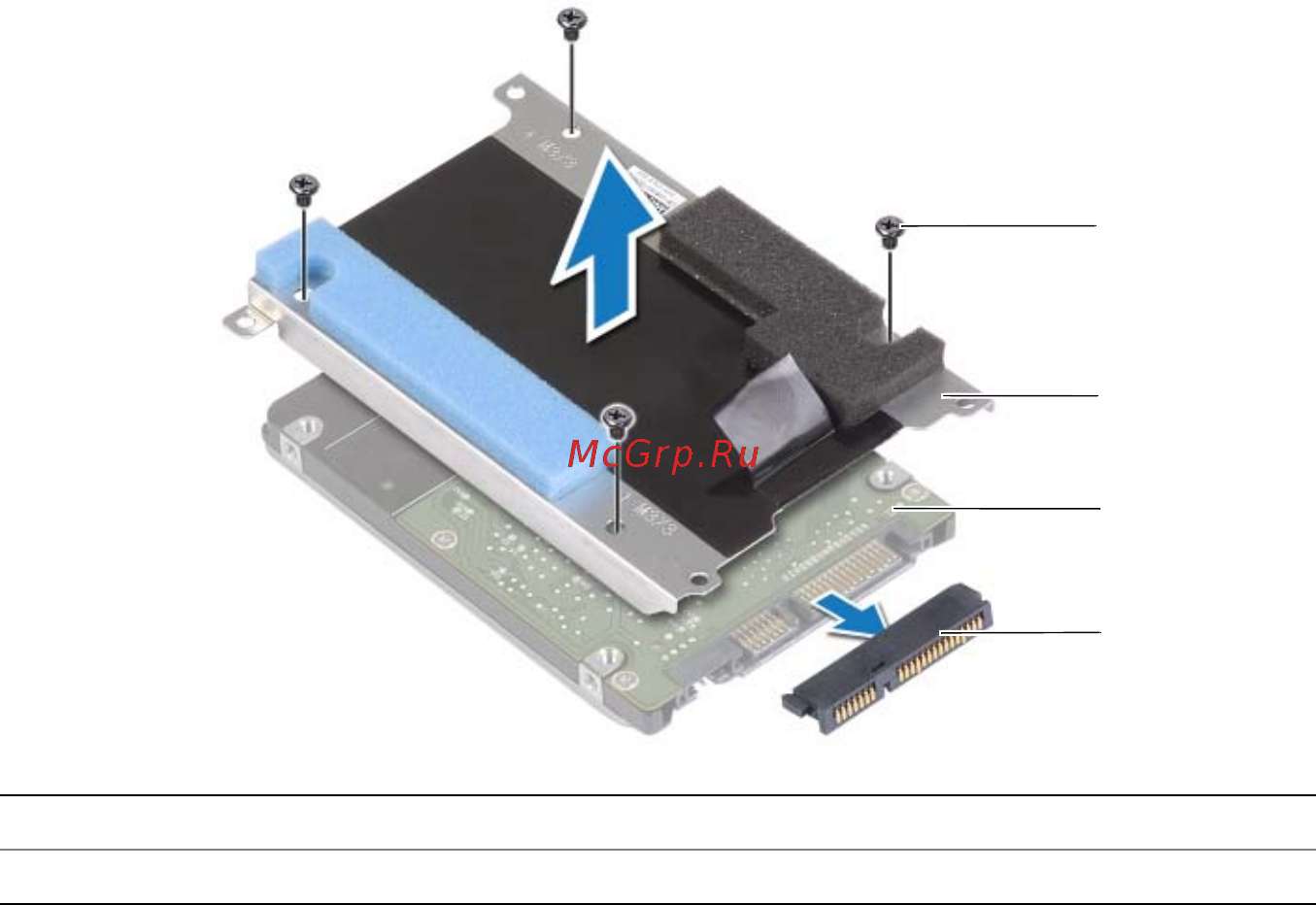

1 screws (4) 2 hard-drive bracket
3 hard drive 4 interposer
1
2
3
4
book.book Page 22 Friday, June 28, 2013 3:27 PM
