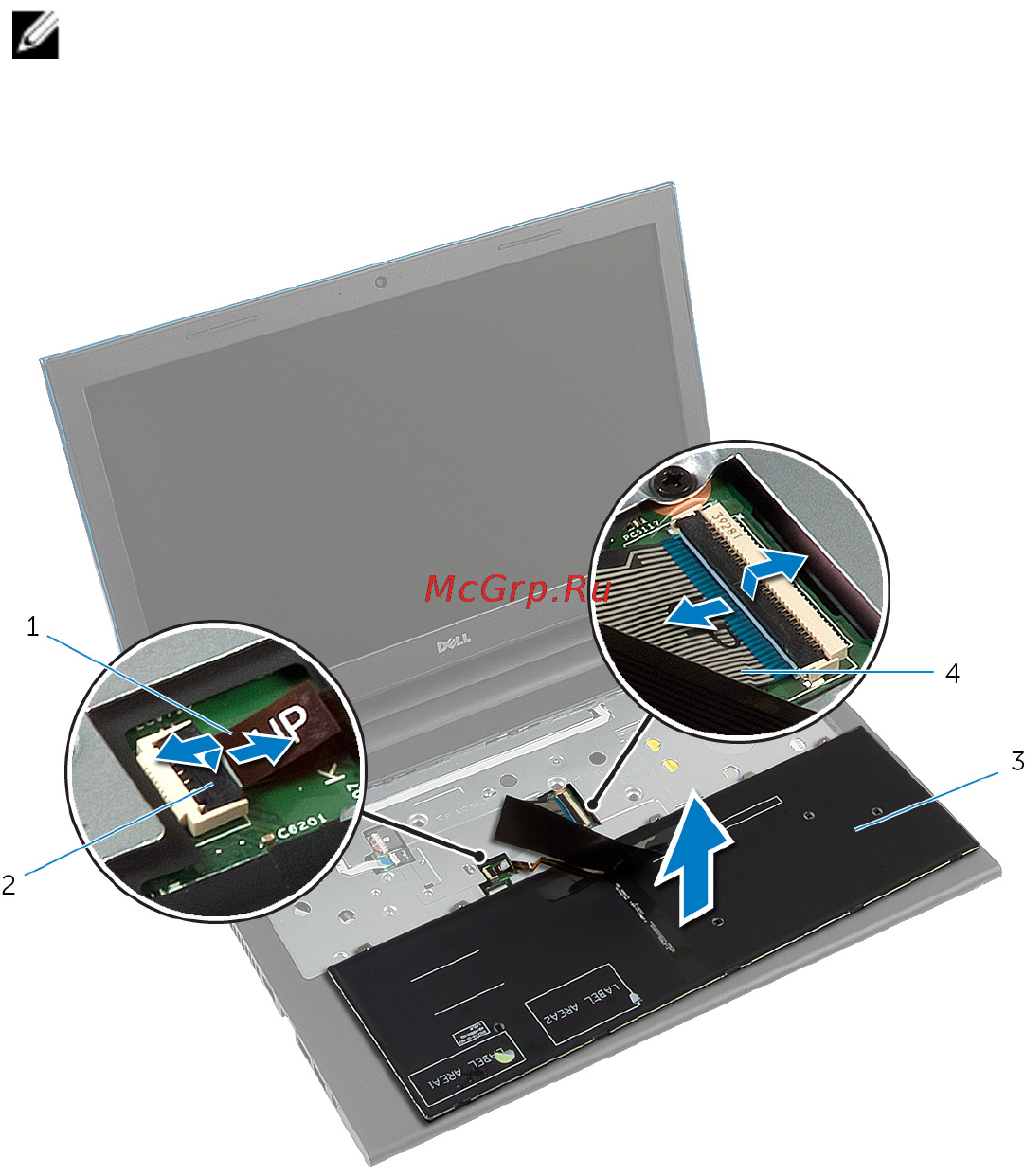

5 Lift the keyboard along with the cables off the palm rest.
NOTE: If you are installing a new keyboard, make sure to note the
folding of the keyboard cable and keyboard-backlight cable
(optional).
1 keyboard-backlight cable
(optional)
2 connector latch
3 keyboard 4 keyboard cable
32
