Procedure
1 Remove the screws that secure the battery-connector board to the
computer base.
2 Carefully lift the battery-connector board to disconnect it from the
system board.

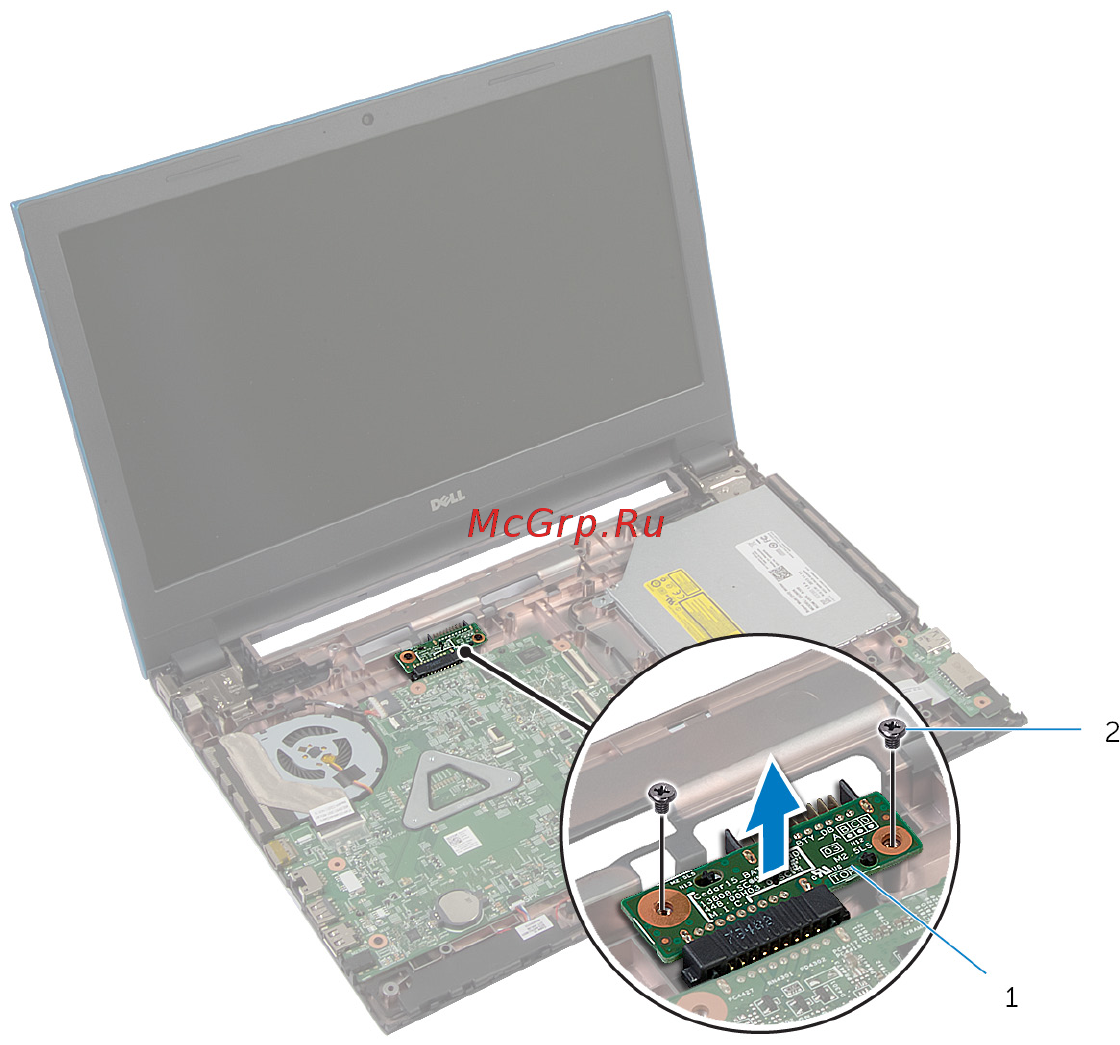

1 battery-connector board 2 screws (2)
