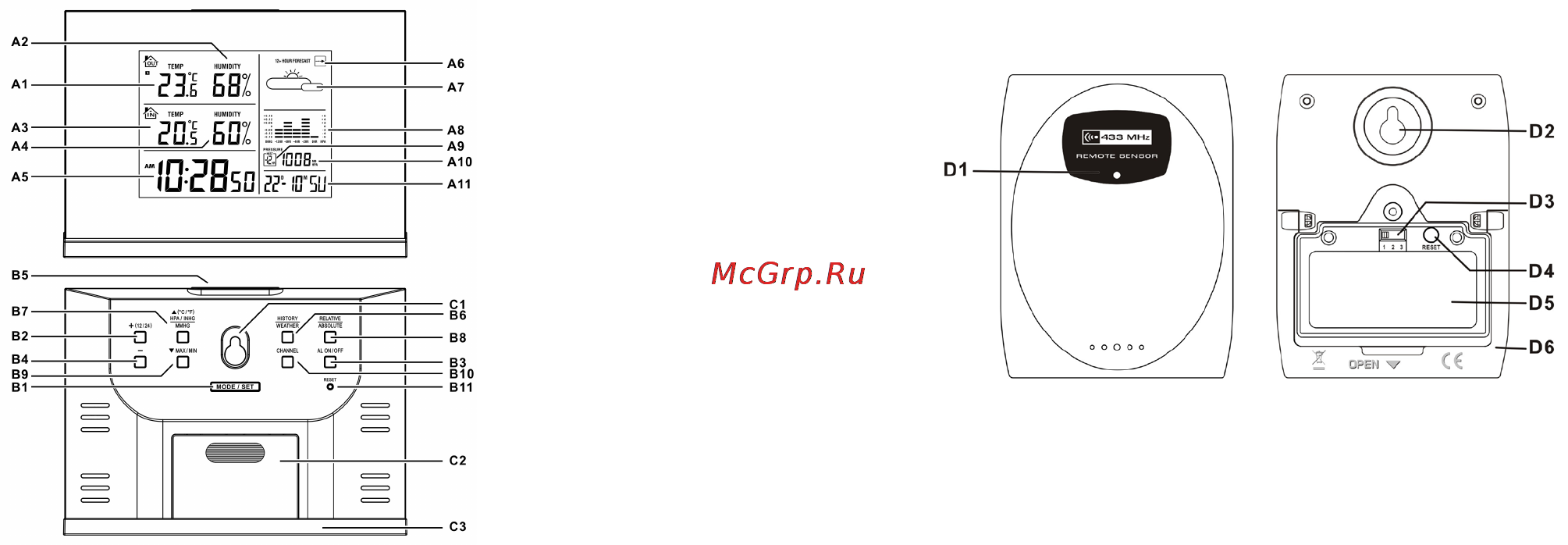

2. Main Unit
Appearance 3. Outdoor Thermo Sensor
2.1 Part A- LCD
A1: Outdoor Temperatu
re
A2: Outdoor Humidity
A3: Indoor Temperature
A4: Indoor Humidity
A5: Time Display
A6: Barometer Pressure Trend
A7: Weather Forecast
A8: Barometric Pressure Bar Graph
A9: Past Hour (Pressure History)
A10: Absolute/ Relative Barometric
Pressure Reading
A11: Date, Day of Week
2.2 Part B- Buttons
B1: “MODE/SET” button
B2: “+ (12/24)” button
B3: “ALARM ON/OFF” button
B4: “-” button
B5: “SNOOZE/LIGHT” button
B6: “HISTORY/WEA
THER” button
B7: “HPA/ NHG/MMHG/▲ (°C/ °F) button
B8: “RELA
TIVE/ ABSOLUTE” button
B9: “MAX/MIN/▼” button
B10: “CHANNEL” button
B11: “RESET” button
2.3 Part C - Structure
C1: Wall Mount
Hole
C2: Battery Cover
C3: Stand
D1: Transmission Indication LED
D2: W
all Mount Hole
D3: Channel Select Switch
D4: “RESET” button
D5: Battery Compartment
D6: Stand
4. Getting Started:
4.1 Main Unit
Slide open main unit battery compartment cover [C2]
Insert 3 x AAA batteries observing polarity [ “+” and “ –“ marks]
Replace main unit battery compartment cover [C2]
Use
a pin to press the RESET [B11] button on the rear of the main unit, the main unit is
now ready for use
4.2 Outdoor Thermo Sensor
Batteries compartment (D5) of thermo sensor is locating behind the back cover,
unscrews the batteries cover to open.
Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
