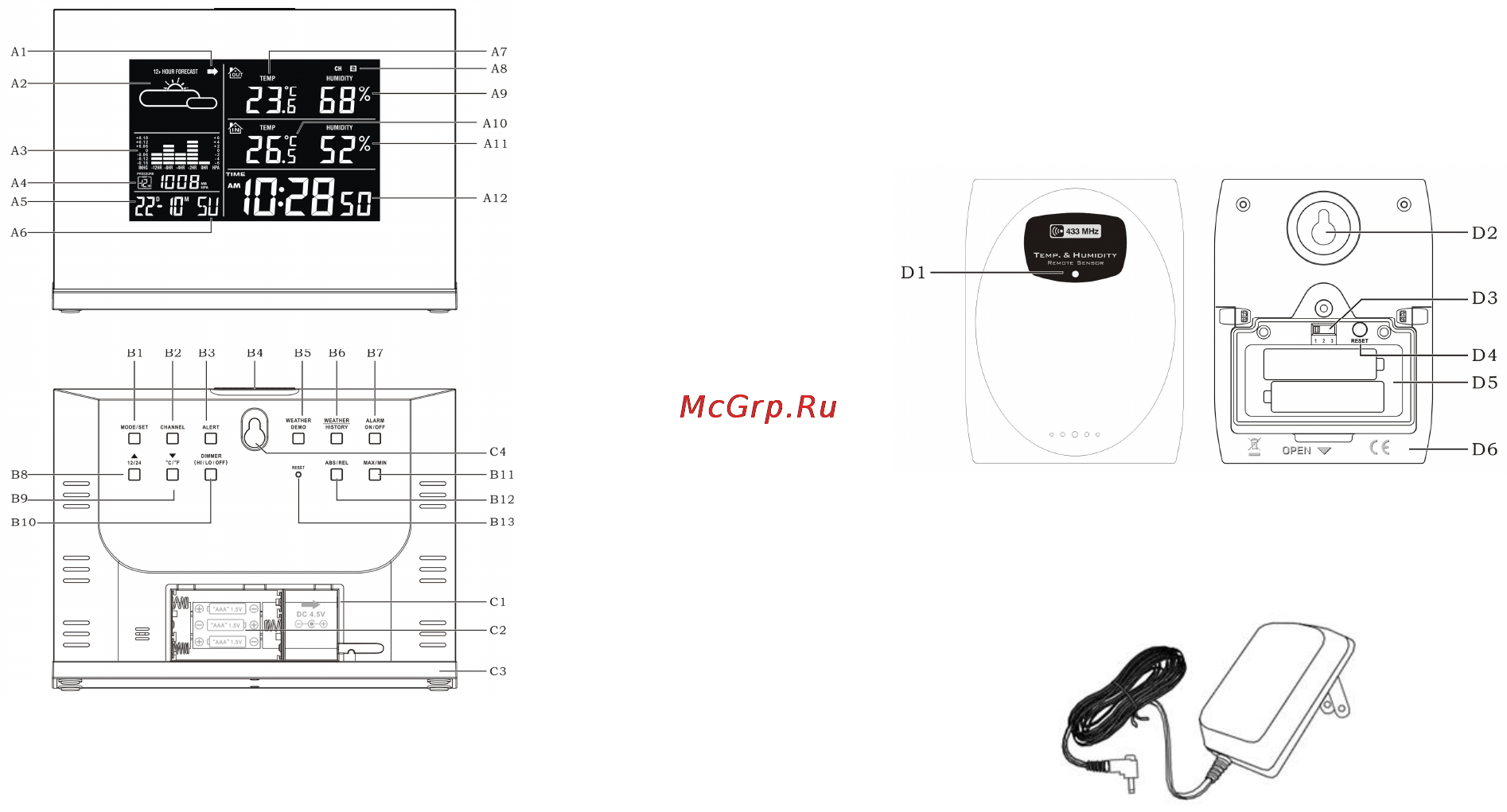

2.1 Main Unit Appearance
2.1 Part A- LCD
A1: Barometric Pressure Trend
A2: Weather Forecast
A3: Barometric Pressure Bar Graph
A4: Past Hour (Pressure History)
A5: Date
A6: Day Of Week
A7: Outdoor Temperature
A8: Outdoor Channel
A9: Outdoor Humidity
A10: Indoor Temperature
A11: Indoor Humidity
A12: Time
2.2 Part B- Buttons
B1: “MODE/SET” button
B2: “CHANNEL” button
B3: “ALERT” button
B4: “SNOOZE/LIGHT” button
B5: “WEATHER DEMO” button
B6: “WEATHER/HISTORY” button
B7: “AL ON/OFF” button
B8: “/ (12/24)” button
B9: “(C/F) /” button
B10: “DIMMER HI/LO/OFF” button
B11: “MAX/ MIN” button
B12: “ABS/ REL” button
B13: “RESET” button
2.3 Part C - Structure
C1: DC Input
C2: Battery Compartment
C3: Stand
C4: Wall Mount Hole
3. Outdoor Thermo Sensor
D1: Transmission Indication LED
D2: Wall Mount Hole
D3: Channel Select Switch
D4: “RESET” button
D5: Battery Compartment
D6: Stand
4. Getting Started:
4.1 Main Unit:
Remove rear compartment, plug in adapter or insert batteries.
When connecting with the adaptor on the premise that AAA batteries have been
installed correctly, this product will switch to the external power supply
automatically
4.2 Outdoor Thermo Sensor
Batteries compartment of thermo sensor is locating behind the back cover.
Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
