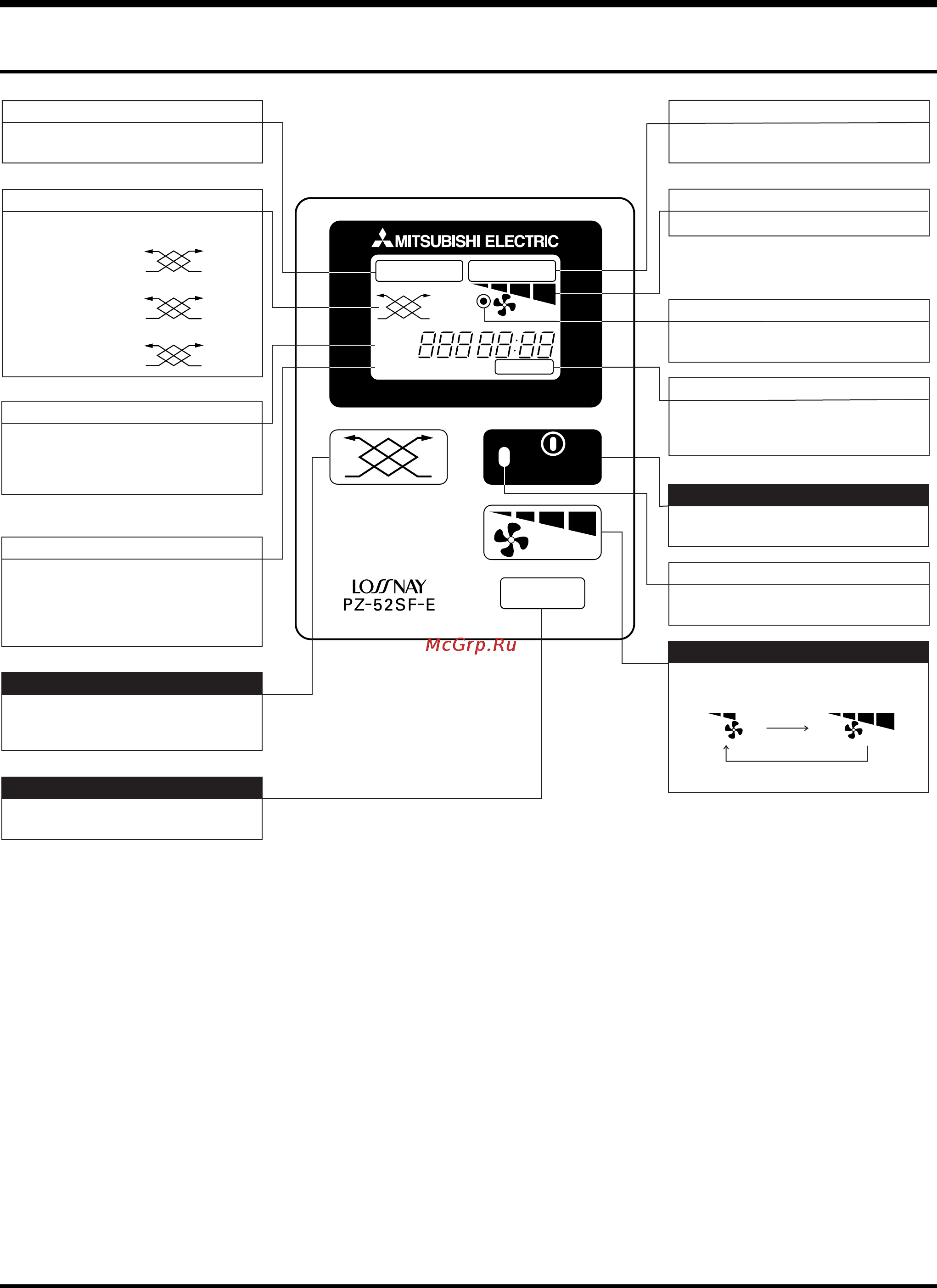

14. Lossnay M-NET Remote Controller
(PZ-52SF-E)
14.1 Operation
CENTRAL
HEAT EX.
BY-PASS
AUTO
CHECK
INTERLOCKED
FILTER
ON/OFF
NOT
AVAILABLE
FILTER
[CENTRAL] Display
Displayed when remote operation is
prohibited by a centralised control unit, etc.
Power Display
Displayed while Lossnay remote controller
is powered on.
[FILTER] Display
Displayed when the accumulated operating
time reaches the time set for air filter
maintenance.
[CHECK] Display
Displayed together with the address of the
malfunctioning unit (3 digits) and the error
code (4 digits).
(For detail, refer to the “11.Troubleshooting”)
Operation lamp
On during operation. Flashes when a
malfunction occurs.
Ventilation Modes
Indicates the ventilation mode.
Heat recovery
(Heat exchange.)
By-pass
Automatic
(Heat ex./By-pass)
[NOT AVAILABLE] Display
Displayed when the Lossnay unit cannot
perform the function for the button that has
been pressed. This display flashes
concurrently with the display of the
unavailable function.
[ON/OFF] Button
Switches between run and stop. The lamp
on the button stays lit during operation.
[Fan Speed Adjustment] Button*
Used to select the fan speed of either "Low"
or "High".
[FILTER] Button
Press two times to reset the filter sign
display.
HEAT EX.
BY-PASS
AUTO
Low High
[INTERLOCKED] Display
Displayed when the Lossnay unit starts due
to interlocked indoor unit or external signal.
[Fan speed] Display
Displays the selected fan speed.
[Function Selector] Button
Used to select the ventilation mode from
among heat recovery (Heat exchange), by-
pass or automatic.
*Note:
● If this button is pressed when trying to
switch the fan speed of a Lossnay unit not
equipped with the fan speed adjustment,
the fan speed display and the “NOT
AVAILABLE” display flash and the fan
speed does not change.
This remote controller can not be used on Lossnay units set for interlocked operation
with Mr. Slim units.
