1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

• Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

• Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

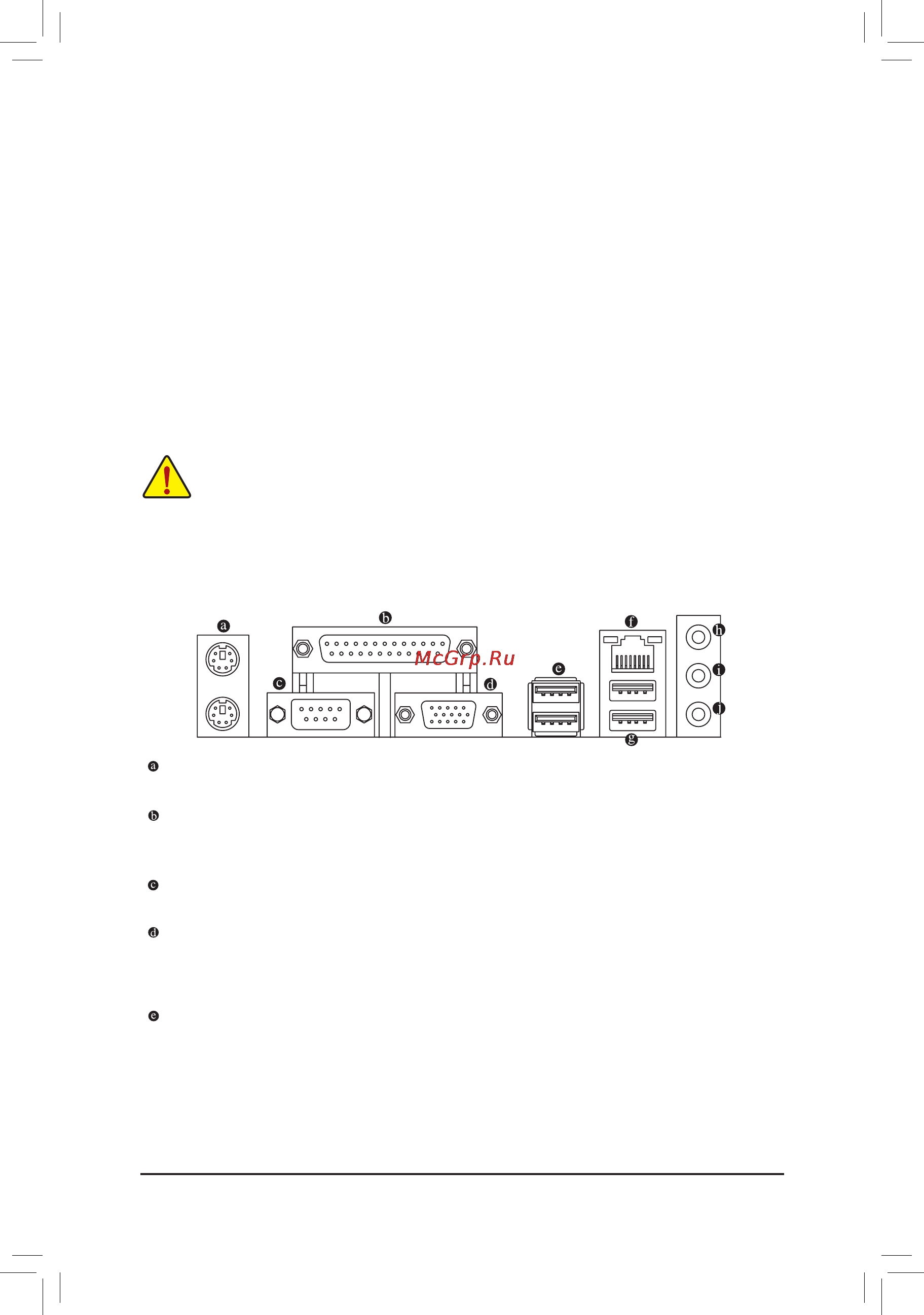

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

USB 3.0/2.0 Port

TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.

Use this port for USB devices.

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as

followingj:

Channel A: DDR4_1

Channel B: DDR4_2

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

followingk:

Channel A: DDR3_1

Channel B: DDR3_2

- 11 -

j Only for GA-H110M-DS2.

k Only for GA-H110M-DS2 DDR3.
