• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

• Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosidetoprevent

an electrical short inside the cable connector.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver. Please visit GIGABYTE's website for more

software information.

Mic In (Pink)

The Mic in jack.

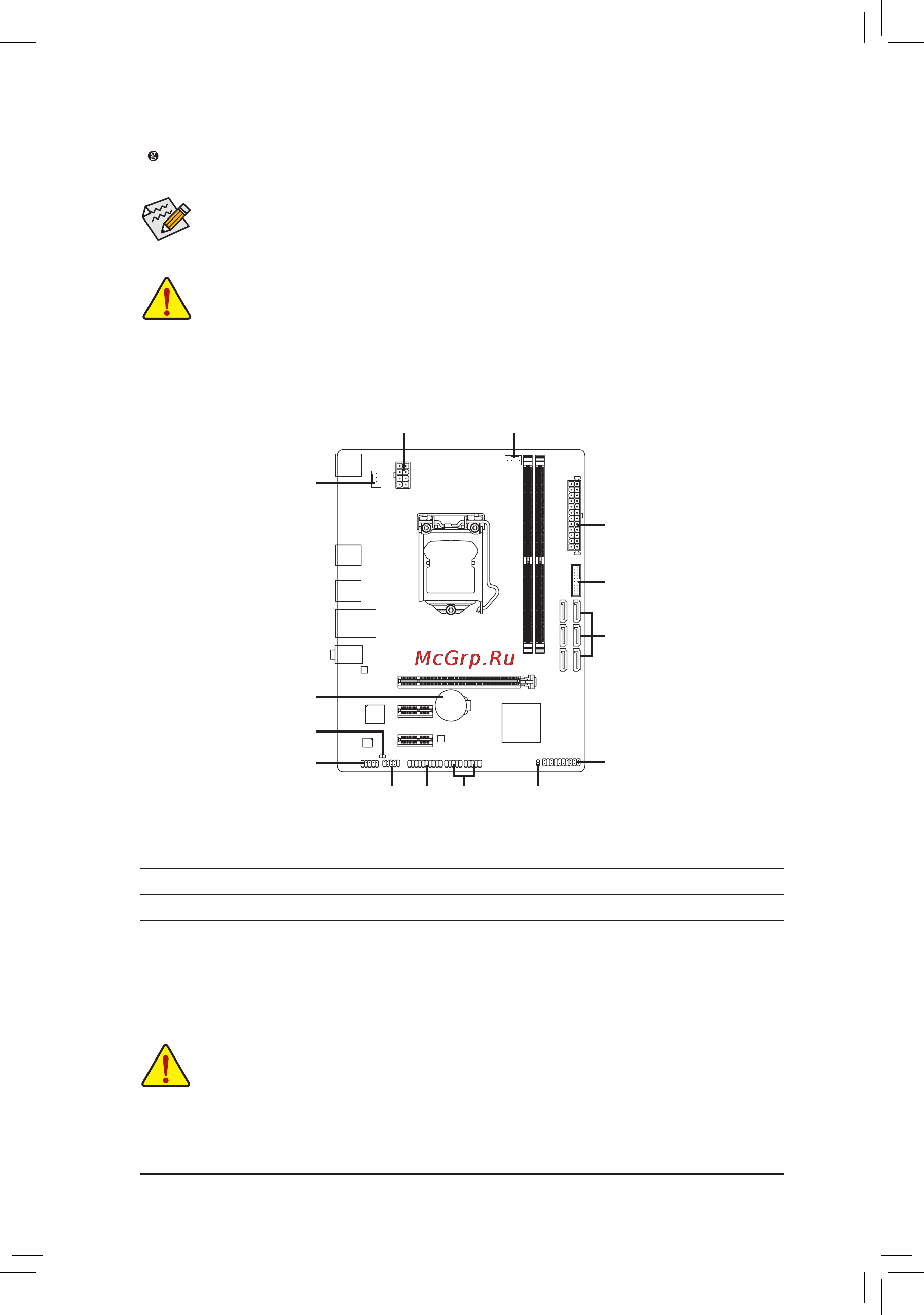

1-7 Internal Connectors

1213

1 3

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1/2/3/4/5

6) F_PANEL

7) F_AUDIO

8) SPDIF_O

9) CLR_CMOS

10) F_USB30

11) F_USB1/F_USB2

12) TPM

13) COM

14) BAT

Readthefollowingguidelinesbeforeconnectingexternaldevices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has been

securely attached to the connector on the motherboard.
