Gigabyte ga-b150m-d3v [20/41] Com serial port header

Pin No. Denition Pin No. Denition

1 NDCD- 6 NDSR-

2 NSIN 7 NRTS-

3 NSOUT 8 NCTS-

4 NDTR- 9 NRI-

5 GND 10 No Pin

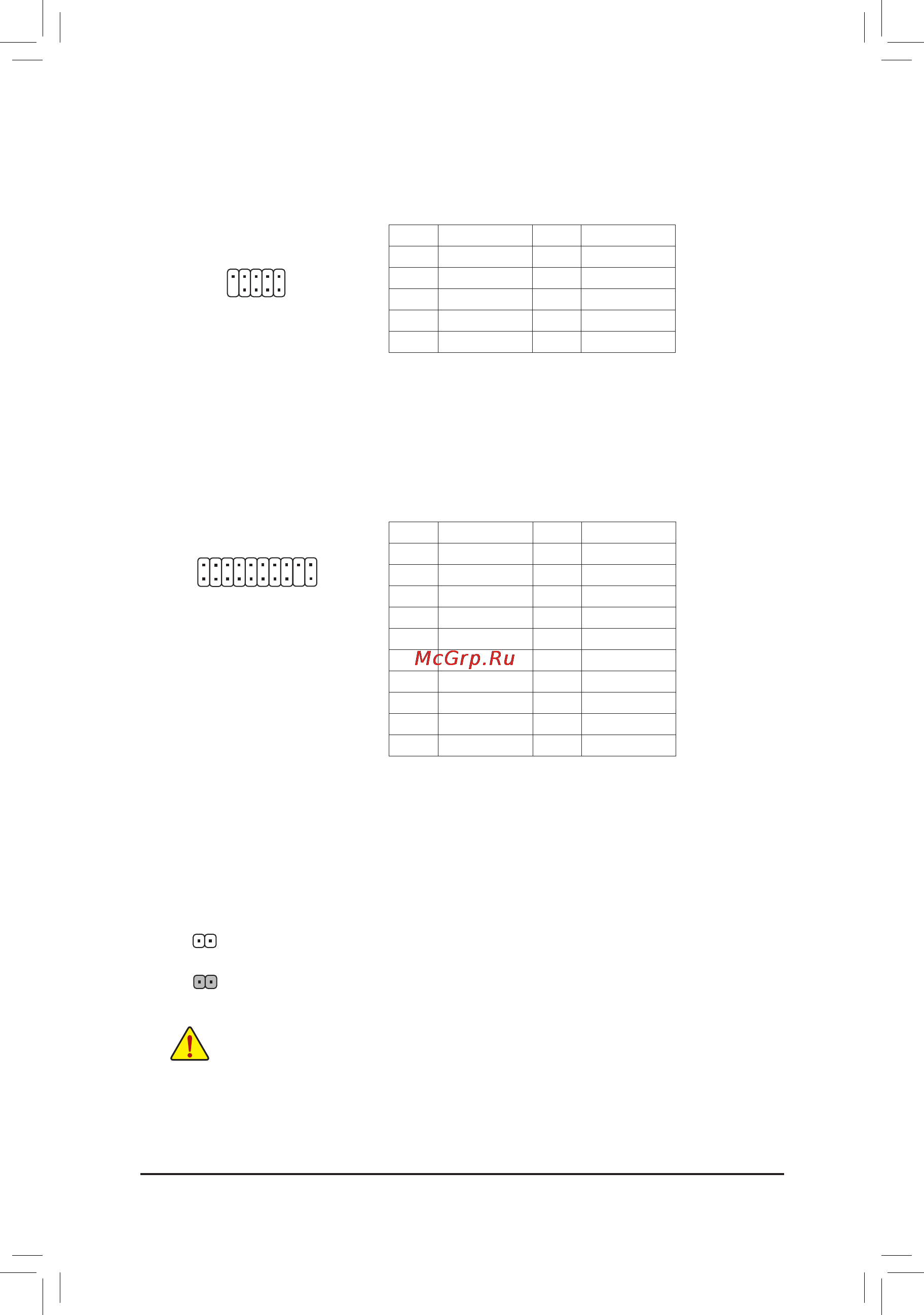

12) COM (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

DEBUG

PORT

G.QBOFM

14) CLR_CMOS (Clear CMOS Jumper)

Use this jumper to clear the BIOS conguration and reset the CMOS values to factory defaults. To clear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or

manually congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS congurations).

Open: Normal

Short: Clear CMOS Values

13) TPM (Trusted Platform Module Header)

You may connect a TPM (Trusted Platform Module) to this header.

Pin No. Denition Pin No. Denition

1 LCLK 11 LAD0

2 GND 12 GND

3 LFRAME 13 NC

4 No Pin 14 NC

5 LRESET 15 SB3V

6 NC 16 SERIRQ

7 LAD3 17 GND

8 LAD2 18 NC

9 VCC3 19 NC

10 LAD1 20 SUSCLK

- 20 -
