2.1. Hardware Installation

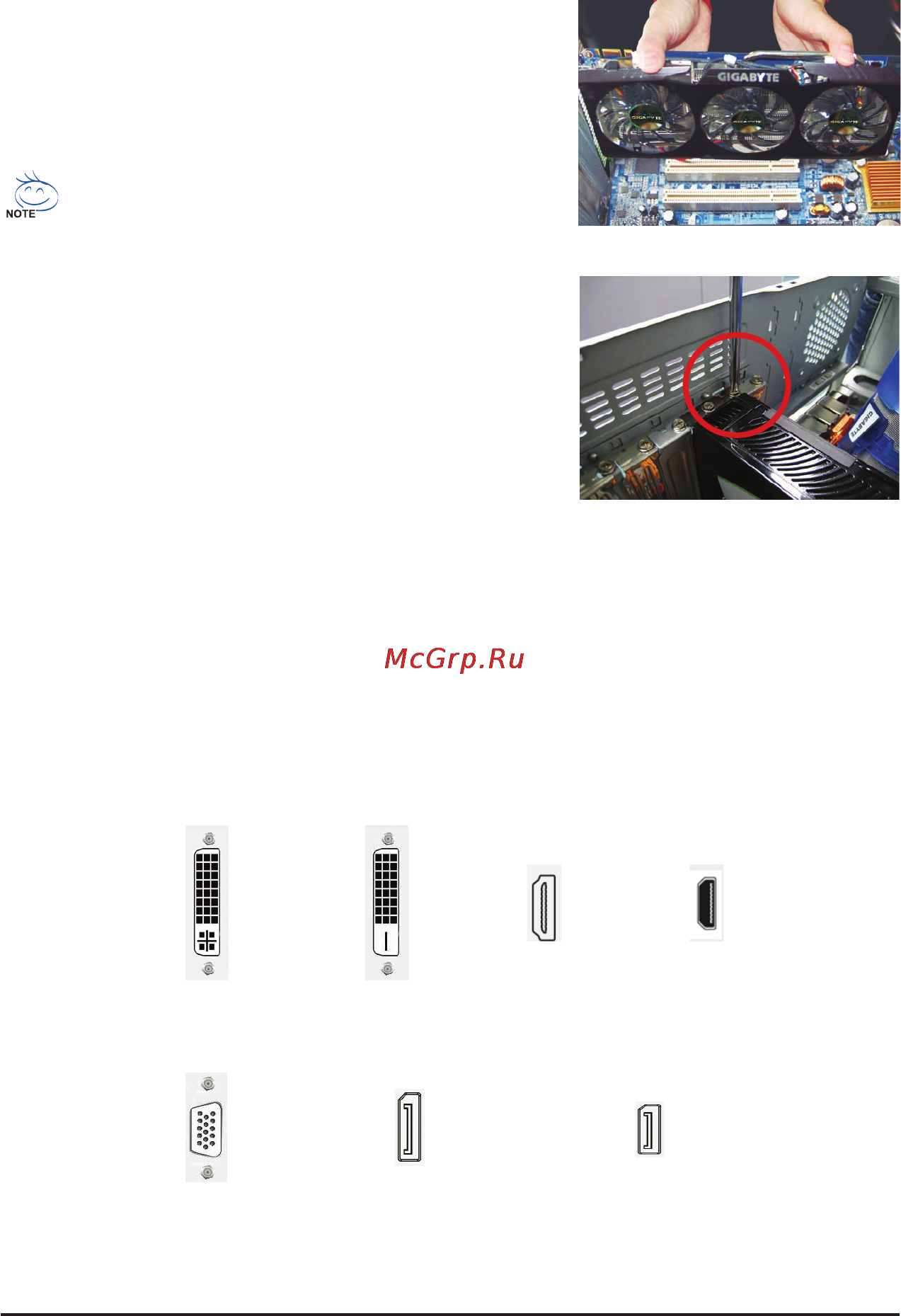

Now that you have prepared your computer, you are ready to install your graphics card.

Step 3.

Connect the appropriate cable to the card and the display.

To Flat Panel Display To Flat Panel Display To HDMI Monitor

To D-sub Monitor

To Mini HDMI Monitor

To Mini DisplayPort Monitor

Step 1.

Locate the PCI Express x16 slot. If necessary, remove the

metal cover from this slot; then align your graphics card

with the PCI Express x16 slot, and press it in rmly until the

card is fully seated.

Step 2.

Replace the screw to fasten the card in place, and replace

the computer cover.

Make sure that the gold edge connector of the graphics

card is securely inserted.

To Mini DisplayPort Monitor
