Chapter 2 Hardware Installation and Connection

GS1910/XGS1910 Series User’s Guide

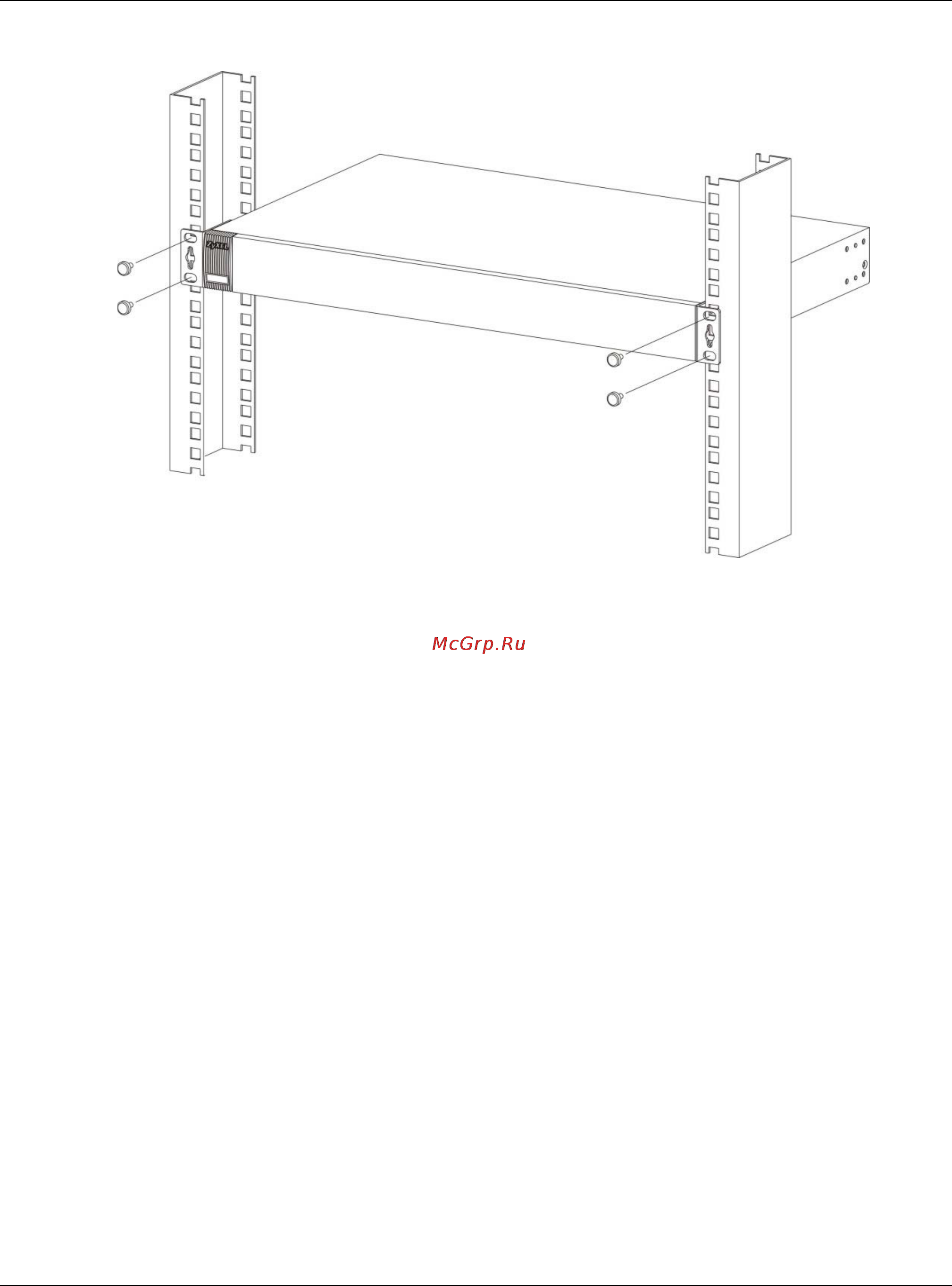

Figure 7 Mounting the Switch on a Rack

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes

into the rack.

3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
