P-791R v2 Quick Start Guide
2
Overview
The P-791R v2 is a G.SHDSL.bis Router providing high-speed LAN-to-LAN connection and
Internet access over the telephone line. You can use your P-791R v2 for either IP routing
or bridging depending on your ISP (Internet Service Provider) configuration.
This Quick Start Guide shows how to set up the P-791R v2 for Internet access.
See the User’s Guide for information about setting up point-to-point connections.

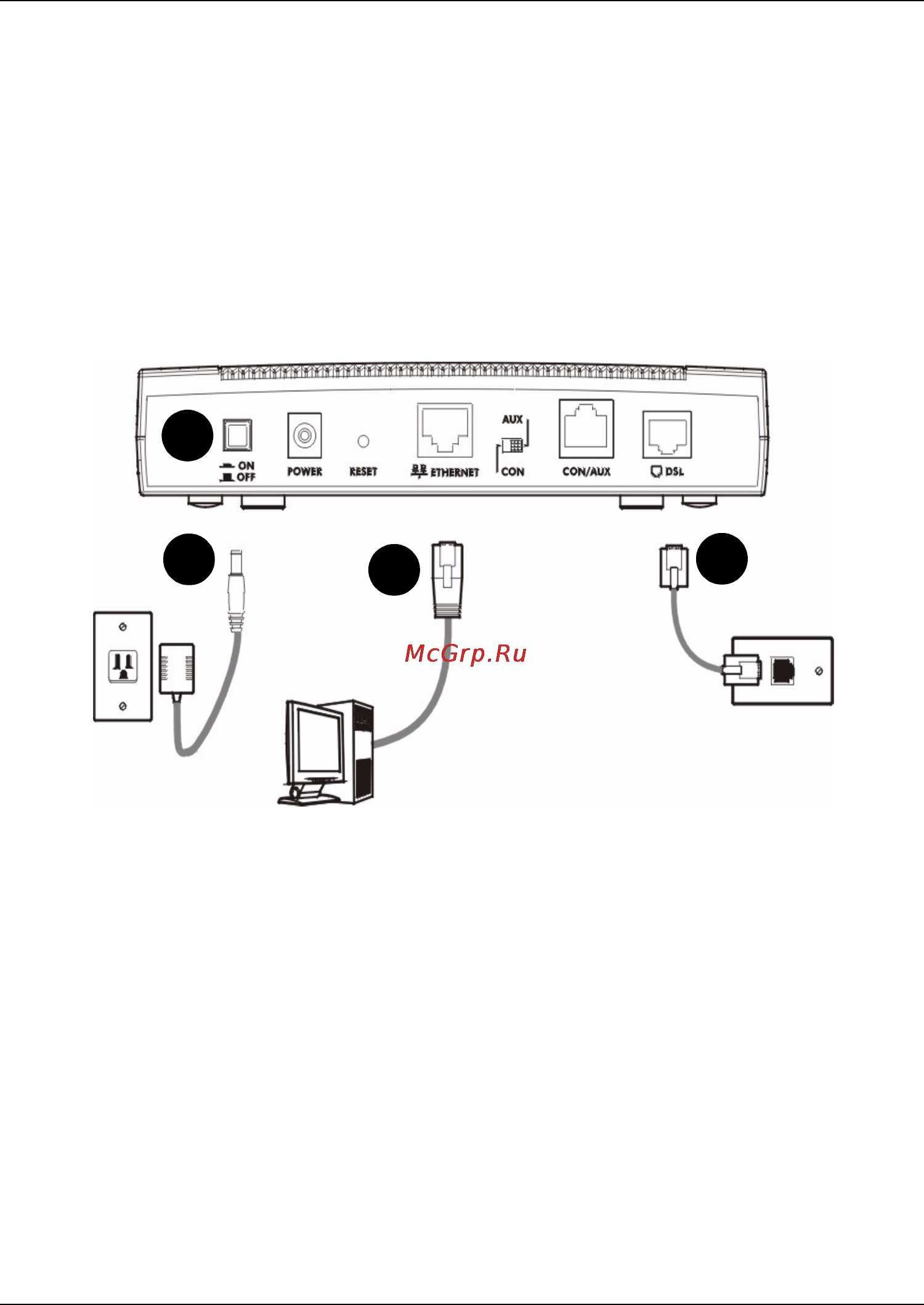

1 Hardware Connections
1DSL: Use the gray telephone wire to connect the P-791R v2’s DSL port to a telephone
jack.
2ETHERNET: Use the yellow Ethernet cable to connect a computer to the ETHERNET
port for Internet access or to configure the P-791R v2.
3POWER: Use the power adaptor provided with your P-791R v2 to connect an
appropriate power source to the POWER socket. Make sure the power source is on.
4 Push in the POWER button.
The CON/AUX port and corresponding CON, AUX switch are used when you want to set
up dial backup or use the console port. Make sure that the switch is set to AUX for dial
backup setup. See the User’s Guide for more details about these features.
1
2
3
4
