Appendix C Pop-up Windows, JavaScript and Java Permissions

LTE6101 User’s Guide

201

1 In Internet Explorer, click Tools, Internet Options and then the Security tab.

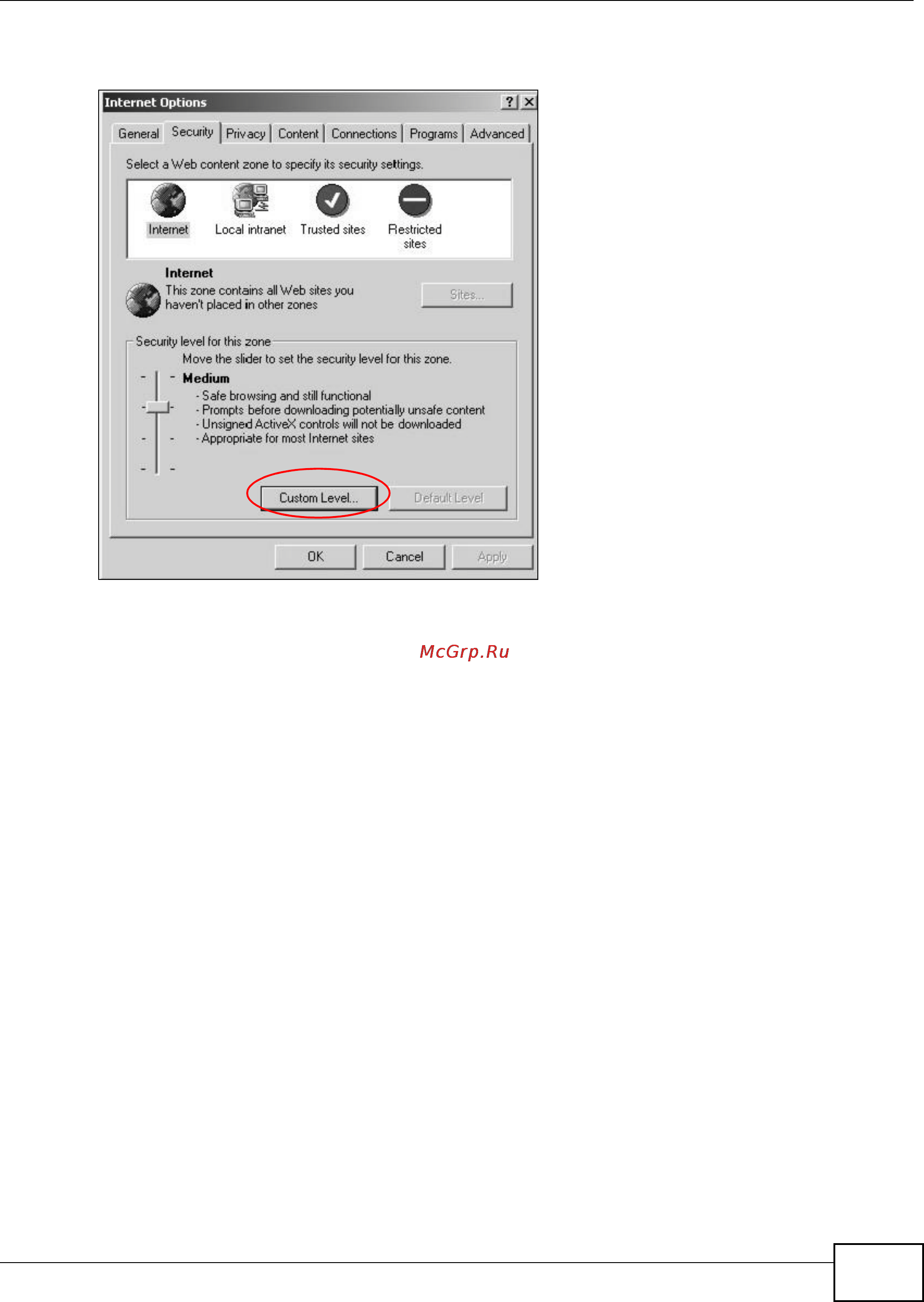

Figure 146 Internet Options: Security

2 Click the Custom Level... button.

3 Scroll down to Scripting.

4 Under Active scripting make sure that Enable is selected (the default).

5 Under Scripting of Java applets make sure that Enable is selected (the default).
