Hotpoint-Ariston 7hkrm 641 d x ru/ha [4/28] Electrical connection

Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could affect

the features and operation of the hob.

The thickness of the supporting surface

should be taken

into account when choosing

the length of the screws for

the fixing hooks:

• 30 mm thick: 17.5 mm screws

• 40 mm thick: 7.5 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment

springs in the holes provided at the central point of

each side of the hob.

2. Place the hob in the cavity, make sure it is in a

central position and push down on the whole perimeter

until the hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into the lower edges of the hob, using the

long pointed screws to fix them in place, until the glass

is stuck to the supporting surface.

! The screws for the alignment springs must remain

accessible.

! In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Electrical connection

! The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety

purposes and to make extracting the oven easier.

Terminal board

On the lower part of the appliance there is a

connection box for the different

types of electricity supply (the

picture is only an indication and

is not an exact representation

of the purchased model).

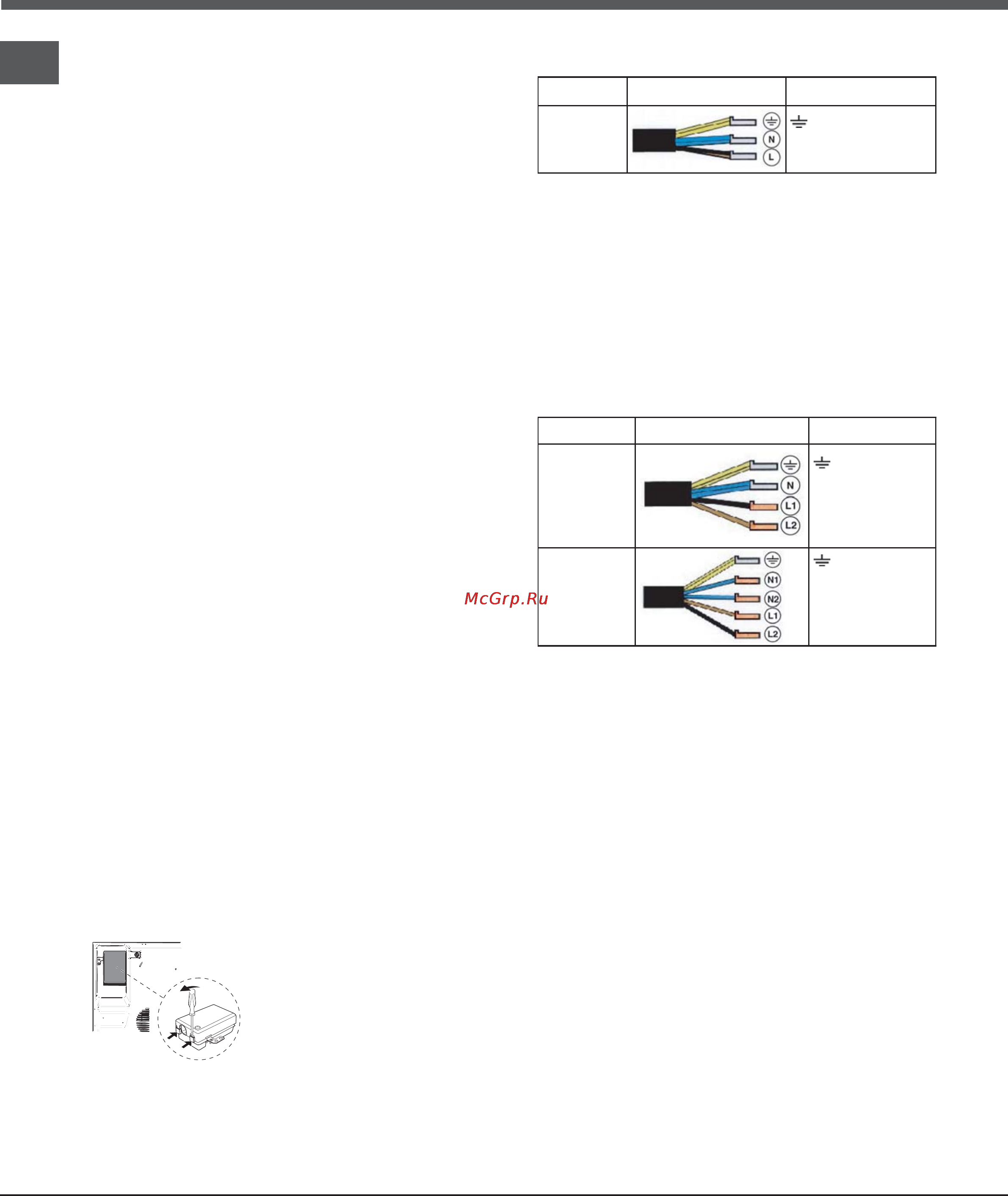

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with the

instructions given in the following table and diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

230-240V 1+N ~

220-240V 1+N ~

50/60 Hz

: yellow/green

: the two blue wires together

: brown and black together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

• 230-240V 3 ~ 50/60 Hz

• 400V - 2+2N ~ 50/60 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

400V - 2+N ~

50/60 Hz

230-240V 3 ~

220-240V 3 ~

50/60 Hz

: yellow/green;

N: the two blue wires

together

L1: black

L2: brown

400V - 2+2N ~

50/60 Hz

: yellow/green;

N1: blue

N2: blue

L1: black

L2: brown

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V 3 - N ~ 50/60 Hz

proceed as follows:

! The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher, with

the right dimensions (cable cross section: 25 mm).

2. To open the terminal board, use a screwdriver as

a lever under the side tabs of the cover (see Terminal

board picture).

3. Loosen the cable clamp screw and the terminal

board screws in accordance with the type of

connection required and position the connection

supports as shown in the following table and diagrams.

4. Position the wires in accordance with the information

given in the following table and diagrams and connect

the appliance by tightening all the screws for the

springs as much as possible.

UNDERSIDE OF HOB
