Kicker сx300.1 [3/10] Vertical mounting

Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the ground wire to the

ampliﬁ er. Make the ground wire short, 24” (60cm) or less, and connect it to a paint-and-corrosion-free, solid,

metal area of the vehicle’s chassis. Adding an additional ground wire of this same gauge (or larger) between the

battery’s negative post and the vehicle chassis is recommended.

The CX ampliﬁ er has dual input sensitivity differential RCA inputs which will receive either high or low level signals

from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the

stereo RCA input on the end panel of the ampliﬁ er using the KICKER ZISL as shown (make sure you set the CX

ampliﬁ er’s input level switch to “HI”). Alternatively, the signal can be delivered to the ampliﬁ er using the low-level

RCA outputs on the source unit. Set the input level switch on the end panel of the ampliﬁ er to “LO”. Either input

method will provide a low-level output signal at the RCA output, which effectively passes the audio signal to

another ampliﬁ er or component. Keep the audio signal cable away from factory wiring harnesses and other

power wiring. If you need to cross this wiring, cross it at a 90 degree angle.

source unit

high-level speaker

outputs

to ampliﬁ er

shield

double-slotted

bracket

–

core conductor

KICKER ZISL (optional)

source unit high-level

speaker outputs

to ampliﬁ er

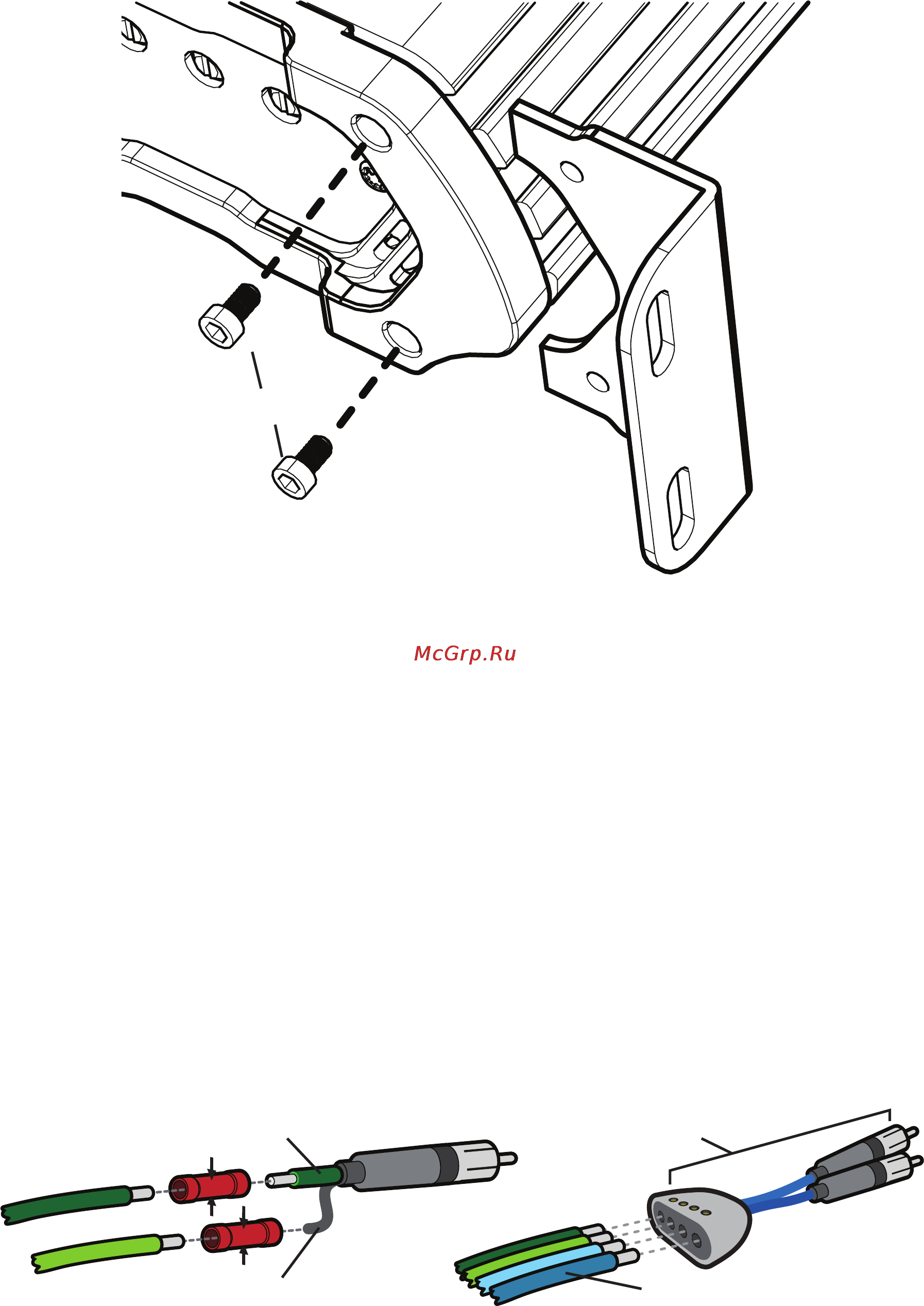

VERTICAL MOUNTING

hex screws

ampliﬁ er side panel
