ASSEMBLING AND PREPARING
2
2

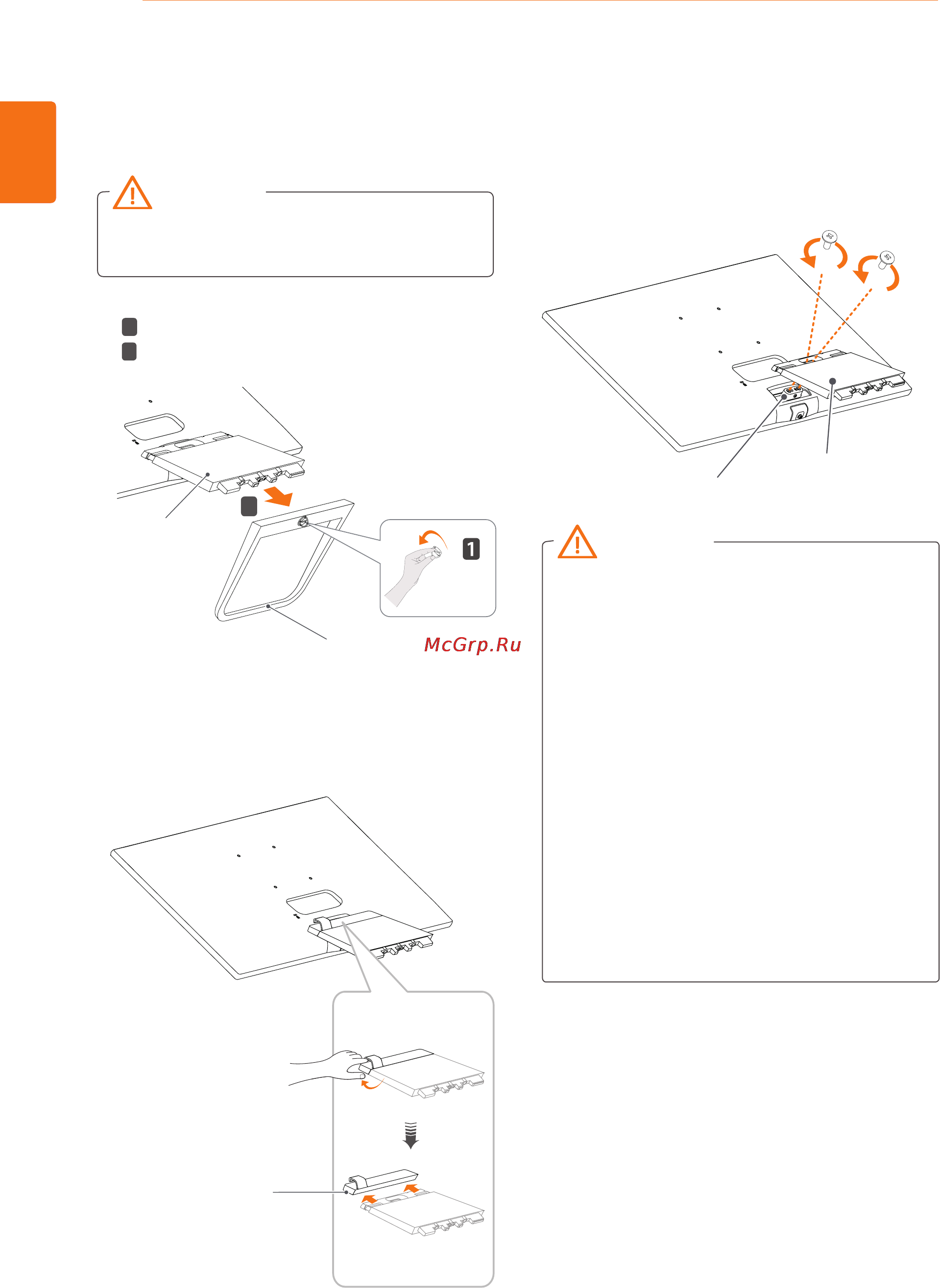

Detaching the Stand Base
2
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
1
2
Turn the screw to the left.
Pull out the
Stand Base
.
Stand Base
Stand Body
Cable holder
3
As shown in the illustration,put your hand on
the right groove of cable holder, pull cable
holder out to separate it from the set.
4
Remove the two screws on the back of
stand
body.
As shown in the illustration, disconnect the
stand body
from
the
stand hinge.
Stand Body
Stand Hinge
Screws
y
Illustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
y
Do not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result
in personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
y
If you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
CAUTION
