LSI SAS 9211-4i HBA Characteristics

Activity LED Header (J3). The LSI SAS 9211-4i HBA has a 4-pin, right-angle, 0.1-in. pitch header for driving external

activity LEDs. The 4-pin header connects to two LEDs, which indicate SAS activity on Port 0 and Port 1.

UART Connector (J5). The UART connector debug port requires a special cable and LSI support to gather detailed

Input/Output Controller (IOC) status.

5.3 Physical Characteristics

The LSI SAS 9211-4i HBA is a 6.6-in. x 2.713-in., low-profile board. The component height on the top and bottom of the

LSI SAS 9211-4i HBA is in accordance with the PCIe specification. The following figure shows the board connectors.

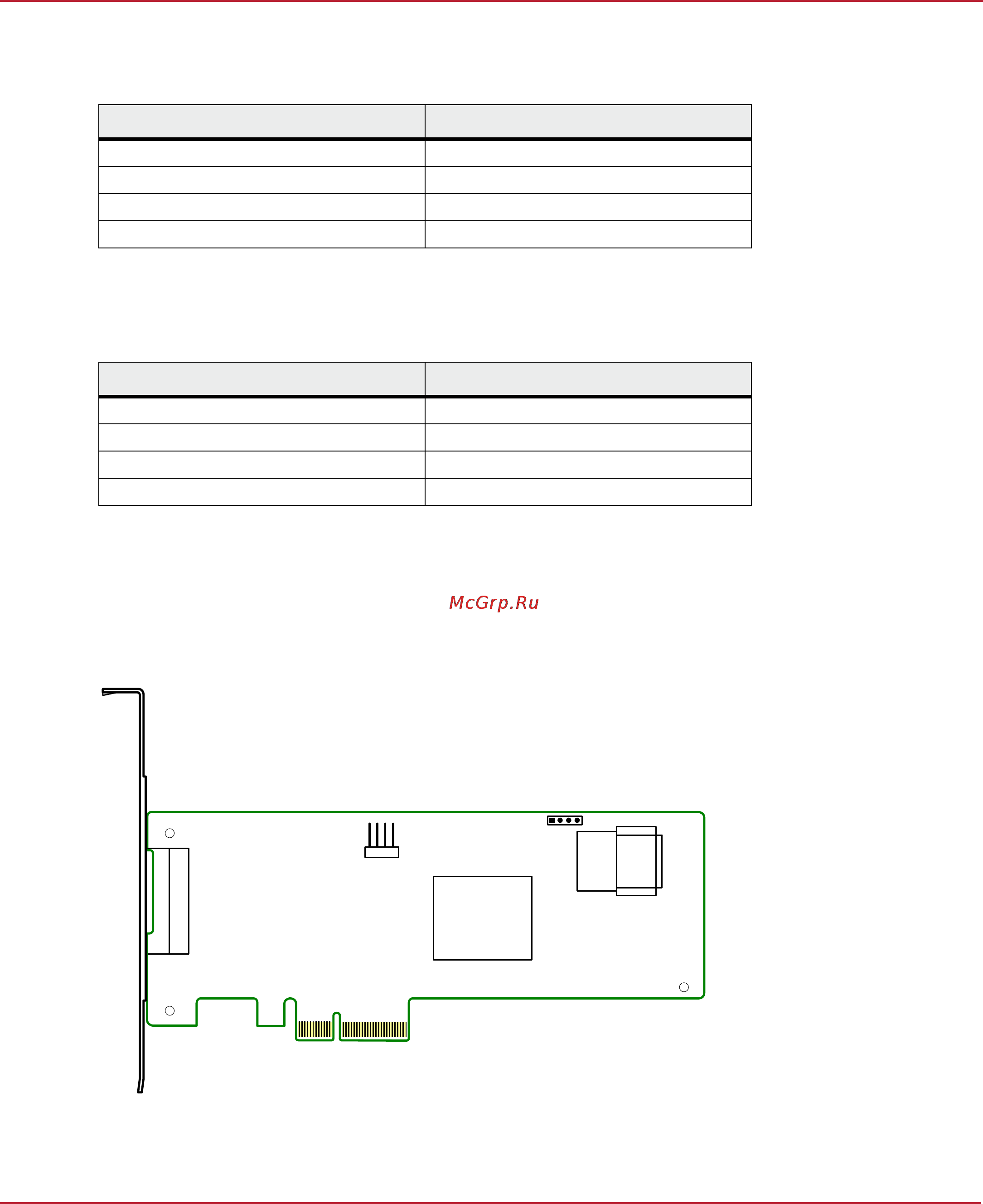

Figure 1 LSI SAS 9211-4i Board Layout

 J1: PCIe x4-lane board edge connector

 J3: 4-pin, right angle, 0.1-in. pitch, pin header for driving the external activity LED

Table 3 LSI SAS 9211-4i HBA LED Header Pinout

Pin Function

1 3.3 V

2 Port 0

3 Port 0

4 3.3 V

Table 4 LSI SAS 9211-4i UART Pinout

Pin Function

1 UART0_TX

2 Gnd

3 UART0_RX

4 3.3 V
