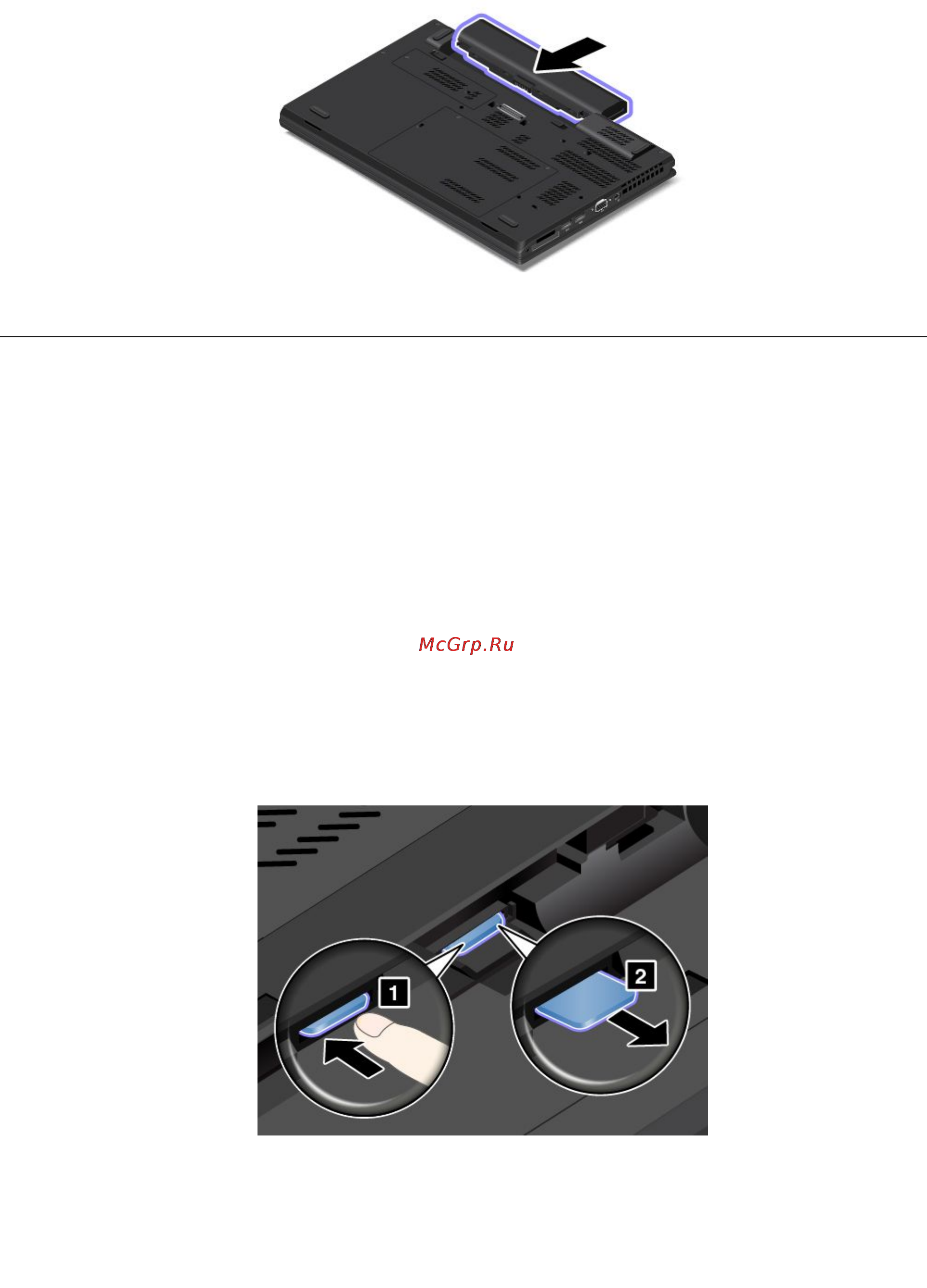

4.Insertanewbatterypackuntilitclicksintoplace.
5.Turnthecomputeroveragain.Connecttheacpoweradapterandallcablestothecomputer.
InstallingorreplacingtheSIMcard
Beforeyoustart,printtheseinstructions.
SIMcardisasmallplasticcardwithanIntegratedCircuit(IC)chipmountedononesideofthecard.
IfyourcomputerisequippedwithaSIMcardslot,yourcomputermightrequireaSIMcardtoestablish
wirelessWANconnections.Dependingonthecountryorregionofdelivery,youmightneedtopurchase
aSIMcard,oraSIMcardmightalreadybeinstalledinyourcomputerorispartoftheshippingcontents
thatcomewithyourcomputer.
ToinstallorreplacetheSIMcard,dothefollowing:
1.Turnoffthecomputer;thendisconnecttheacpoweradapterandallcablesfromthecomputer.Wait
threetoveminutestoletthecomputercool.
2.Closethecomputerlidandturnthecomputerover.
3.Removethebatterypack.See“Replacingthebatterypack”onpage65.
4.LocatetheSIMcardslotinsidethebatterycompartment.IftherealreadyisaSIMcardintheslot,
gentlypushtheSIMcardtoremoveitfromtheslot.
Chapter6.Replacingdevices67
