26
Robomow S models
EN

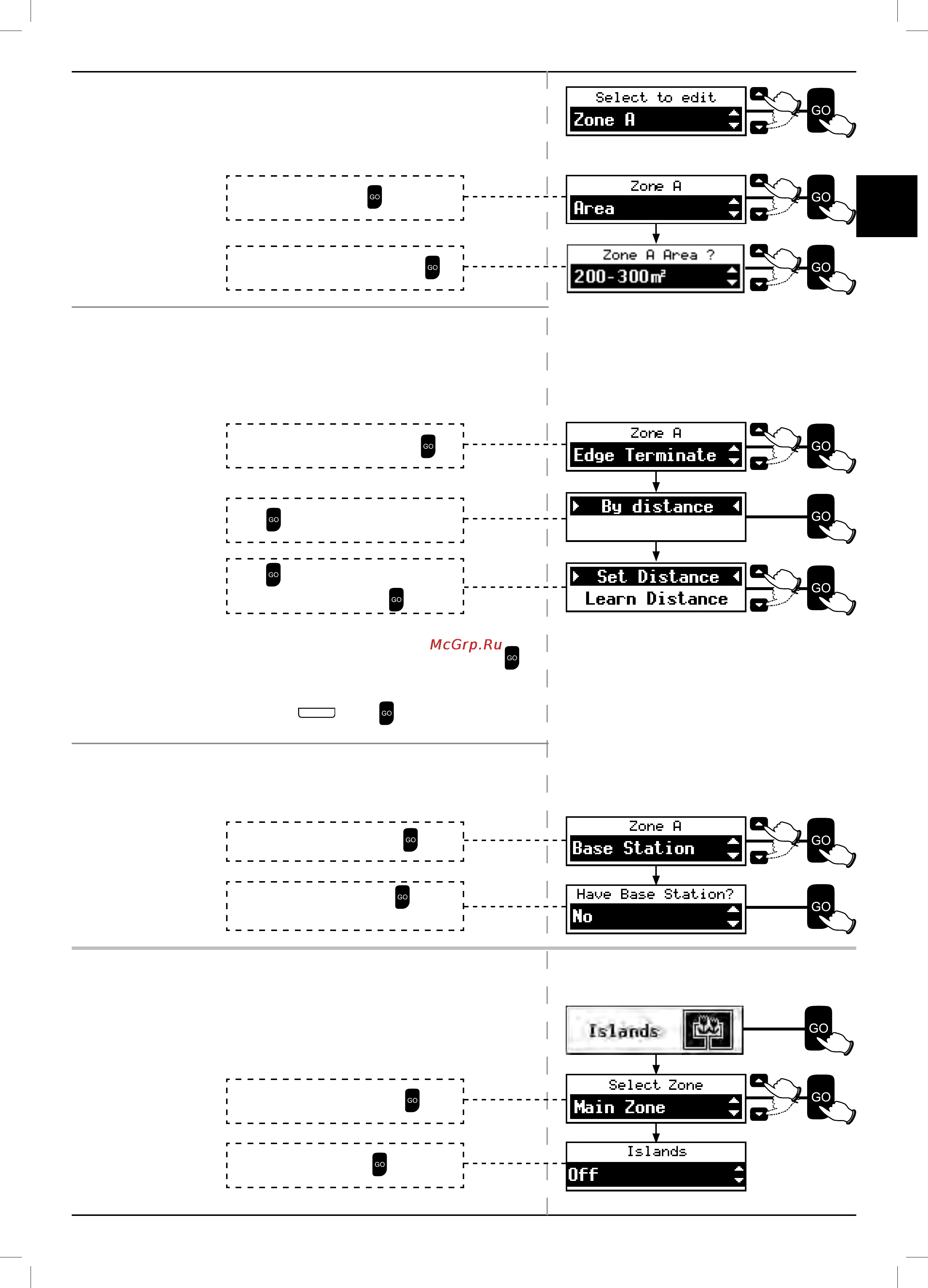

To edit a Separated Zone:
The following can be changed for a Separated Zone: Area, Edge
Terminate and Base Station.
P To change the Area of a Separated Zone:
Edge Terminate indicates to Robomow how far to mow the edge
before starting to mow the inner lawn.
P To change the Edge Terminate settings of a Separated Zone:
There are two methods of updating Edge Terminate:
Set Distance and Learn Distance.
) Set Distance:
) Learn Distance:
o Place Robomow facing the Perimeter Wire. Press .
Robomow will follow the Perimeter Wire.
o When Robomow has completed a full turn around the
Edge, press
S T O P
. Press to allow Robomow to
Learn the Distance.
If an additional Base Station has been added to a Separated
Zone, Base Station has to be set to Yes.
P To change the Base Station setting of a Separated Zone:
4.3.4 Islands
In rare cases, you may notice that the mower circles a Perimeter
Island unnecessarily while searching for the Base Station. The
Islands option helps overcome this situation. To avoid such cases,
turn the Islands feature On.
Scroll to select Base Station. Press .
Scroll to select Edge Terminate. Press
.
Press
to select By Distance.
Press
to select Set Distance.
Scroll to enter a Distance. Press
.
Scroll to select Yes and No. Press
.
Yes = an additional Base Station.
Scroll to select On/Off. Press
.
Scroll to select required Zone. Press
.
Scroll to select Area. Press
.
Scroll to select the new area size. Press
.
