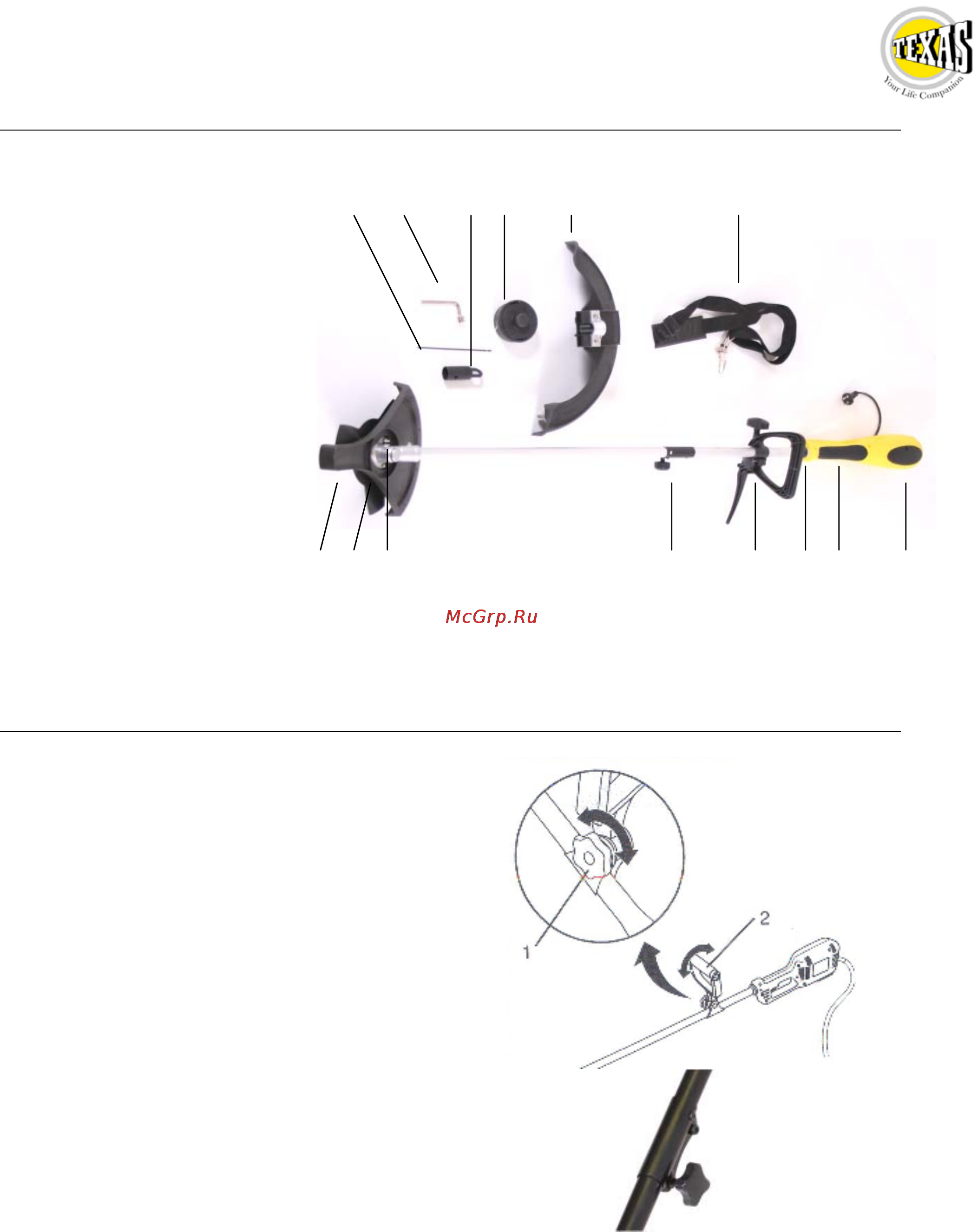

Identification of parts

1 2 3 4 5 6

7 8 9 10 11 12 13 14

1. Stick

2. Tool

3. Cap

4. Trimmer head

5. Protection for trimmer

6. Harness

7. Blade

8. Protection for blade

9. Bolt for lubrication

10. Quick lock

11. Handle

12. Hook for harness

13. Switch in the handle

14. Cord holder

Mounting

Fit the handle onto the shaft.

Turn the knob (1) to loosen the handle.

ust the position of the handle by slidin

along the shaft.

Make sure it is positioned comfortably.

Quick lock

Loosen the handle and press the pin to

detach or connect the trimmer shaft.
