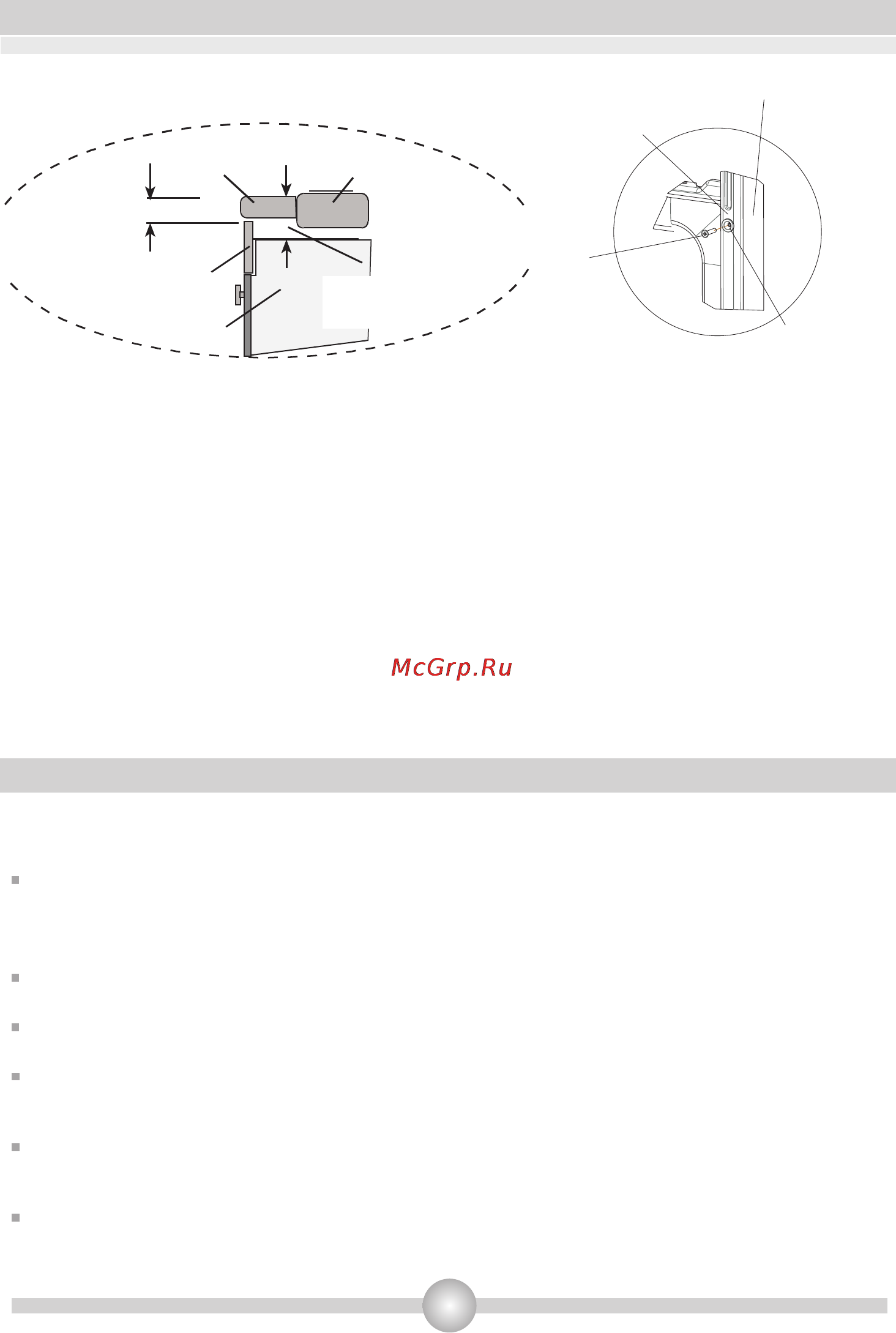

C DETAIL

Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in

the holes located on the oven frame. While the product frame touches the wooden surface of

cabinet, tighten the screws.

Product sizes

B DETAIL

Countertop

Built-in oven

Min.25mm

Control

panel

Distance between

countertop and

control panel

Min. 50mm

Built-in hob

Distance between

countertop snd

top panel of built-in

oven

Front

frame

Spacer

Mounting

screw

Wooden

part

The dimensions and material of the cabinet in which the oven will be installed must be

correct and resistant to increases in temperature. In a correct installation, contact with

electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to

ensure that they cannot be removed by using any kind of tool. Installing the appliance in the

close vicinity of a refrigerator or a deep-freezer is not recommended. Otherwise, the

performance of the above-mentioned appliances will be negatively affected due to

emanating heat. After removing your oven from its packaging, be sure that the oven is not

harmed. In case, you suspect of any damage to the appliance, do not use it; immeditely

contact Authorized Service.

3.3. WIRING AND SAFETY OF BUILT_IN OVEN

The instructions given below must be followed without fail during wiring :

The earthing cable must be connected via the screw with the earthing mark. Supply cable

connection must be as shown in Figure 1. If there is no earthed outlet conforming to

regulations in the installation environment, call the Authorized Service immediately.

The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.

The supply cable should not contact the product’s hot surface.

In case of any damage to the supply cable, make sure to call the Authorized Service. The

cable must be replaced by the Authorized Service.

Wiring of the appliance must be performed by the Authorized Service. H05VV-F type

supply cable must be used.

Faulty wiring may damage the appliance. Such a damage will not be covered under the

warranty.
