Makita tw0200 [5/12] Assembly
![Makita tw0200 [5/12] Assembly](/views2/1175284/page5/bg5.png)

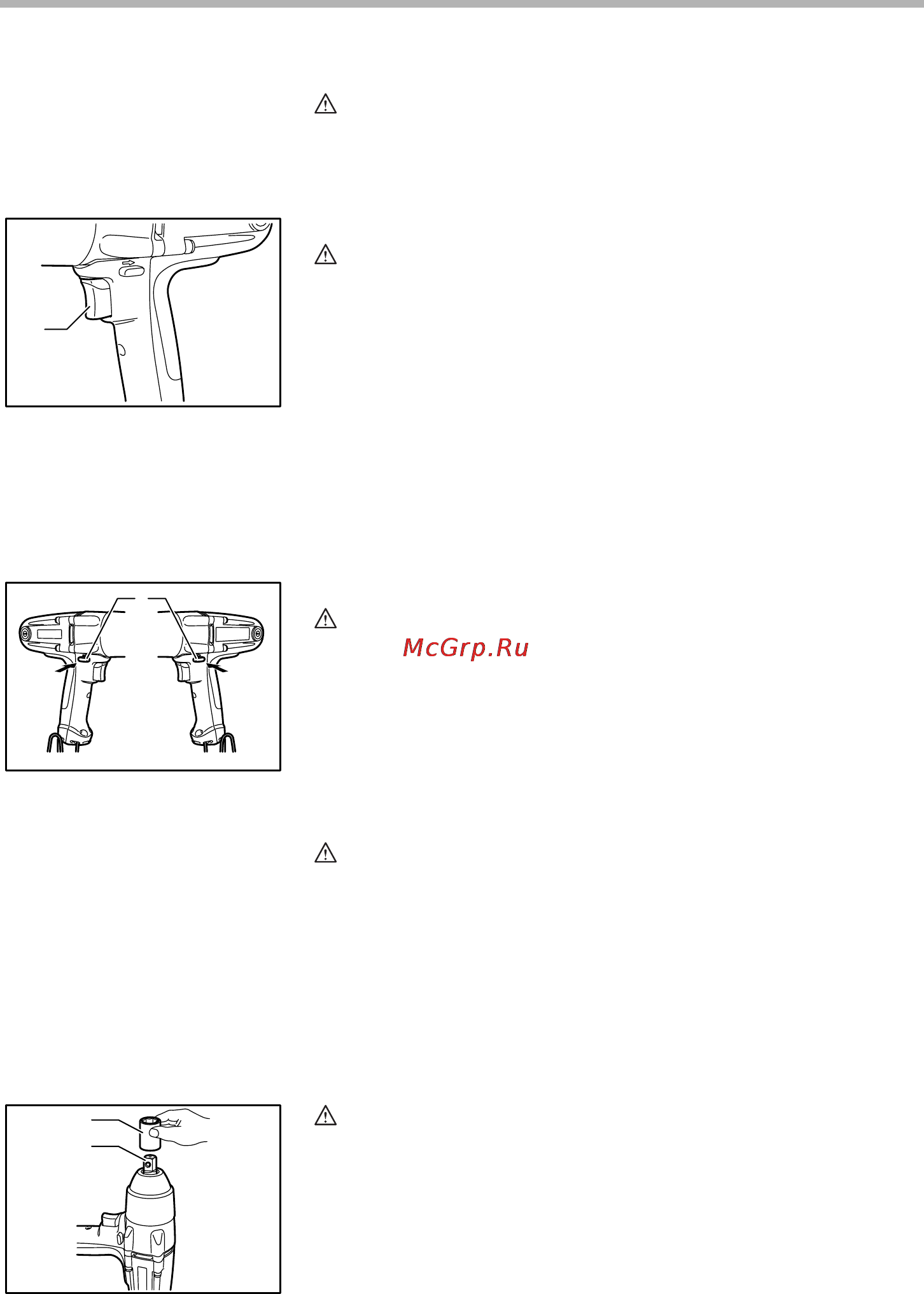

5
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF” position when released.
To start the tool, simply pull the switch trigger. Tool speed is increased by
increasing pressure on the switch trigger. Release the switch trigger to stop.
Holding the tool
Hold the tool only by the handle when performing an operation. Do not touch
the metal part.
Reversing switch action
CAUTION:
• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop.
Changing the direction of rotation before the tool stops may damage the
tool.
This tool has a reversing switch to change the direction of rotation. Depress
the reversing switch lever from the A side for clockwise rotation or from the B
side for counterclockwise rotation.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Selecting correct socket
Always use the correct size socket for bolts and nuts. An incorrect size socket
will result in inaccurate and inconsistent fastening torque and/or damage to the
bolt or nut.
Installing or removing socket
CAUTION:
• Always be sure that the tool is switched off and unplugged before
installing or removing the socket.
For socket without O-ring and pin
To install the socket, push it onto the anvil of the tool until it locks into place.
To remove the socket, simply pull it off.
1. Switch trigger
1
003996
1. Reversing switch lever
1
AB
003997
1. Socket
2. Anvil
1
2
003998
