To select an image in index view
To select an image in index view
Use FGHI to select an image, and press the A
button to display the selected image in single-image view.
To scroll an image in close-up view
To scroll an image in close-up view
Use FGHI to move the viewing area.
To stop [Photo Surfi ng]
To stop [Photo Surfi ng]
Use FG to select [ALL], then press the A button.

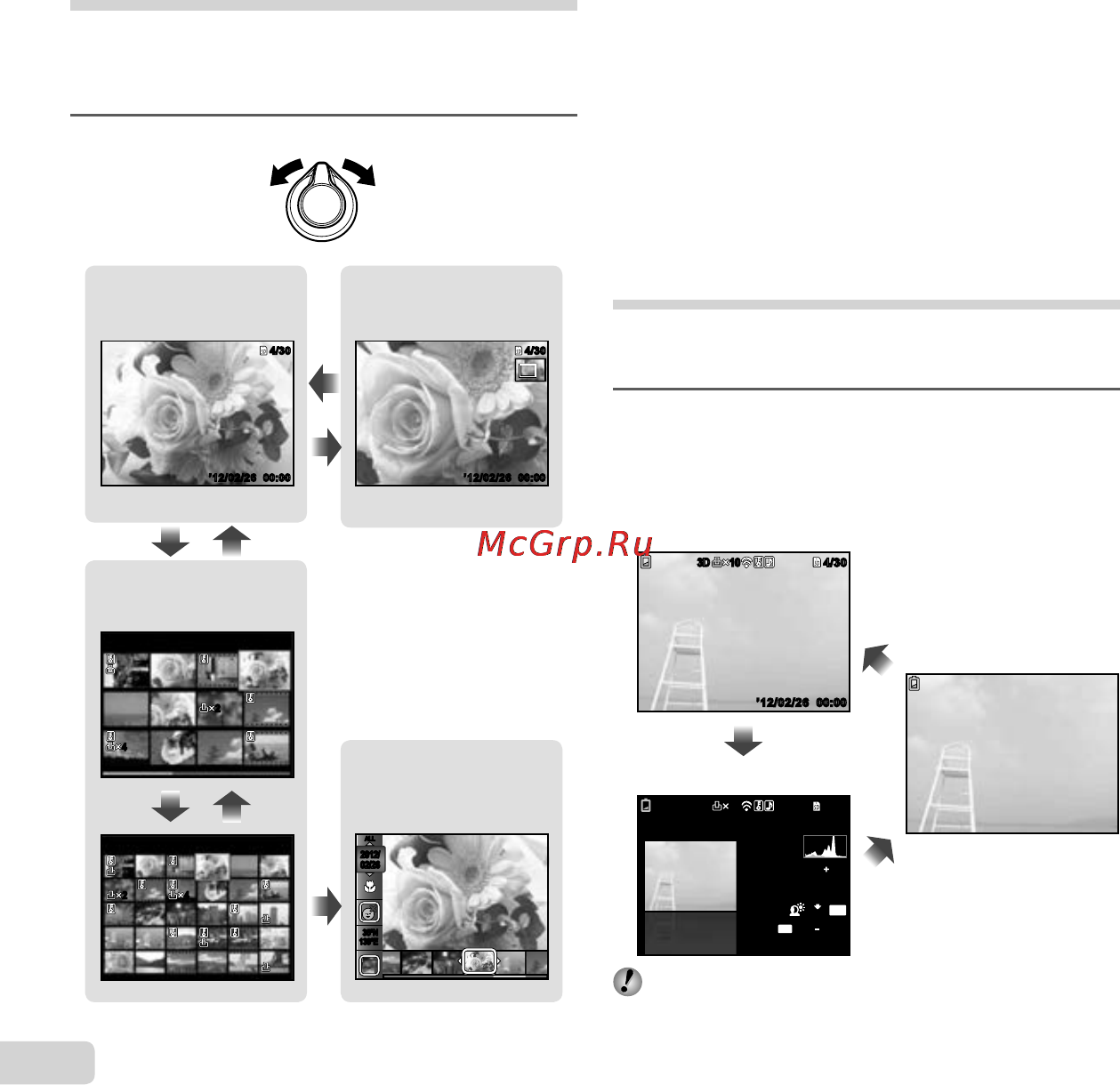

Changing the image information
display
Shooting information settings displayed on the screen can
be changed.
1
Press F (INFO).
●
The displayed image information changes in
the order shown below each time the button is
pressed.
00:00
4/304/30
4/304/30
1/1000 F3.0 2.0
AUTO
WB
100
ISO
P
FILE
100 0004
00:00
10103D3D
1010
00:00
’12/02/26
’12/02/26
’12/02/26
N
ORM
14
M
Normal
Detailed
No information
“Reading a histogram” (p. 20)
Index view and close-up view
Index view enables quick selection of a desired image.
Close-up view (up to 10x magnifi cation) allows checking
of image details.
1
Turn the zoom lever.
00:0000:00
4/30
4/30
00:00
00:00
WT
W
T
4/304/30
42
WT
24
’12/02/26’12/02/26 ’12/02/26
’12/02/26
’12/02/26
’12/02/26
44
22
35ºN
139ºE
35ºN
139ºE
ALLALL
2012/
02/26
2012/
02/26
W
Index view
Single-image view Close-up view
Photo Surfi ng
(p. 41)
