Keep your Lil’ Kick scooter running for years with genuine Razor parts. Visit our web site to purchase replacement parts.
(Specicationssubjecttochangewithoutnotice.)

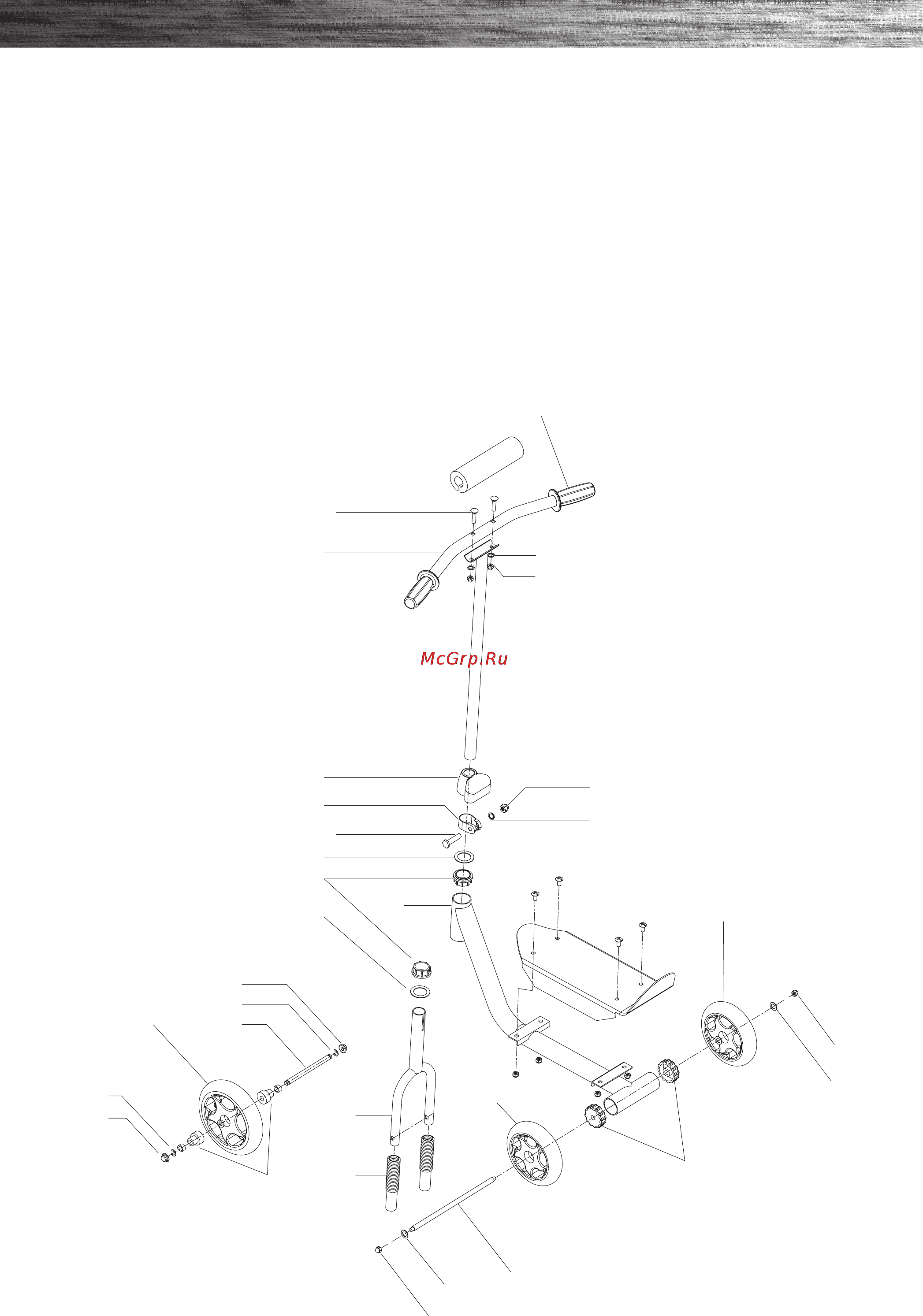

lil’ KicK parts
4
1 Handlebar Grips
2 HandlebarPad
3 Handlebar
3-1 Bolt(x2)
3-2 Washer(x4)
3-3 Nut(x2)
4 Stem
5 CollarClampCover
6 Collar Clamp
6-1 Bolt
6-2 Washer
6-3 LockNut
7 PlasticWasher(x2)
8 PlasticHeadset
9 Frame
10 FrontWheel
10-1 FixedCap(x2)
10-2 CClip(x2)
10-3 FrontAxle
10-4 FrontWheelBushing/
Spacer(x4)
11 Front Fork
11-1 ForkCover(x2)
12 RearWheel(x2)
13 RearAxleBolt
13-1 RearTubeCover(x2)
13-2 Washer(x2)
13-3 Nut(x2)
1
2
3-1
3
1
4
5
6-3
3-2
3-3
6-2
6
6-1
7
7
8
10-1
10-2
10 10-3
10-2
10-4
11
12
12
13-2
13
13-2
13-1
11-1
10-1
9
13-3
13-3
