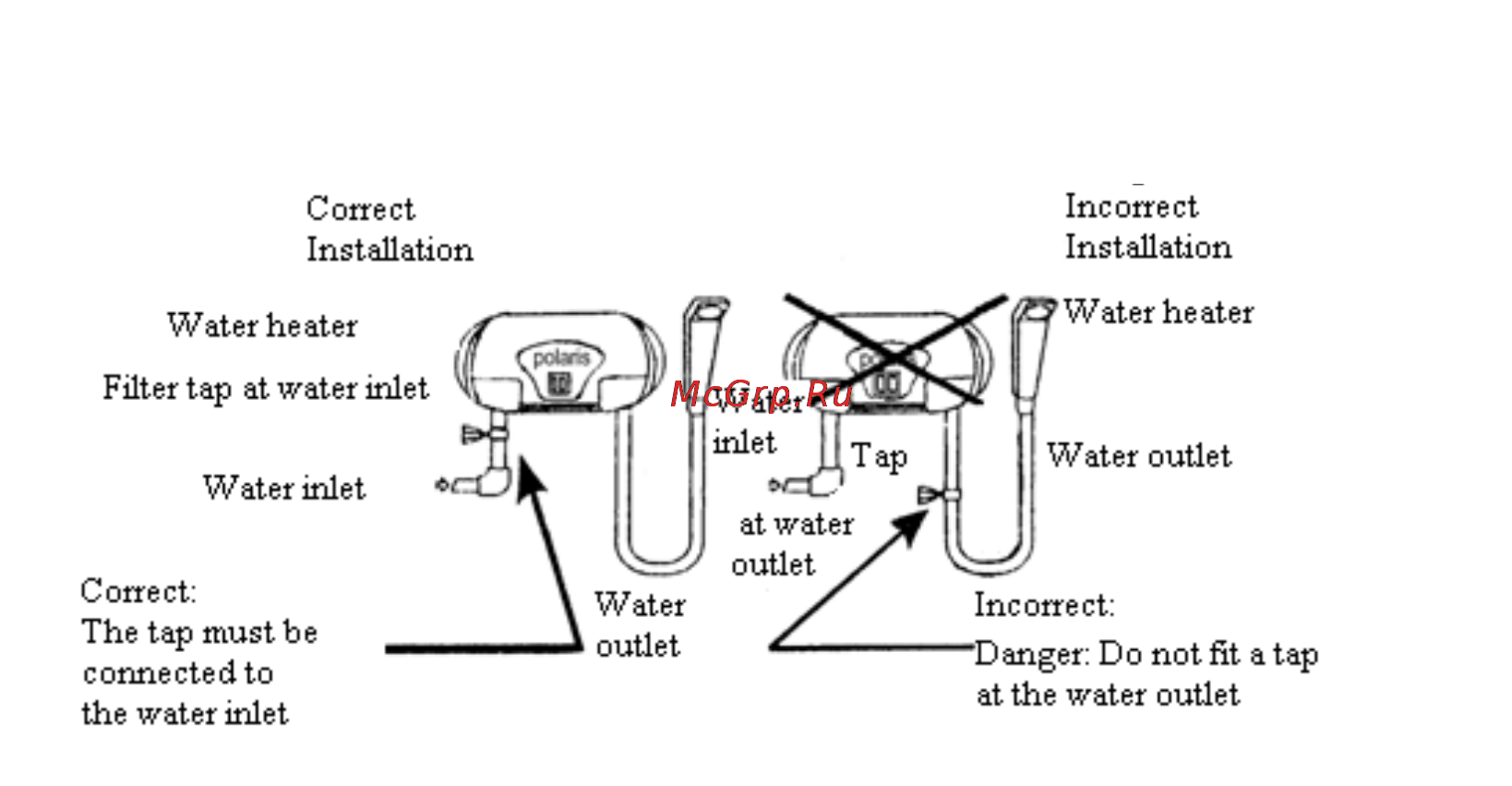

Scheme 2. Water heater setting

 The cold water input is marked by the blue color

 The hot water output is marked by the red color

1. For taking off the cover from the base you should turn off two screws which fasten the cover

to the base.

2. Mount the heater on the wall in its predetermined place, straight and level, with the water

inlets and outlets facing downwards. To do so, mark the 3 spots for the holes on the wall and

drill the holes using a 6 mm drill; place the enclosed splay-winged, plastic pins ("dibbles")

into each hole and connect the heater firmly to the wall using the 3 enclosed screws.

3. Join the water inlet pipe to the water heater and be sure that there are no leakages. In the

water heater of the type "GAMMA" do not set up a valve at the water outlet or any other shut

off devices.

4. The water heater links to a separate electric wiring. It is necessary to install a special power

point (plug-in socket) with the grounding terminal. For that you must install a ground lead

from the flat(main) electrical control panel and connect the lead with the side contacts of the

appliance receptacle.

5. Connect up three electric wires according to the colors of insulation. Be sure that you connect

the wires right and carefully especially the yellow lead. (it is wiring grounding).

ATTENTION PLEASE! First you should fill in the vacuum bottle with the water, the

water heater is full when the water will flow continuously from the shower, and only

then switch the water heater on. If you do not do this, the heating unit can blast or the

plastic parts can be burnt or the appliance can stop working.
