bar and up to the maximum pressure - about 6 bars.

Scheme 1. Electrical wire-lead termination

1. Two pole switch

2. Electrical connectors

3. Thermostat which shuts off at 57 degrees Celsius

Micro switches

5. Light bulb in switch

6. Pressure switch – pressurestat

7. Switch: Position 1 – low 3.5 KW

Position 2 – low 3.5 KW

Position 3 – high 7 KW

8. Heating Element 1 - low 3.5 KW

9. Heating Element 2 – low 3.5 KW

B. Special recommendations

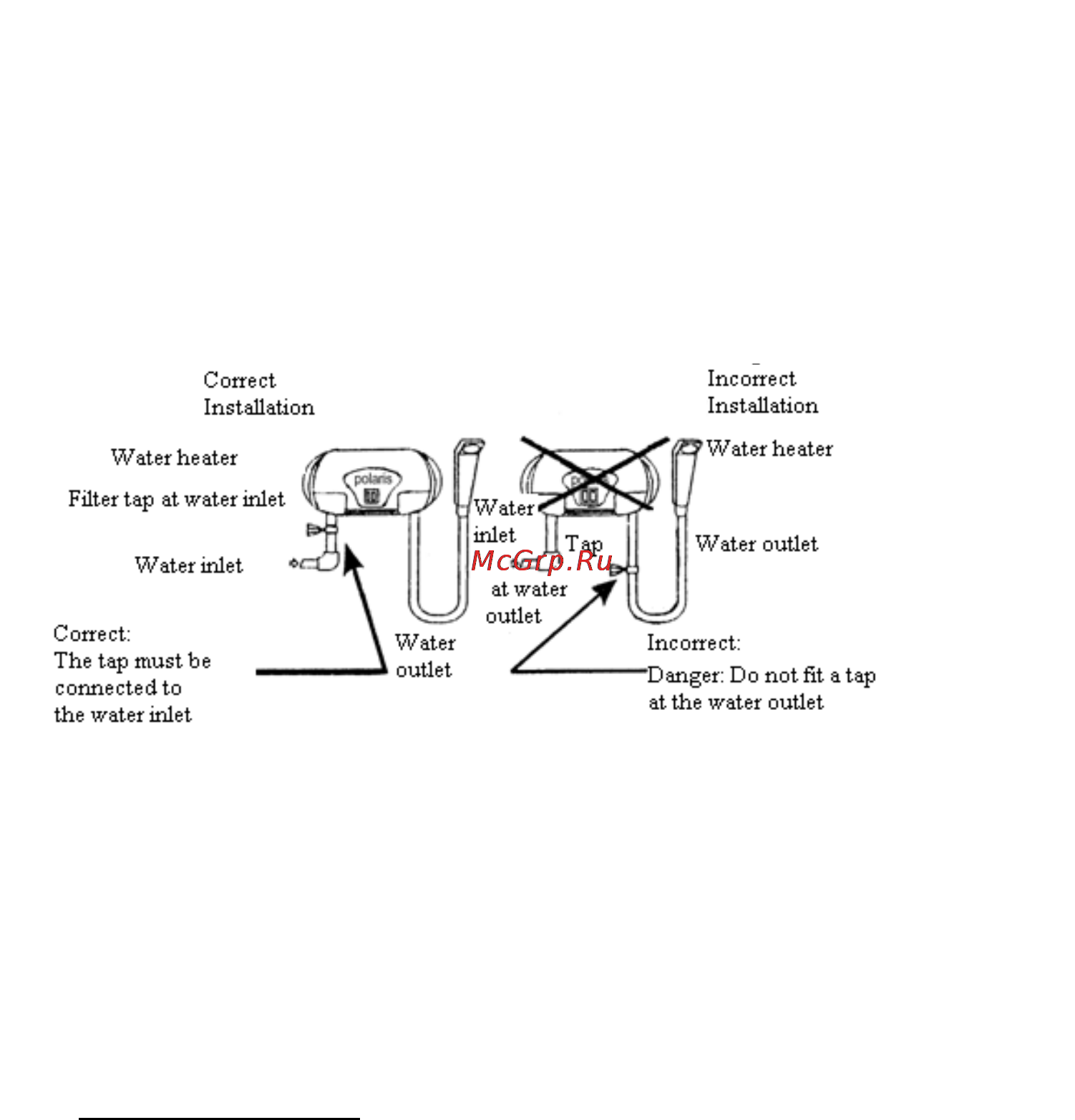

Scheme 2. Water heater setting

 The cold water input is marked by the blue color

 The hot water output is marked by the red color

1. For taking off the cover from the base you should turn off two screws which fasten the cover to

the base. The screws are situated under the covers.

2. Mount the heater on the wall in its predetermined place, straight and level, with the water inlets

and outlets facing downwards. To do so, mark the 3 spots for the holes on the wall and drill the

holes using a 6 mm drill; place the enclosed splay-winged, plastic pins ("dibbles") into each

hole and connect the heater firmly to the wall using the 3 enclosed screws.
