◆Do not barrier vent in order to ventilate well and dissipate in time.

◆Connect the fixture with power source, which has a ground line, and voltage of power

source should accord with rating voltage.

◆If fuse was damaged, change the same type.

◆You can only choose accessories the manufacturer provides when need repairing.

◆Ambient temperature of the lamp should not exceed 40℃

◆If any problem, contact with professional technicians working in our after-sales service

department.

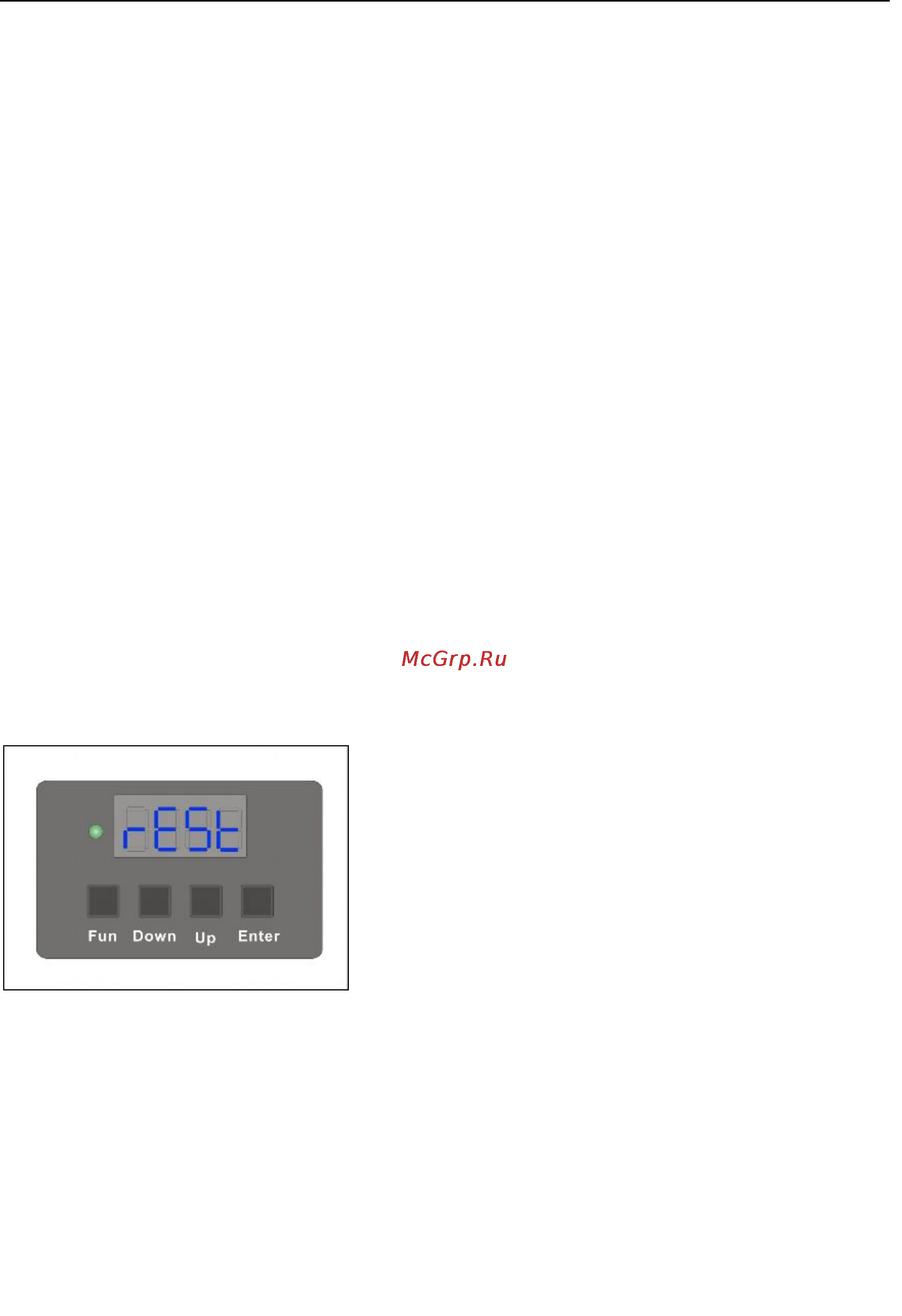

PANEL REVIEW

Press FUN button: Switch to function menu or return to previous menu

Press UP/DOWN: Adjust current activated field. If the four point twinkle, indicating value

has been changed.

Press ENTER: Enter into sub-menu or confirm the current value.

INSTALLATION AND SETTING

1. MULTI-FIXTURES CONNECTION

DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain

connection is where the DATA OUT of one fixture connects to the DATA IN of the next

fixture. The order in which the fixtures are connected is not important and has no effect on

how a controller communicates to each fixture. Use an order that provides for the easiest

and most direct cabling. Connect fixtures using shielded two conductor twisted pair cable

with three pin XLR male to female connectors.
