Chapter 2: Installation
2-27
KB/MS
Fan8
(CPU1Fan)
IPMI LAN
USB 0/1
COM1
PHY
VGA
LAN1
LAN2
LAN CTRL
BMC CTRL
BIOS
COM2
USB6
USB7
USB4/5
JTAG Of CPLD
JPI2C
P1-DIMM3A
P1-DIMM3B
P1-DIMM2A
P1-DIMM2B
P1-DIMM1A
P1-DIMM1B
P2-DIMM1B
P2-DIMM1A
P2-DIMM2B
P2-DIMM2A
P2-DIMM3B
P2-DIMM3A
LE2
JUIDB
JPL1
J10
UIOP
SXB2: PCI-E 2.0 x 8
SXB1: PCI-E 2.0 x 16
SXB3: PCI-E 2.0 x 8 in x 4 Slot
J1
J2
J3
JPG1
Fan6
IPMB
JI2C1
JBT1
J13
J14
J12
Fan5
JL1
USB2/3 JLPC1
CPU2
CPU1
Intel 5520
IOH]
Intel ICH10R
South Bridge
T-SGPIO2
T-SGPIO1
J17
JWD
JF1
JOH1
LE1
Fan4
Fan3
SP1
Buzzer
JBAT1
Battery
Fan2
Fan1
JPW1
JPW3
JPW2
JD1
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
I-SATA0
X8DTU/-F
Fan7(CPU2 Fan)
FP CTRL
CPLD
PWRLED/SPK
Rev. 2.01
JPB
JI2C2
JP3

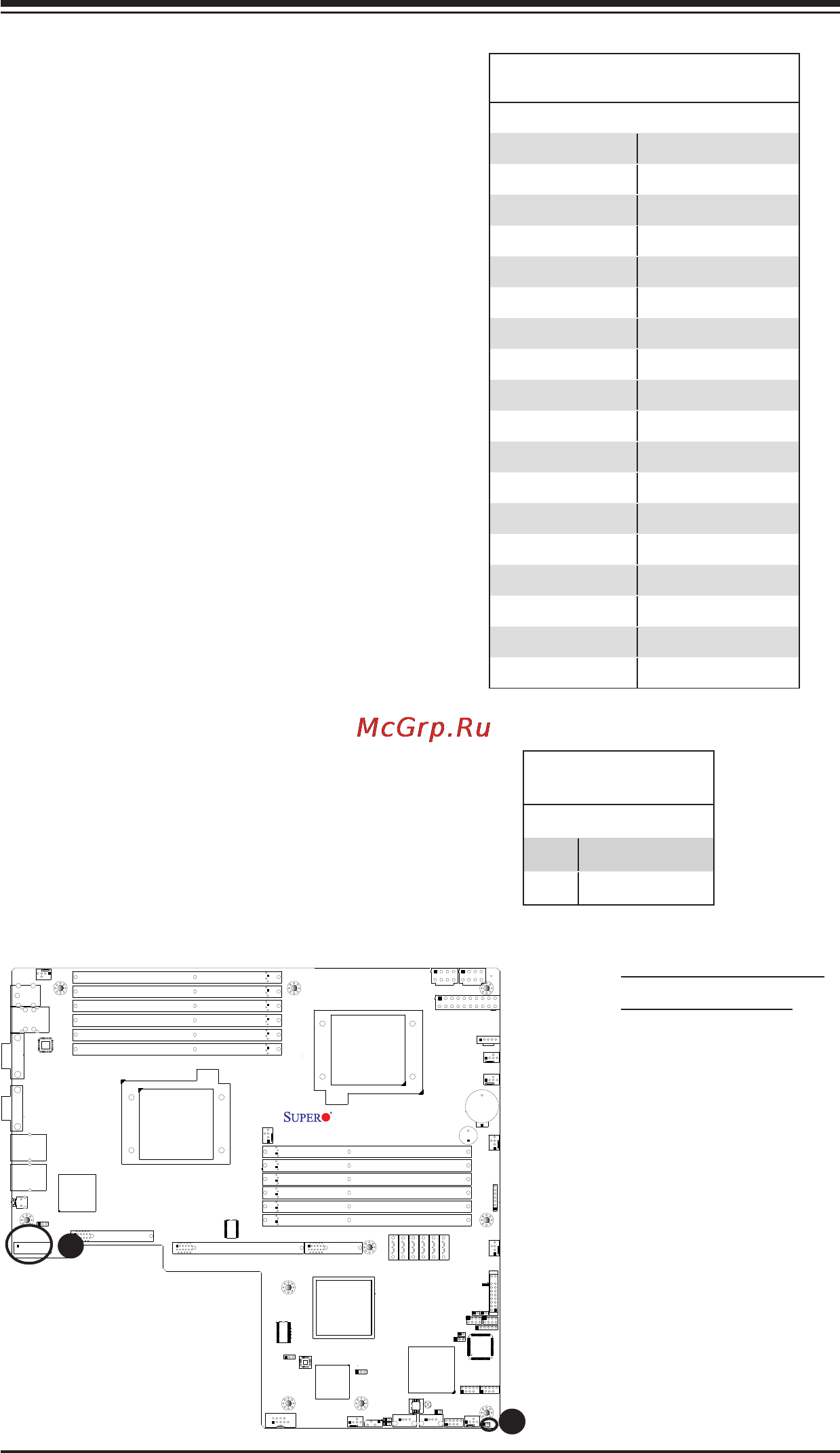

Chassis Intrusion
A Chassis Intrusion header is located
at JL1 on the motherboard. Attach an
appropriate cable from the chassis to
inform you of a chassis intrusion when
the chassis is opened.
Chassis Intrusion
PinDenitions(JL1)
Pin# Denition
1 Intrusion Input
2 Ground
A
B
A. UIO PWR Connector
B. Chassis Intrusion
UIO Riser_Card Power Connector
In addition to the Primary 20-pin
power connector and the 8-pin CPU
PWR connectors, the Universal IO
Power Connector (UIOP) located at
J10 is also required for the riser cards
installed on the motherboard. This
power connector is used to provide
power to the riser card. See the table
on the right for pin denitions.
Universal IO PWR Connector
PinDenitions
Pin# Denition Pin # Denition
B1 P5V A1 P3V3
B2 P5V A2 P3V3
B3 P5V A3 P3V3
B4 P5V A4 P3V3
B5 P5V A5 P3V3
B6 P5V A6 P3V3
B7 P5V A7 P3V3
B8 P5V A8 P3V3
B9 P5V A9 P3V3
B10 P5V A10 P3V3
B11 N12V A11 P3V3
B12 P3V3 STBY A12 P3V3
B13 P3V3 STBY A13 P12V
B14 Ground A14 P12V
B15 Ground A15 P12V
B16 Ground A16 P12V
B17 Ground A17 P12V
B18 Ground A18 Ground
