Connecting the satellites to the subwoofer
• Before connecting, make sure that the device is unplugged. Join the connection cables as shown
in Fig. 5. Please note that the red (+) terminals of the satellites should be connected to the red
terminals of the subwoofer (+ о +), while the black (–) terminals of the satellites should be
connected to the black terminals of the subwoofer (–
о
–).
• Check for correctness of polarity connection and absence of contact between bared wires and
with metal parts of equipment.
Connecting an audio source
BTR5-10 5.1 Home Theater Speaker System can be connected to virtually any audio source (see
connection diagram, Fig. 6).
• Before connecting, make sure that the device is unplugged.
• To connect the speakers to a CD/DVD/VHS-player or TV, use the 2RCA to 2RCA stereo signal
cables. To connect the HTSS to a PC sound card or an ǀDŽ3/CD player, use the 2RCA to 2RCA sig-
nal cable together with the included 2RCA to 3.5 mm mini-jack adapter.
FR
FL
CEN
SR
SL
FRFL
SRSL
SWCEN
AUX
PC
DVD(5.1CH) INPUT 2CH INPUTAUDIO OUTPUT
CEN
Rear left satellite Rear right satellite
Centrer channel
satellite
Front left satellite Front right satellite
Subwoofer
rear panel

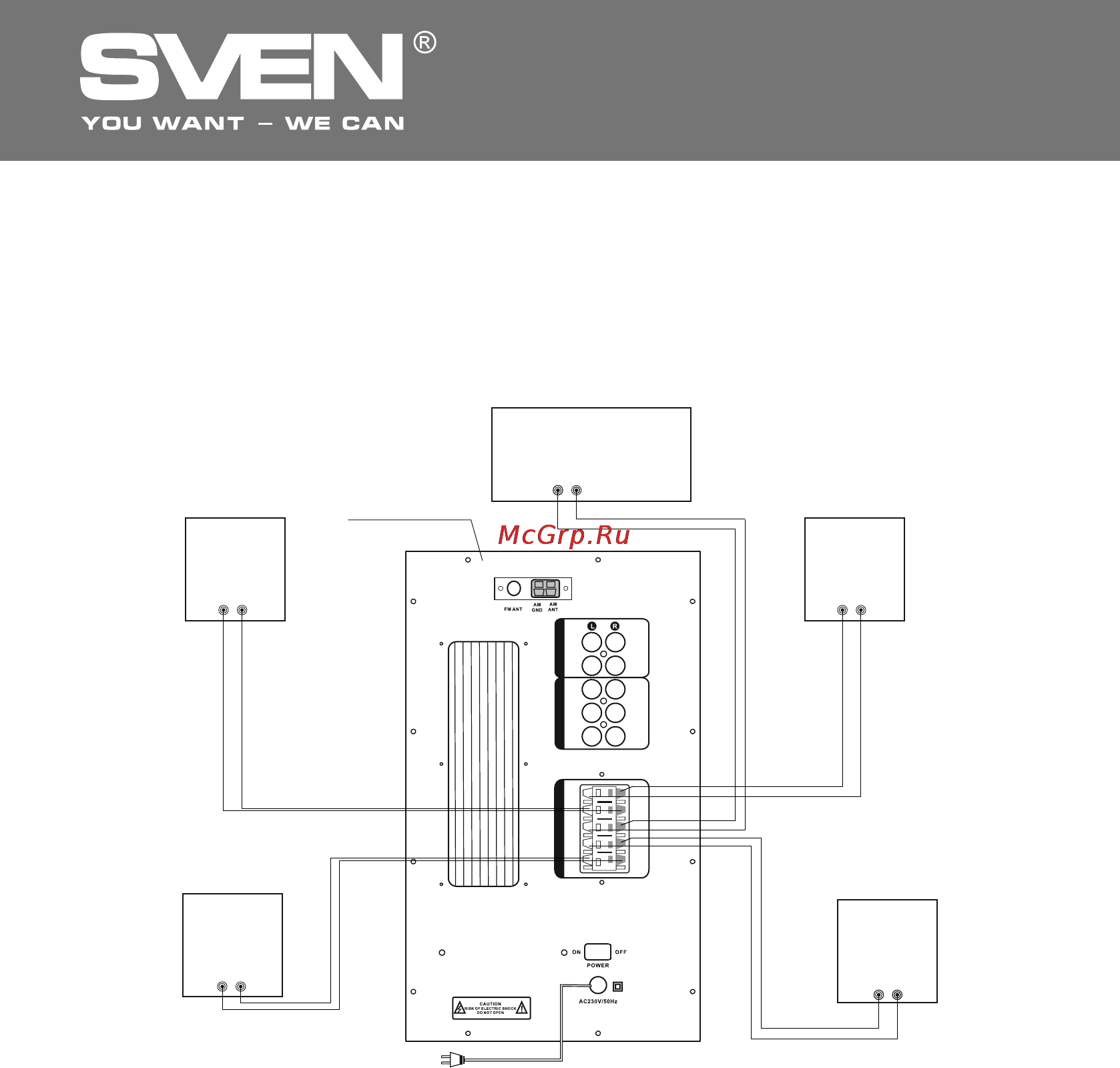

Fig. 5. Speakers connection diagram
ENG
30
5.1 Active Home Theater
Speaker System
