Page 9

Note: 12 volt DC power is available on pin 9 of the VGA connector and

can be available through BIOS setting.

Serial Port – COM1

Please always occupy COM1 serial port by a suitable serial device or this

terminator. If this port is left vacant or connected with something like a mouse,

the power switch management and the cash drawer control may fail to work

correctly. As well as an RS232 MODEM is not applicable to this port.

LED INDICATORS (for HT-3200 only)

On bottom rim center of HT-3200 system cashier LCD panel, there are 2 LED

indicators. The LED at right indicates the LAN status. When it lights up in

green, the onboard LAN chip is linked. When it flashes in yellow, data

transmission in LAN is in process. The LAN status indication is also

observable on the LAN connector in main connection area. The LED at left

indicates Power/Stand-By status.

POWER ON/OFF CONTROL

The HT/PB-3200 terminal implements electronic power control, such that the

main power to the system may be controlled by many methods as below:

1. Hardware power switch

2. Software OFF command

3. Automatic power ON control

4. Emergency power OFF

Hardware Power Switch

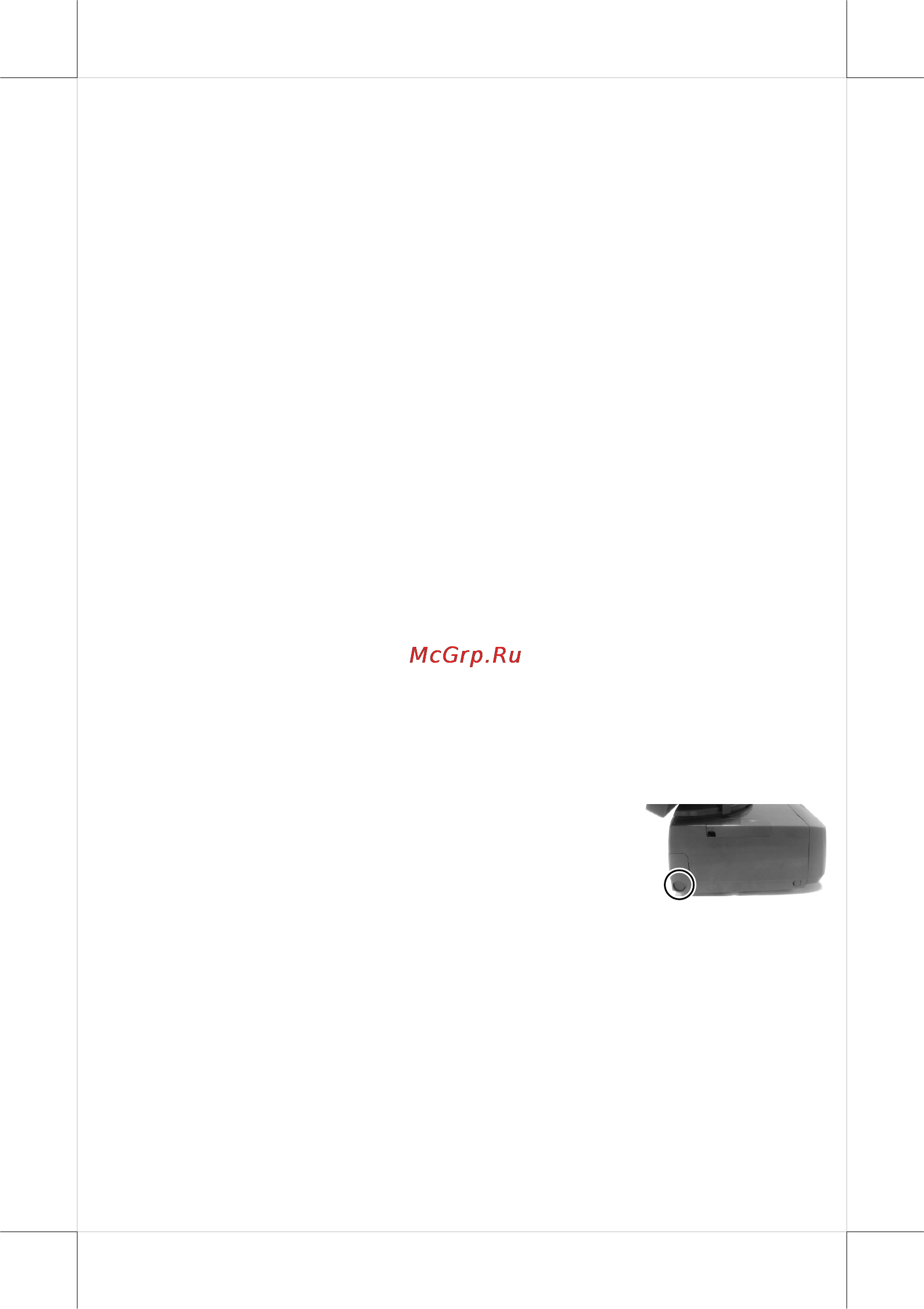

This button is located at bottom front corner of right side

as in right picture and can be used to turn the system on

and off alternatively. When this option is installed, this

hardware switch can also be programmed to be an ON

only switch through software command so that when this switch is accidentally

pressed during system turned on, the system just remains on and unaffected.

Software Off Command

The system may also be shut down under software control. Please just follow

the arrangement by your system integrator for this capability.

Automatic Power On Control

The system may also turn on according to some preset conditions such as
