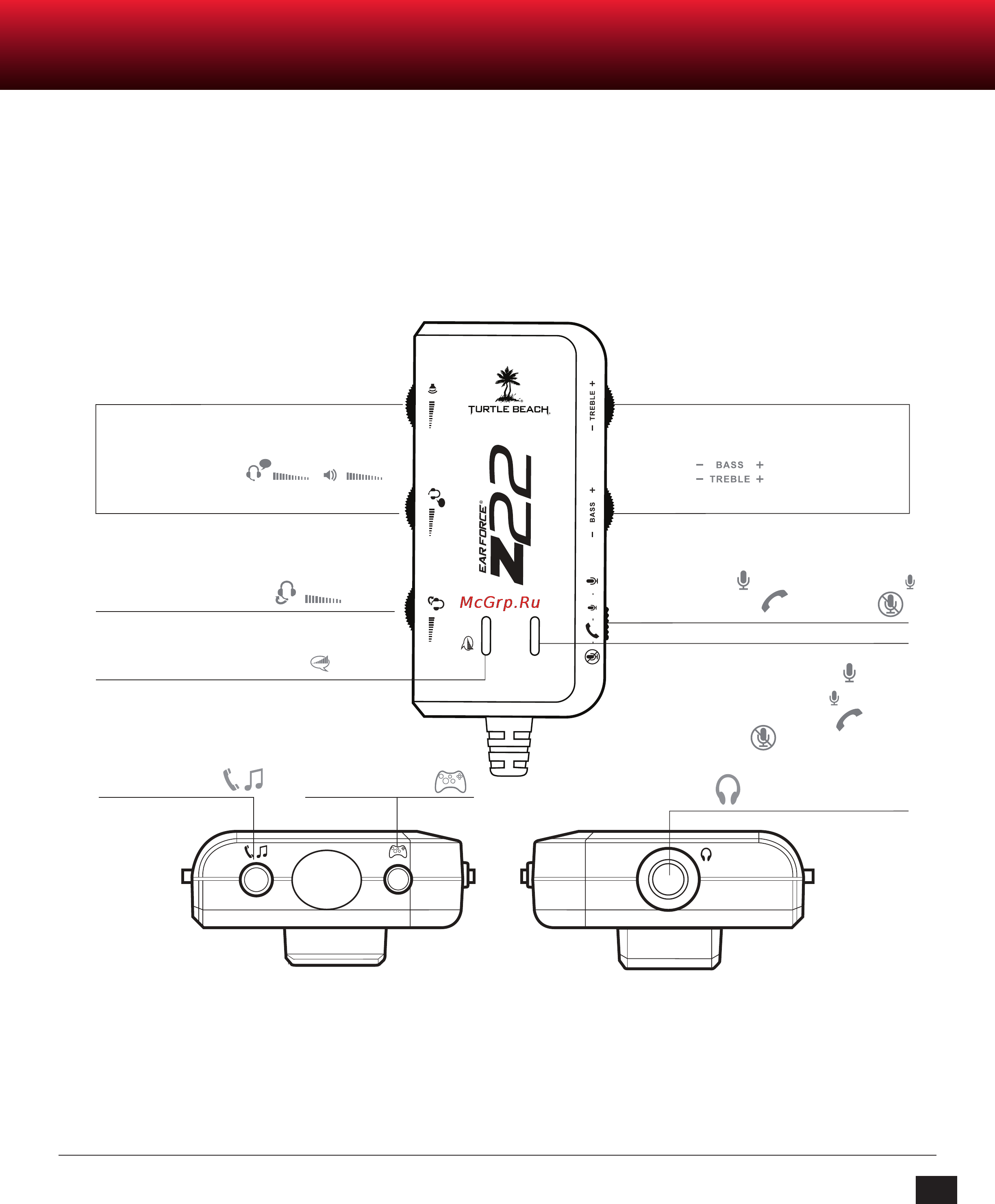

Ampliﬁer Function Map / Use

Inline Ampliﬁer

MODE SWITCH

Headset Output Jack

Aux Input for

Phone & Music *Xbox Chat Input

Bottom View Top View

Chat & Game

Volume Controls

Variable Mic Monitor

Bass &

Treble Controls

Chat Boost Indicator LED

Mic Switch:

Mic On (High) Mic On (Low)

Phone Call Mode Mic Mute

Mic Mute Indicator LED:

Bright blue = Mic On (High),

Dark blue = Mic On (Low),

Purple = Phone Call Mode,

Red = Mic Mute

* For Xbox LIVE chat, an Xbox 360 Talkback Cable (not included) is required. For Xbox 360 game audio, a 3.5 mm Female to RCA Splitter Cable

and an Xbox 360 Audio Adapter are also required. These cables are available at: http://www.TurtleBeach.com/parts
