Administrator‘s Guide for Yealink VC110 Video Conferencing Endpoint
10

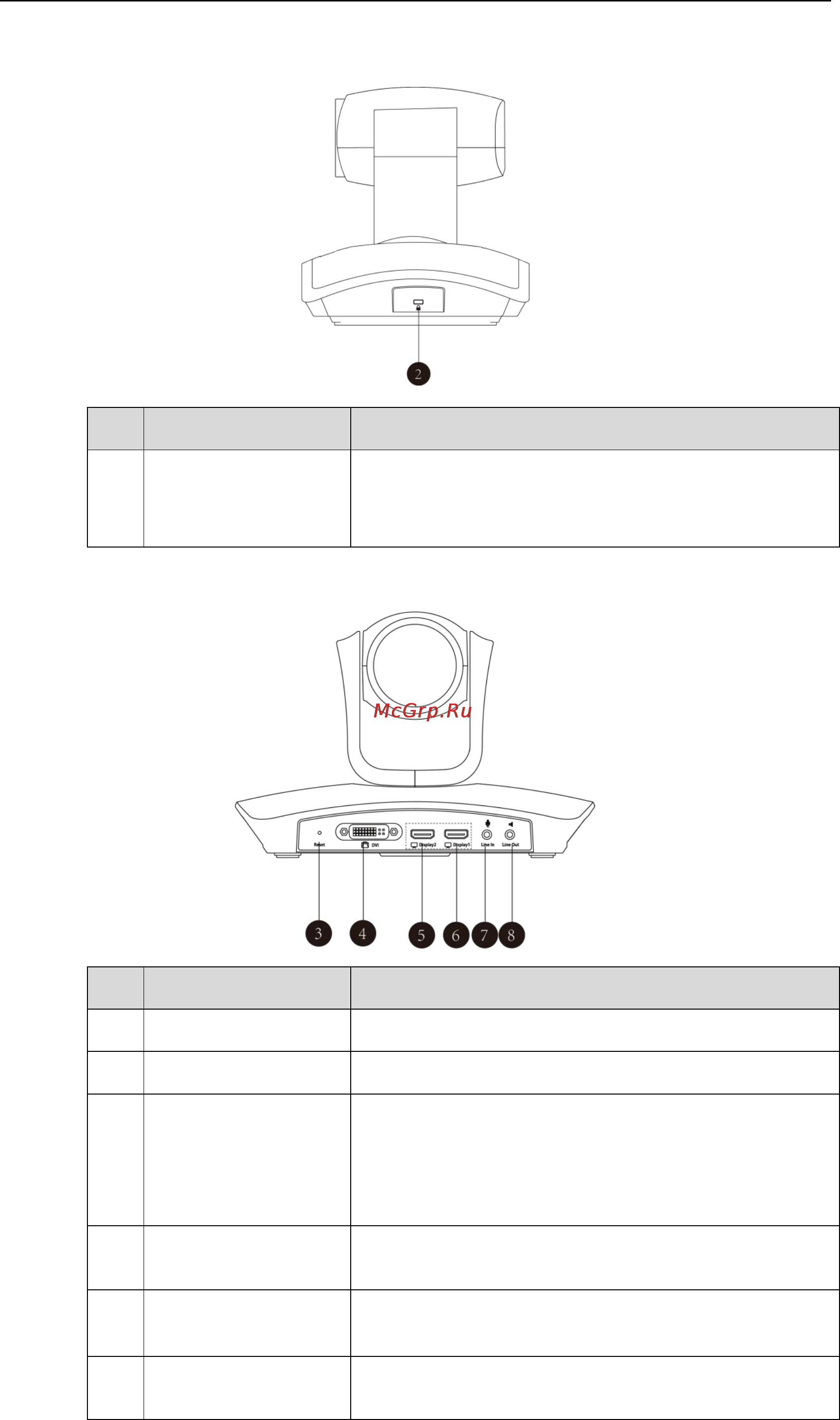

The left side of the VC110 all-in-one unit
Port Name
Description
②
Security Slot
Allows you to connect a universal security cable to
VC110 all-in-one unit, so you can lock it down. The
endpoint cannot be removed when locked.
The back of VC110 all-in-one unit
Port Name
Description
③
Reset Key
Resets the endpoint to factory defaults.
④
DVI Port
Connects to the cable hub.
⑤
Display1
Connects to a display device for displaying video
images.
When connecting to only one display device, Display1
port on the VC110 all-in-one unit is the only available
port.
⑥
Display 2
Connects to secondary display device for displaying
video images.
⑦
Line In
Connects to an audio input device using an audio
cable (3.5mm).
⑧
Line Out
Connects to an audio output device using an audio
cable (3.5mm).
